瑞斯克LVPECL时钟振荡器,CCPD-033-50-156.250,超低相位噪声晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CCPD-033系列晶振，编码为：CCPD-033-50-156.250，频率：156.250MHz，小体积晶振尺寸：7.0x5.0x1.8mm封装，时钟振荡器，六脚贴片晶振，LVPECL输出差分晶振，差分晶体振荡器，有源晶振，石英晶体振荡器，SMD晶振，工作电压：3.3V。该振荡器采用了高Q第三泛音晶体设计，提供了非常低的抖动和相位噪声。输出信号中没有子谐波。具有超小型，轻薄型，低抖动，低相位噪声，低功耗，低耗能，低损耗，低电源电压，高精度，高性能，高品质等特点。石英晶振，应用：数字视频，SONET/SDH/DWDM，存储区域网络，宽带接入，以太网，千兆以太网，通讯设备，光纤通道等应用。

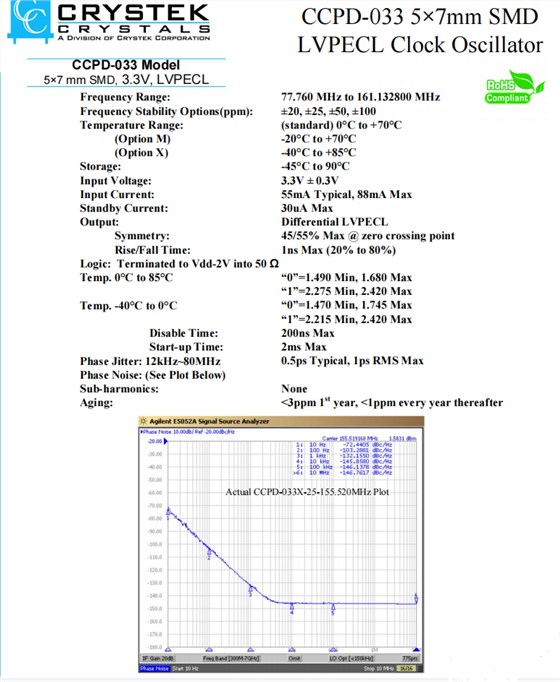

瑞斯克LVPECL时钟振荡器,CCPD-033-50-156.250,超低相位噪声晶振,参数表
Frequency Range:
156.250 MHz
Frequency Stability Options(ppm):
±20, ±25, ±50, ±100
Temperature Range:
(standard) 0°C to +70°C
(Option M)
-20°C to +70°C
(Option X)
-40°C to +85°C
Storage:
-45°C to 90°C
Input Voltage:
3.3V ± 0.3V
Input Current:
55mA Typical, 88mA Max
Standby Current:
30uA Max
Output:
Differential LVPECL
Symmetry:
45/55% Max @ zero crossing point
Rise/Fall Time:
1ns Max (20% to 80%)
Output Drive Capability (see Note 1)
Zero Impedance Bipolar Process
Logic:
Terminated to Vdd-2V into 50Ω
Temp. 0°C to 85°C
“0”=1.490 Min, 1.680 Max
“1”=2.275 Min, 2.420 Max
Temp. -40°C to 0°C
“0”=1.470 Min, 1.745 Max
“1”=2.215 Min, 2.420 Max
Disable Time:
200ns Max
Start-up Time:
2ms Max
Phase Jitter: 12kHz~80MHz
0.5ps Typical, 1ps RMS Max
Phase Noise: (See Plot Below)
Sub-harmonics:
None
Aging:
<3ppm 1styear, <1ppm every year thereafter

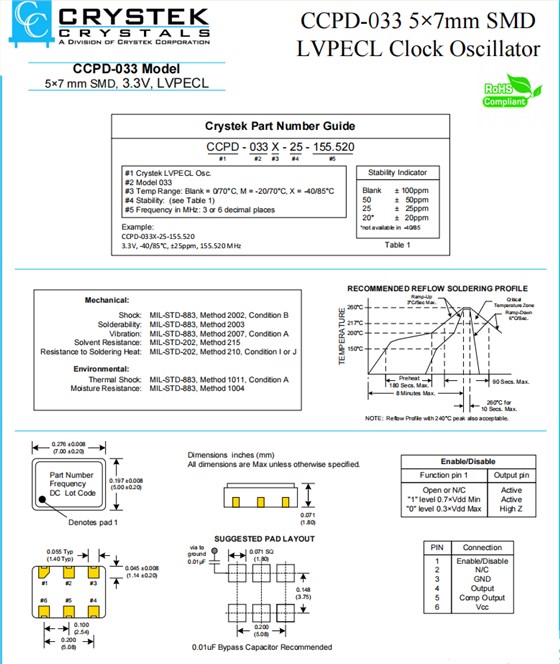

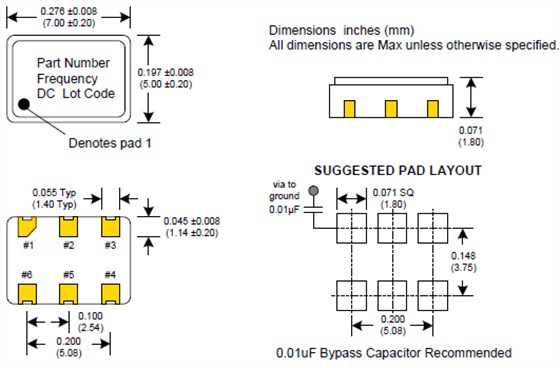

瑞斯克LVPECL时钟振荡器,CCPD-033-50-156.250,超低相位噪声晶振,尺寸图

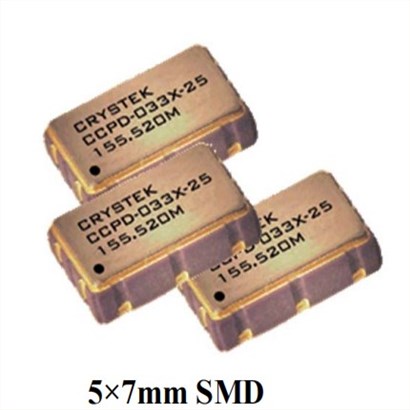

瑞斯克LVPECL时钟振荡器,CCPD-033-50-156.250,超低相位噪声晶振
产品特点：
型号CCPD-033是一个77.760 MHz到161.132800 MHz的LVPECL时钟振荡器，工作在3.3V。该石英晶体振荡器采用了高Q第三泛音晶体设计，提供了非常低的抖动和相位噪声。输出信号中没有子谐波。应用范围：数字视频声波仪/SDH/DWDM存储区域网络宽带接入以太网、千兆以太网
| 晶振编码 | 品牌 | 型号 | 类型 | 频率 | 频率稳定度 | 工作温度 |
| CCPD-033-50-100.000 | Crystek晶振 | CCPD-033 | XO (Standard) | 100MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033-50-156.250 | Crystek晶振 | CCPD-033 | XO (Standard) | 156.25MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033-50-161.1328 | Crystek晶振 | CCPD-033 | XO (Standard) | 161.1328MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-034-50-200.000 | Crystek晶振 | CCPD-034 | XO (Standard) | 200MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033-50-77.760 | Crystek晶振 | CCPD-033 | XO (Standard) | 77.76MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033-50-106.250 | Crystek晶振 | CCPD-033 | XO (Standard) | 106.25MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033X-50-77.760 | Crystek晶振 | CCPD-033 | XO (Standard) | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033X-25-77.76 | Crystek晶振 | CCPD-033 | XO (Standard) | 77.76MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-033X-50-100.00 | Crystek晶振 | CCPD-033 | XO (Standard) | 100MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033-50-125.000 | Crystek晶振 | CCPD-033 | XO (Standard) | 125MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033X-25-100 | Crystek晶振 | CCPD-033 | XO (Standard) | 100MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-033X-50-106.250 | Crystek晶振 | CCPD-033 | XO (Standard) | 106.25MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033X-50-125.000 | Crystek晶振 | CCPD-033 | XO (Standard) | 125MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033X-25-106.25 | Crystek晶振 | CCPD-033 | XO (Standard) | 106.25MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-033X-25-125 | Crystek晶振 | CCPD-033 | XO (Standard) | 125MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-033-50-155.520 | Crystek晶振 | CCPD-033 | XO (Standard) | 155.52MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-033M-50-156.250 | Crystek晶振 | CCPD-033 | XO (Standard) | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| CCPD-033X-50-155.520 | Crystek晶振 | CCPD-033 | XO (Standard) | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033X-50-156.250 | Crystek晶振 | CCPD-033 | XO (Standard) | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033X-25-155.520 | Crystek晶振 | CCPD-033 | XO (Standard) | 155.52MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-033X-25-156.25 | Crystek晶振 | CCPD-033 | XO (Standard) | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-033X-50-161.1328 | Crystek晶振 | CCPD-033 | XO (Standard) | 161.1328MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-033X-25-161.1328 | Crystek晶振 | CCPD-033 | XO (Standard) | 161.1328MHz | ±25ppm | -40°C ~ 85°C |
| CCPD-034-50-212.500 | Crystek晶振 | CCPD-034 | XO (Standard) | 212.5MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-034M-50-212.500 | Crystek晶振 | CCPD-034 | XO (Standard) | 212.5MHz | ±50ppm | -20°C ~ 70°C |
| CCPD-034X-50-200.000 | Crystek晶振 | CCPD-034 | XO (Standard) | 200MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-034X-50-212.500 | Crystek晶振 | CCPD-034 | XO (Standard) | 212.5MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-034-50-250.000 | Crystek晶振 | CCPD-034 | XO (Standard) | 250MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-034M-50-245.760 | Crystek晶振 | CCPD-034 | XO (Standard) | 245.76MHz | ±50ppm | -20°C ~ 70°C |
| CCPD-034M-50-250 | Crystek晶振 | CCPD-034 | XO (Standard) | 250MHz | ±50ppm | -20°C ~ 70°C |
| CCPD-034X-50-250.000 | Crystek晶振 | CCPD-034 | XO (Standard) | 250MHz | ±50ppm | -40°C ~ 85°C |
| CCPD-034-50-311.040 | Crystek晶振 | CCPD-034 | XO (Standard) | 311.04MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-034-50-312.500 | Crystek晶振 | CCPD-034 | XO (Standard) | 312.5MHz | ±50ppm | 0°C ~ 70°C |
| CCPD-034-400.000 | Crystek晶振 | CCPD-034 | XO (Standard) | 400MHz | ±100ppm | 0°C ~ 70°C |
| CCPD-034M-50-311.040 | Crystek晶振 | CCPD-034 | XO (Standard) | 311.04MHz | ±50ppm | -20°C ~ 70°C |
| CCPD-034X-50-311.040 | Crystek晶振 | CCPD-034 | XO (Standard) | 311.04MHz | ±50ppm | -40°C ~ 85°C |
