CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振

CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振

产品简介

CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振,日本进口晶振,CITIEZEN晶振,西铁城晶振,型号:CSX532T贴片晶振,编码为:CSX532T26.000M2-UT10,频率为:26 MHz,工作电压范围:2.4V~3.0V,是一款小体积晶振尺寸:5.0x3.2x1.5mm封装,四脚贴片晶振,TCXO温补晶振,有源晶振,石英晶振,石英晶体振荡器,温度补偿晶振。具有超小型晶振,轻薄型晶振,低抖动晶振,低功耗晶振,低电源电压晶振,低相位噪声晶振,低耗能晶振,低损耗晶振,低电平等特点,应用于:通讯设备晶振,无线网络晶振,蓝牙模块晶振,物联网晶振,GPS定位系统晶振,导航仪晶振,室外基站控制器,罗拉LORA模块等应用。

产品详情

20180418113217_9370CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振,日本进口晶振,CITIEZEN晶振,西铁城晶振,型号:CSX532T贴片晶振,编码为:CSX532T26.000M2-UT10,频率为:26 MHz,工作电压范围:2.4V~3.0V,是一款小体积晶振尺寸:5.0x3.2x1.5mm封装,四脚贴片晶振,TCXO温补晶振,有源晶振,石英晶振,石英晶体振荡器,温度补偿晶振。具有超小型晶振,轻薄型晶振,低抖动晶振,低功耗晶振,低电源电压晶振,低相位噪声晶振,低耗能晶振,低损耗晶振,低电平等特点,应用于:通讯设备晶振,无线网络晶振,蓝牙模块晶振,物联网晶振,GPS定位系统晶振,导航仪晶振,室外基站控制器,罗拉LORA模块等应用。

20180421171456_6296统一

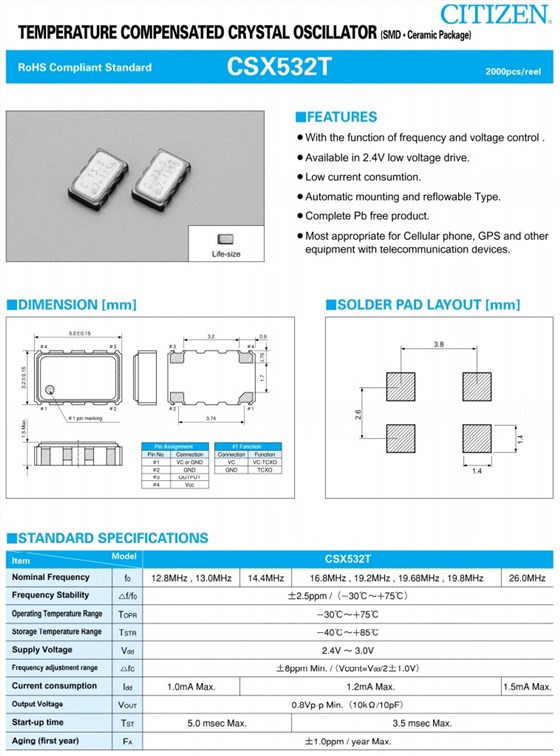

CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振,参数表

型号 CSX532T (TCXO)
标准频率 26 MHz
频率范围 12.8MHz/13.0MHz/14.4MHz/16.8MHz/19.2MHz/19.8MHz/26.0MHz
电源电压范围 +2.4~+3.0V
电源电压(Vcc) +1.8V/+2.6V/+2.8V/+3.0V/+3.3V
消耗电流 +1.5mA max.(f≦26MHz)/+2.0mA max.(26<f≦52MHz)
待机时电流 -
输出电压 0.8Vp-p min.(f≦52MHz)(削峰正弦波/DC-coupled)
输出负载 10kΩ//10pF
频率稳定度 常温偏差 ±1.5×10-6max.(After 2 reflows)
温度特性 ±0.5×10-6,±2.5×10-6max./-30~+85℃
±0.5×10-6,±2.5×10-6max./-40~+85℃(Option)
电源电压特性 ±0.2×10-6max.(VCC±5%)
负载变化特性 ±0.2×10-6max.(10kΩ//10pF±10%)
长期变化 ±1.0×10-6max./year
频率控制 控制灵敏度 -
频率控制极性 -
启动时间 2.0ms max.

320181130160053_3983统一

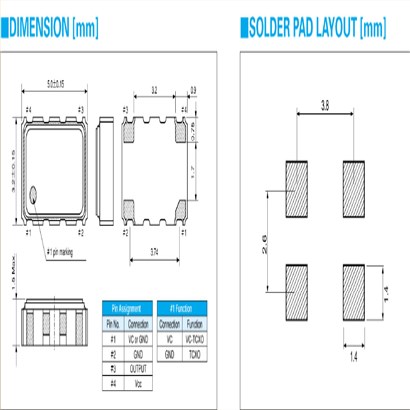

CSX532T,CSX532T26.000M2-UT10,5032mm,26MHz,Citizen导航仪晶振,尺寸图

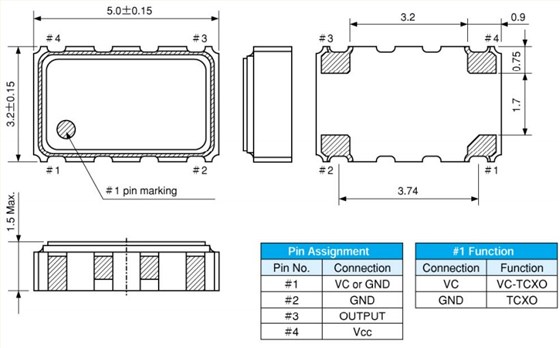

CSX532T尺寸

CSX532T规格

品牌 晶振资料 型号 频率 类型 电源电压
Citizen晶振 CSX532T19.800M3-U10 CSX532T 19.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T19.800M2-U10 CSX532T 19.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T13.000M2-UT10 CSX532T 13MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T16.800M2-UT10 CSX532T 16.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T19.200M2-UT10 CSX532T 19.2MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T26.000M2-UT10 CSX532T 26MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T13.000M3-UT10 CSX532T 13MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T16.800M3-UT10 CSX532T 16.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T19.200M3-UT10 CSX532T 19.2MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T26.000M3-UT10 CSX532T 26MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T16.3676M2-UT-10 CSX532T 16.3676MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T16.3676M3-UT-10 CSX532T 16.3676MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T24.5535M2-UT-10 CSX532T 24.5535MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T24.5535M3-UT-10 CSX532T 24.5535MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T12.800M2-UT10 CSX532T 12.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T12.800M3-UT10 CSX532T 12.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T13.000M1-UT10 CSX532T 13MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T16.000M2-UT10 CSX532T 16MHz TCXO 2.4 V ~ 3 V
石英晶振 CSX532T16.000M3-UT10 CSX532T 16MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T19.680M3-UT10 CSX532T 19.68MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T19.800M2-UT10 CSX532T 19.8MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T20.000M2-UT10 CSX532T 20MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T20.000M3-UT10 CSX532T 20MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX532T26.000M1-UT10 CSX532T 26MHz TCXO 2.4 V ~ 3 V
Citizen晶振 CSX325T13.000M2-UT10 CSX-325T 13MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T13.000M3-UT10 CSX-325T 13MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T16.000M2-UT10 CSX-325T 16MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T16.000M3-UT10 CSX-325T 16MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T19.200M2-UT10 CSX-325T 19.2MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T19.200M3-UT10 CSX-325T 19.2MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T26.000M2-UT10 CSX-325T 26MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T26.000M3-UT10 CSX-325T 26MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T33.600M2-UT10 CSX-325T 33.6MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T33.600M3-UT10 CSX-325T 33.6MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T38.400M2-UT10 CSX-325T 38.4MHz TCXO 1.8 V ~ 3 V
Citizen晶振 CSX325T38.400M3-UT10 CSX-325T 38.4MHz TCXO 1.8 V ~ 3 V
