CWX813-033.0M,7050mm,ConnorWinfield时钟振荡器,低抖动晶振

产品简介

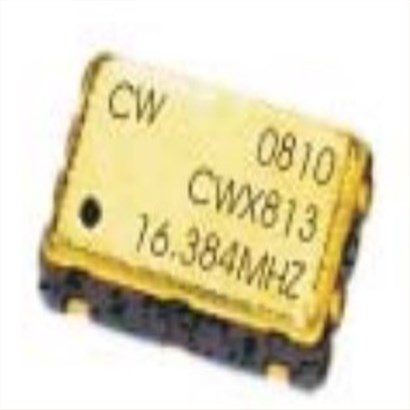

CWX813-033.0M,7050mm,ConnorWinfield时钟振荡器,低抖动晶振，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX813-033.0M，频率为：33MHz，工作电压3.3V，CMOS输出晶振，工作温度范围：-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm表面安装，四脚贴片晶振，有源晶振，固定频率晶体控制振荡器（XO）。设计用于需要紧密的频率稳定性和低抖动的应用程序。表面安装包是设计为高密度安装，是最佳的大规模生产。符合RoHS标准，应用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，GPS定位系统，物联网等应用。

产品详情

CWX813-033.0M,7050mm,ConnorWinfield时钟振荡器,低抖动晶振,参数表

型号	CWX813
频率	33 MHz
电源电压	3.3V
输入电压	Vcc+0.5
输出	CMOS
工作温度	-20 °C ~ +70 °C
保存温度	-55 °C ~ +125 °C

CWX813-033.0M,7050mm,ConnorWinfield时钟振荡器,低抖动晶振,尺寸图

CWX813，CWX823,CWX815,CWX825

原厂代码	品牌	型号	频率	工作温度
CWX813-024.0M	ConnorWinfield晶振	CWX813	24MHz	-20°C ~ 70°C
CWX813-012.0M	ConnorWinfield晶振	CWX813	12MHz	-20°C ~ 70°C
CWX813-018.432M	ConnorWinfield晶振	CWX813	18.432MHz	-20°C ~ 70°C
CWX813-001.8432M	ConnorWinfield晶振	CWX813	1.8432MHz	-20°C ~ 70°C
CWX813-007.3728M	ConnorWinfield晶振	CWX813	7.3728MHz	-20°C ~ 70°C
CWX813-010.0M	ConnorWinfield晶振	CWX813	10MHz	-20°C ~ 70°C
CWX813-025.0M	ConnorWinfield晶振	CWX813	25MHz	-20°C ~ 70°C
CWX813-027.0M	ConnorWinfield晶振	CWX813	27MHz	-20°C ~ 70°C
CWX813-033.0M	ConnorWinfield晶振	CWX813	33MHz	-20°C ~ 70°C
CWX813-040.0M	ConnorWinfield晶振	CWX813	40MHz	-20°C ~ 70°C
CWX813-060.0M	5070晶体振荡器	CWX813	60MHz	-20°C ~ 70°C
CWX813-004.0M	ConnorWinfield晶振	CWX813	4MHz	-20°C ~ 70°C
CWX813-016.0M	ConnorWinfield晶振	CWX813	16MHz	-20°C ~ 70°C
CWX813-080.0M	ConnorWinfield晶振	CWX813	80MHz	-20°C ~ 70°C
CWX813-064.0M	ConnorWinfield晶振	CWX813	64MHz	-20°C ~ 70°C
CWX813-100.0M	ConnorWinfield晶振	CWX813	100MHz	-20°C ~ 70°C
CWX813-044.736M	ConnorWinfield晶振	CWX813	44.736MHz	-20°C ~ 70°C
CWX813-012.288M	ConnorWinfield晶振	CWX813	12.288MHz	-20°C ~ 70°C
CWX813-019.44M	ConnorWinfield晶振	CWX813	19.44MHz	-20°C ~ 70°C
CWX813-024.576M	ConnorWinfield晶振	CWX813	24.576MHz	-20°C ~ 70°C
CWX813-030.0M	ConnorWinfield晶振	CWX813	30MHz	-20°C ~ 70°C
CWX813-020.0M	ConnorWinfield晶振	CWX813	20MHz	-20°C ~ 70°C
CWX813-020.48M	ConnorWinfield晶振	CWX813	20.48MHz	-20°C ~ 70°C
CWX813-049.152M	ConnorWinfield晶振	CWX813	49.152MHz	-20°C ~ 70°C
CWX813-050.0M	ConnorWinfield晶振	CWX813	50MHz	-20°C ~ 70°C
CWX813-029.4912M	ConnorWinfield晶振	CWX813	29.4912MHz	-20°C ~ 70°C
CWX813-066.6666M	ConnorWinfield晶振	CWX813	66.6666MHz	-20°C ~ 70°C
CWX813-001.544M	ConnorWinfield晶振	CWX813	1.544MHz	-20°C ~ 70°C
CWX813-016.384M	ConnorWinfield晶振	CWX813	16.384MHz	-20°C ~ 70°C
CWX813-072.0M	ConnorWinfield晶振	CWX813	72MHz	-20°C ~ 70°C
CWX813-014.31818M	ConnorWinfield晶振	CWX813	14.31818MHz	-20°C ~ 70°C
CWX813-015.36M	ConnorWinfield晶振	CWX813	15.36MHz	-20°C ~ 70°C
CWX813-045.0M	ConnorWinfield晶振	CWX813	45MHz	-20°C ~ 70°C
CWX813-003.6864M	ConnorWinfield晶振	CWX813	3.6864MHz	-20°C ~ 70°C
CWX813-008.0M	ConnorWinfield晶振	CWX813	8MHz	-20°C ~ 70°C
CWX813-032.0M	ConnorWinfield晶振	CWX813	32MHz	-20°C ~ 70°C
CWX813-032.768M	ConnorWinfield晶振	CWX813	32.768MHz	-20°C ~ 70°C
CWX813-033.333M	ConnorWinfield晶振	CWX813	33.333MHz	-20°C ~ 70°C
