Crystek差分晶体振荡器,CCPD-912X-25-161.1328,电信应用晶振

产品简介

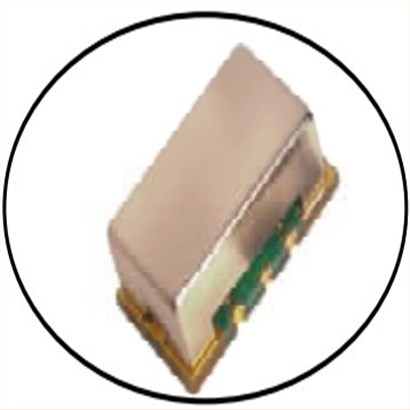

Crystek差分晶体振荡器,CCPD-912X-25-161.1328,电信应用晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CCPD-912系列晶振，编码为：CCPD-912X-25-161.1328，频率：161.1328MHz，小体积晶振尺寸：9x14mm封装，LVPECL输出差分晶振，时钟振荡器，有源晶振，六脚贴片晶振，差分晶体振荡器，石英晶体振荡器，SMD晶振，工作电压：3.3V。具有超小型，轻薄型，低抖动，低相位噪声，低功耗，低耗能，低损耗，低电源电压，低电平等特点。应用：数字视频，SONET/SDH/DWDM，存储区域网络，宽带接入，以太网，千兆以太网，通讯设备，光纤通道等应用。进口晶振，设计，以满足今天的3.3V差动LVPECL应用程序的要求。CCPD-912是一个非常低的噪声，低抖动的时钟振荡器，用于要求很高的电信和其他应用。

产品详情

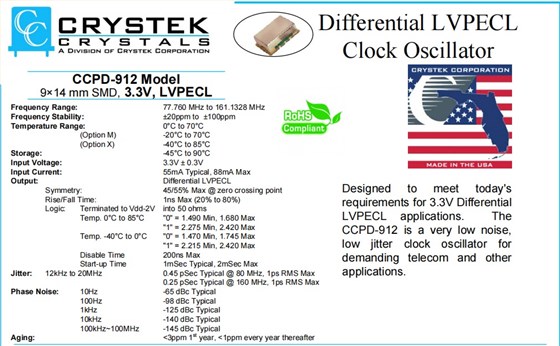

Crystek差分晶体振荡器,CCPD-912X-25-161.1328,电信应用晶振,参数表

Frequency Range:	161.1328MHz
Frequency Stability:	±20ppm to ±100ppm
Temperature Range:	0°C to 70°C
(Option M)	-20°C to 70°C
(Option X)	-40°C to 85°C
Storage:	-45°C to 90°C
Input Voltage:	3.3V ± 0.3V
Input Current:	55mA Typical, 88mA Max
Output:	Differential LVPECL
Symmetry:	45/55% Max @ zero crossing point
Rise/Fall Time:	1ns Max (20% to 80%)
Logic: Terminated to Vdd-2V	into 50 ohms
Temp. 0°C to 85°C	"0" = 1.490 Min, 1.680 Max
	"1" = 2.275 Min, 2.420 Max
Temp. -40°C to 0°C	"0" = 1.470 Min, 1.745 Max
	"1" = 2.215 Min, 2.420 Max
Disable Time	200ns Max
Start-up Time	1mSec Typical, 2mSec Max
Jitter：12kHz to 20MHz	0.45 pSec Typical @ 80 MHz, 1ps RMS Max
Phase Noise:	0.25 pSec Typical @ 160 MHz, 1ps RMS Max
10Hz	-65 dBc Typical
100Hz	-98 dBc Typical
1kHz	-125 dBc Typical
10kHz	-140 dBc Typical
100kHz~100MHz	-145 dBc Typical
Aging	<3ppm 1st year, <1ppm every year thereafter

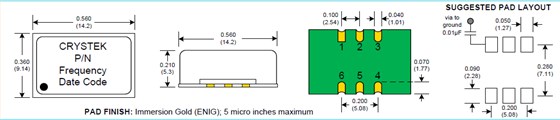

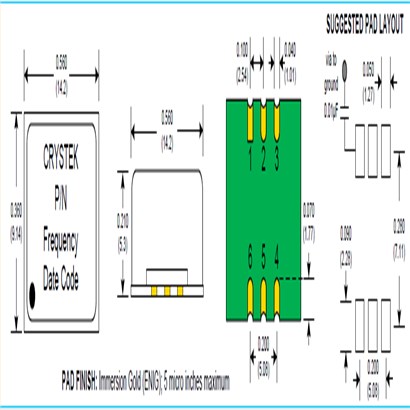

Crystek差分晶体振荡器,CCPD-912X-25-161.1328,电信应用晶振,尺寸图

石英晶振型号	品牌	型号	类型	频率	频率稳定度	工作温度
CCPD-575X-20-100.000	Crystek晶振	CCPD-575	XO (Standard)	100MHz	±20ppm	-40°C ~ 85°C
CCPD-575X-20-80.000	Crystek晶振	CCPD-575	XO (Standard)	80MHz	±20ppm	-40°C ~ 85°C
CCPD-575X-20-125.000	Crystek晶振	CCPD-575	XO (Standard)	125MHz	±20ppm	-40°C ~ 85°C
CCPD-915M-50-311.04	Crystek晶振	CCPD-915	XO (Standard)	311.04MHz	±50ppm	-20°C ~ 70°C
CCPD-912X-25-100	Crystek晶振	CCPD-912	XO (Standard)	100MHz	±25ppm	-40°C ~ 85°C
CCPD-912X-25-106.25	Crystek晶振	CCPD-912	XO (Standard)	106.25MHz	±25ppm	-40°C ~ 85°C
CCPD-912X-25-125	Crystek晶振	CCPD-912	XO (Standard)	125MHz	±25ppm	-40°C ~ 85°C
CCPD-912X-25-155.52	Crystek晶振	CCPD-912	XO (Standard)	155.52MHz	±25ppm	-40°C ~ 85°C
CCPD-912X-25-156.25	贴片晶振	CCPD-912	XO (Standard)	156.25MHz	±25ppm	-40°C ~ 85°C
CCPD-912X-25-161.1328	Crystek晶振	CCPD-912	XO (Standard)	161.1328MHz	±25ppm	-40°C ~ 85°C
CCPD-912X-25-77.76	Crystek晶振	CCPD-912	XO (Standard)	77.76MHz	±25ppm	-40°C ~ 85°C
CCPD-915-50-212.500	Crystek晶振	CCPD-915	XO (Standard)	212.5MHz	±50ppm	0°C ~ 70°C
CCPD-915M-50-212.5	Crystek晶振	CCPD-915	XO (Standard)	212.5MHz	±50ppm	-20°C ~ 70°C
CCPD-915M-50-245.76	Crystek晶振	CCPD-915	XO (Standard)	245.76MHz	±50ppm	-20°C ~ 70°C
CCPD-915M-50-250	Crystek晶振	CCPD-915	XO (Standard)	250MHz	±50ppm	-20°C ~ 70°C
