AXLE7050A-V-5-C-05-4F-24.000MHz,7050mm,AXTAL振荡器

产品简介

AXLE7050A‐V‐5‐C‐05‐4F-24.000MHz,7050mm,AXTAL振荡器，德国进口晶振，AXTAL晶振，型号：AXLE7050A石英晶振，编码为：AXLE7050A‐V‐5‐C‐05‐4F-24.000MHz，电源电压：5.0V，频率稳定性：±0.5ppm，工作温度范围：-40℃至+85℃，频率为：24.000MHz，小体积晶振尺寸：7.1x5.1x1.85mm封装，VCTCXO晶振，压控温补晶体振荡器，高稳定性SMD晶振，石英晶体振荡器，六脚贴片晶振，有源晶振。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压等特点。被广泛应用于：移动通讯设备晶振，无线蓝牙晶振，GPS晶振，物联网晶振，汽车电子晶振，导航仪等应用。

产品详情

20180421171456_6296统一

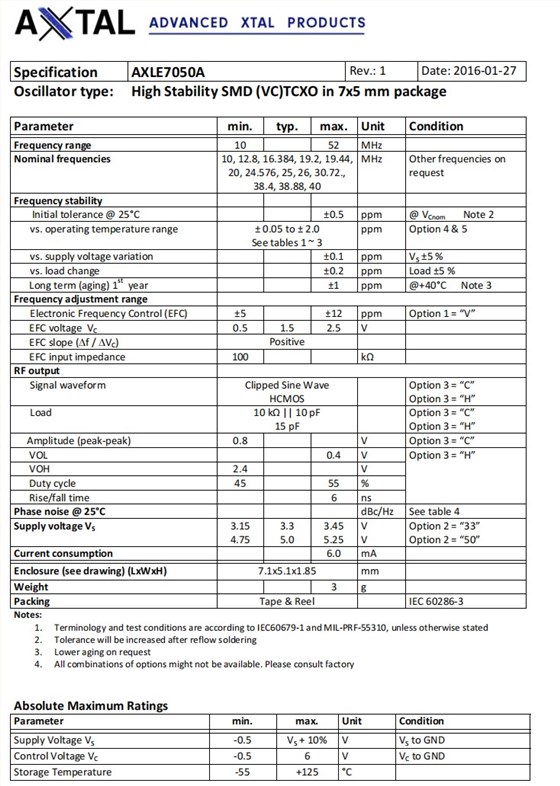

AXLE7050A‐V‐5‐C‐05‐4F-24.000MHz,7050mm,AXTAL振荡器参数表

Parameter	min.	typ.	max.	Unit	Condition
Frequencyrange	24			MHz
Nominalfrequencies	10, 12.8, 16.384, 19.2, 19.44,20, 24.576, 25, 26, 30.72,38.4, 38.88, 40			MHz	Otherfrequenciesonrequest
Frequencystability
Initialtolerance@25°C			±0.5	ppm	@VCnomNote2

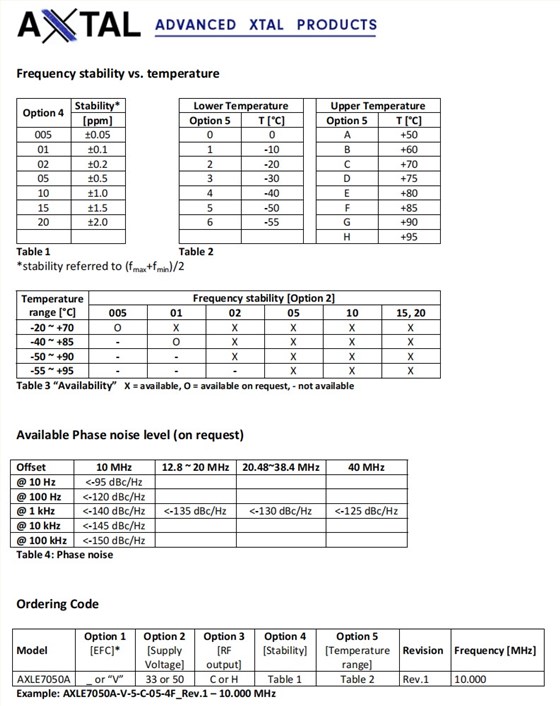

vs.operating temperaturerange	±0.05to±2.0Seetables1~3			ppm	Option4&5
vs.supplyvoltagevariation			±0.1	ppm	VS±5%
vs. loadchange			±0.2	ppm	Load±5%
Long term (aging) 1styear			±1	ppm	@+40°CNote3
Frequencyadjustmentrange
ElectronicFrequencyControl(EFC)	±5		±12	ppm	Option1=“V”
EFCvoltageVC	0.5	1.5	2.5	V
EFCslope(?f/?VC)	Positive
EFCinputimpedance	100			k?
RFoutput
Signalwaveform	ClippedSineWave				Option 3 = “C” Option 3 = “H”
Signalwaveform	HCMOS				Option 3 = “C” Option 3 = “H”
Load	10kΩ\|\|10pF				Option 3 = “C” Option 3 = “H”
Load	15pF				Option 3 = “C” Option 3 = “H”
Amplitude(peak-peak)	0.8			V	Option3=“C”
VOL			0.4	V	Option3=“H”
VOH	2.4			V
Dutycycle	45		55	%
Rise/falltime			6	ns
Phasenoise@25°C				dBc/Hz	See table4
RMSJitter(integrated)
SupplyvoltageVS	3.15	3.3	3.45	V	Option 2 = “33” Option 2 = “50”
SupplyvoltageVS	4.75	5	5.25	V	Option 2 = “33” Option 2 = “50”
Current consumption			6	mA

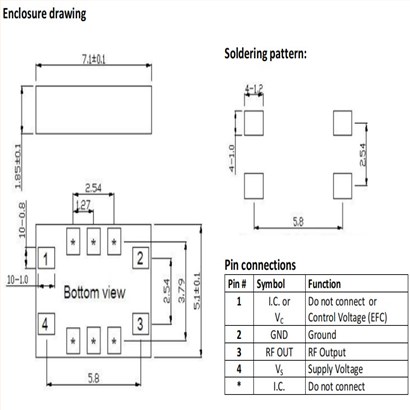

Enclosure(seedrawing)(LxWxH)		7.1x5.1x1.85		mm	Seedrawing
Weight			3	g
Packing	Tape&Reel				IEC60286-3
