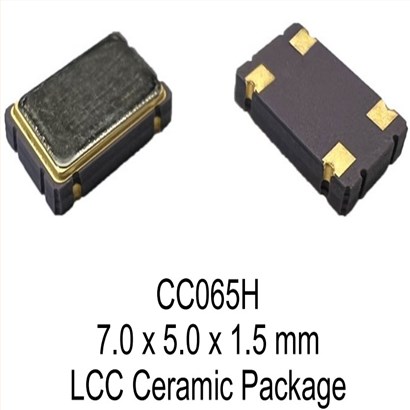

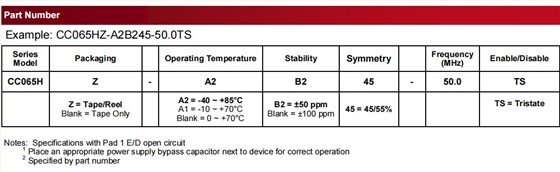

Cardinal有源晶振,CC065HZ-A2B245-50.0TS,以太网应用晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CC065H系列晶振，编码为：CC065HZ-A2B245-50.0TS，频率为：50.000MHz，小体积晶振尺寸：7.0x5.0x1.5mm封装，四脚贴片晶振，5070晶振，有源晶振，石英晶振，时钟振荡器，CMOS石英晶体振荡器，SMD晶振，电源电压5.0V，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，高精度，高性能，高品质，高质量，耐热及耐环特点。贴片晶振，应用于：驱动A/D、D/A、FPGA，数字视频，以太网，GbE，医学的，存储区域网络，帆布床，宽带接入，SONET/SDH/DWDM，基站/微微蜂窝，测试和测量等应用。

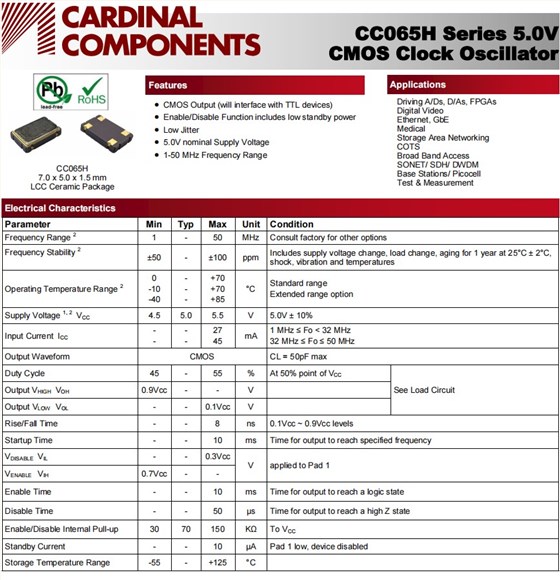

Cardinal有源晶振,CC065HZ-A2B245-50.0TS,以太网应用晶振参数表
Parameter
Min
Typ
Max
Unit
Condition
Frequency Range2
50
MHz
Consult factory for other options
Frequency Stability2
±50
-
±100
ppm
Includes supply voltage change, load change, aging for 1 year at 25°C ± 2°C,
shock, vibration and temperatures
Operating Temperature Range2
0
-10
-40
-
-
-
+70
+70
+85
°C
Standard range
Extended range option
Supply Voltage1, 2VCC
4.5
5.0
5.5
V
5.0V ± 10%
Input CurrentICC
-
-
-
-
27
45
mA
1 MHz ≤ Fo < 32 MHz
32 MHz ≤ Fo ≤ 50 MHz
Output Waveform
CMOS
CL = 50pF max
Duty Cycle
45
-
55
%
At 50% point of VCC
See Load Circuit
Output VHIGHVOH
0.9Vcc
-
-
V
Output VLOWVOL
-
-
0.1Vcc
V
Rise/Fall Time
-
-
8
ns
0.1Vcc ~ 0.9Vcc levels
Startup Time
-
-
10
ms
Time for output to reach specified frequency
VDISABLEVIL
-
-
0.3Vcc
V
applied to Pad 1
VENABLEVIH
0.7Vcc
-
-
Enable Time
-
-
10
ms
Time for output to reach a logic state
Disable Time
-
-
50
µs
Time for output to reach a high Z state
Enable/Disable Internal Pull-up
30
70
150
KΩ
To VCC
Standby Current
-
-
10
µA
Pad 1 low, device disabled
Storage Temperature Range
-55
-
+125
°C

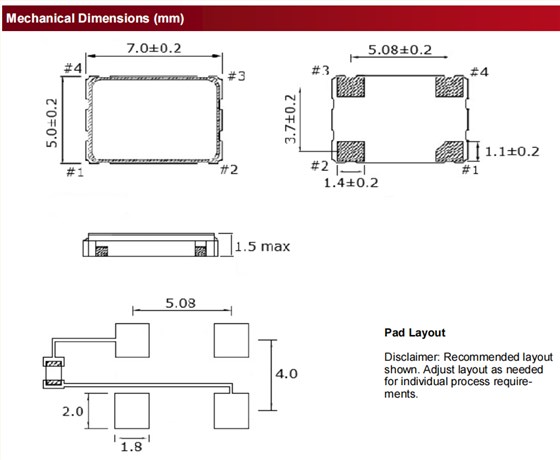

Cardinal有源晶振,CC065HZ-A2B245-50.0TS,以太网应用晶振尺寸图
Cardinal有源晶振,CC065HZ-A2B245-50.0TS,以太网应用晶振
产品特点：
外形尺寸：7.0x5.0x1.5mm有源晶振
频率范围：1-50MHz
CMOS输出（将与TTL设备接口）
启用/禁用功能包括低待机功率
低抖动
5.0V标称电源电压
应用于：驱动A/D、D/A、FPGA，数字视频，以太网，GbE，医学的，存储区域网络，帆布床，宽带接入，SONET/SDH/DWDM，基站/微微蜂窝，测试和测量
