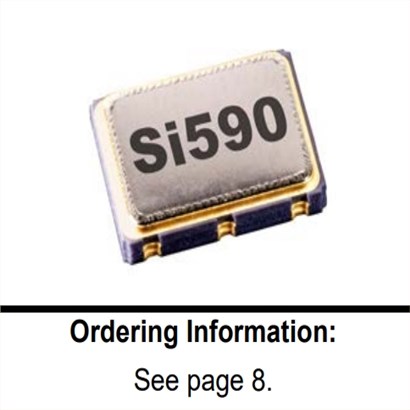

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振

产品简介

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振，尺寸7.0×5.0mm，频率156.25MHZ，支持输出LVDS，电压3.3V，频率稳定性20ppm，思佳讯有源晶振，Skyworks有源晶振，欧美差分晶振，高频差分振荡器，7050mm差分晶振，差分贴片晶振，六脚差分晶振，LVDS差分输出晶振，差分晶体振荡器，时钟振荡器，石英晶体振荡器，有源差分振荡器，OSC差分晶振，石英差分振荡器，低电压差分晶振，低功耗差分晶振，低抖动差分晶振，低相位差分晶振，低耗能差分晶振，低损耗差分晶振，高精度差分振荡器，高质量差分晶振，红外探测器专用差分晶振，娱乐设备差分晶振，影音系统差分晶振，测试测量专用差分晶振，无线网络差分晶振，小型设备差分晶振，具有良好的可靠性能以及稳定性能，有源振荡器产品适合用于红外探测器，娱乐设备，影音系统，测试测量，无线网络，小型设备等领域。Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振.

产品详情

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振，尺寸7.0×5.0mm，频率156.25MHZ，支持输出LVDS，电压3.3V，频率稳定性20ppm，思佳讯有源晶振，Skyworks有源晶振，欧美差分晶振，高频差分振荡器，7050mm差分晶振，差分贴片晶振，六脚差分晶振，LVDS差分输出晶振，差分晶体振荡器，时钟振荡器，石英晶体振荡器，有源差分振荡器，OSC差分晶振，石英差分振荡器，低电压差分晶振，低功耗差分晶振，低抖动差分晶振，低相位差分晶振，低耗能差分晶振，低损耗差分晶振，高精度差分振荡器，高质量差分晶振，红外探测器专用差分晶振，娱乐设备差分晶振，影音系统差分晶振，测试测量专用差分晶振，无线网络差分晶振，小型设备差分晶振，具有良好的可靠性能以及稳定性能，有源振荡器产品适合用于红外探测器，娱乐设备，影音系统，测试测量，无线网络，小型设备等领域。Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振.

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振 参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML
156.25
MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 VDD– 1.25 V
VOD swing (diff) 1.1 1.9 VPP
VSE swing (single-ended) 0.55 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 VOH 0.8 x VDD — VDD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2 		45 — 55 %

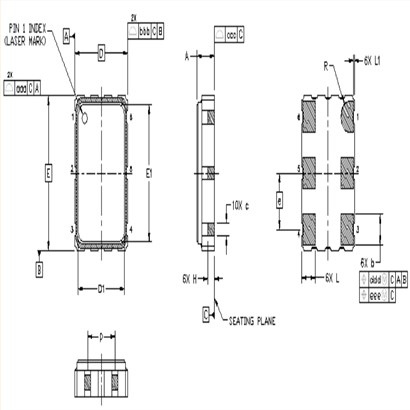

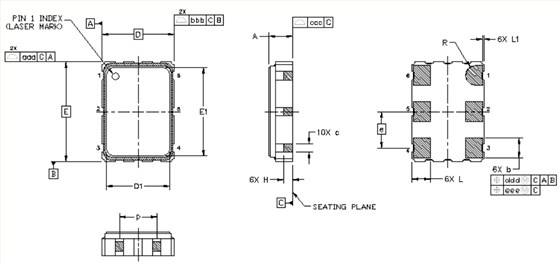

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振尺寸图

Si590 Si591 7050

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振

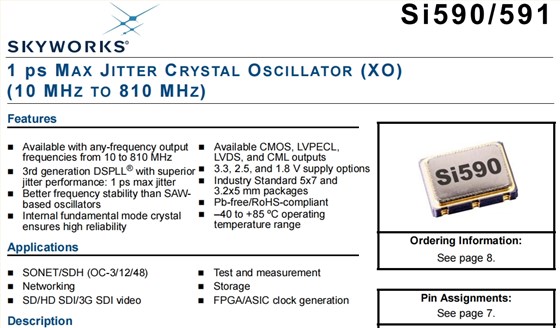

产品特性：

可用于任何频率输出频率从10到810兆赫

具有卓越性能的第三代DSPLL®抖动性能：最大抖动1 ps

比基于SAW的振荡器具有更好的频率稳定性

内部基模晶体确保高可靠性

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7和3.2x5 mm包装

无铅/符合RoHS

–40至+85ºC运行温度范围

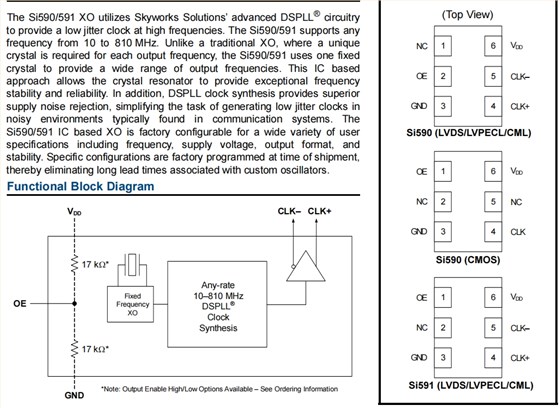

Si590 Si591 1 Si590 Si591 2

Mfr Part # Mfr Description Series Frequency Output
591FC300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si591 300 MHz LVDS
591AC000106DGR Skyworks有源晶振 XTAL OSC XO 106.0000KHZ LVPECL Si591 106 kHz LVPECL
591AC000211DGR Skyworks有源晶振 XTAL OSC XO 211.0000KHZ LVPECL Si591 211 kHz LVPECL
591AC143M360DGR Skyworks有源晶振 XTAL OSC XO 143.3600MHZ LVPECL Si591 143.36 MHz LVPECL
591AC150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVPECL Si591 150 MHz LVPECL
591AC155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si591 155.52 MHz LVPECL
591AC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si591 156.25 MHz LVPECL
591AD25M0000DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVPECL Si591 25 MHz LVPECL
591AD62M5000DGR Skyworks有源晶振 XTAL OSC XO 62.5000MHZ LVPECL Si591 62.5 MHz LVPECL
591AD74M1758DGR Skyworks有源晶振 XTAL OSC XO 74.1758MHZ LVPECL Si591 74.1758 MHz LVPECL
591AD74M2500DGR Skyworks有源晶振 XTAL OSC XO 74.2500MHZ LVPECL Si591 74.25 MHz LVPECL
591BC000244DGR Skyworks有源晶振 XTAL OSC XO 244.0000KHZ LVDS SMD Si591 244 kHz LVDS
591BC148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si591 148.5 MHz LVDS
591BC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si591 156.25 MHz LVDS
591BC166M000DGR Skyworks有源晶振 XTAL OSC XO 166.0000MHZ LVDS SMD Si591 166 MHz LVDS
591BC200M000DGR Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si591 200 MHz LVDS
591BD100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si591 100 MHz LVDS
591BD122M880DGR Skyworks oscillator XTAL OSC XO 122.8800MHZ LVDS SMD Si591 122.88 MHz LVDS
591BD125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si591 125 MHz LVDS
591BD20M0000DGR Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVDS SMD Si591 20 MHz LVDS
591BD25M0000DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVDS SMD Si591 25 MHz LVDS
591BD66M6670DGR Skyworks有源晶振 XTAL OSC XO 66.6670MHZ LVDS SMD Si591 66.667 MHz LVDS
591BD74M2500DGR Skyworks有源晶振 XTAL OSC XO 74.2500MHZ LVDS SMD Si591 74.25 MHz LVDS
591BD81M9200DGR Skyworks有源晶振 XTAL OSC XO 81.9200MHZ LVDS SMD Si591 81.92 MHz LVDS
591EC133M333DGR Skyworks有源晶振 XTAL OSC XO 133.3330MHZ LVPECL Si591 133.333 MHz LVPECL
591EC148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVPECL Si591 148.5 MHz LVPECL
591EC148M550DGR Skyworks有源晶振 XTAL OSC XO 148.5500MHZ LVPECL Si591 148.55 MHz LVPECL
591EC155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si591 155.52 MHz LVPECL
591EC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si591 156.25 MHz LVPECL
591FC148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si591 148.5 MHz LVDS
591FC150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si591 150 MHz LVDS
591FC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si591 156.25 MHz LVDS
591FC200M000DGR Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si591 200 MHz LVDS
591FD114M285DGR Skyworks有源晶振 XTAL OSC XO 114.2850MHZ LVDS SMD Si591 114.285 MHz LVDS
591MC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si591 156.25 MHz LVPECL
591MD53M1250DGR Skyworks有源晶振 XTAL OSC XO 53.1250MHZ LVPECL Si591 53.125 MHz LVPECL
591MD62M5000DGR Skyworks有源晶振 XTAL OSC XO 62.5000MHZ LVPECL Si591 62.5 MHz LVPECL
591NC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si591 156.25 MHz LVDS
591RC160M000DGR Skyworks有源晶振 XTAL OSC XO 160.0000MHZ LVPECL Si591 160 MHz LVPECL
591AC000278DGR Skyworks有源晶振 XTAL OSCILLATOR Si591 156.253906 MHz LVPECL
591FD125M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 125 MHz LVDS
591BD72M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 72 MHz LVDS
591BD48M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 48 MHz LVDS
591FG156M250DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 156.25 MHz LVDS
591FC125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si591 125 MHz LVDS
591FC30M7200DG Skyworks有源晶振 XTAL OSC XO 30.7200MHZ LVDS SMD Si591 30.72 MHz LVDS
591FC99M9925DG Skyworks有源晶振 XTAL OSC XO 99.9925MHZ LVDS SMD Si591 99.9925 MHz LVDS
591MC100M000DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si591 100 MHz LVPECL
591SC75M0000DG Skyworks有源晶振 XTAL OSC XO 75.0000MHZ LVDS SMD Si591 75 MHz LVDS
591AC28M9000DG Skyworks有源晶振 XTAL OSCILLATOR Si591 28.9 MHz LVPECL
591BC10M0000DG Skyworks有源晶振 XTAL OSCILLATOR Si591 10 MHz LVDS
591BC85M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 85 MHz LVDS
591AC10M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 10 MHz LVPECL
591BG10M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 10 MHz LVDS
591BC20M7120DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 20.712 MHz LVDS
591BG70M6560DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 70.656 MHz LVDS
591AG50M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 50 MHz LVPECL
591BG80M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 80 MHz LVDS
