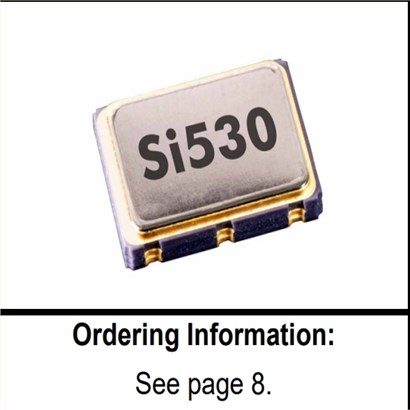

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振

产品简介

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振，尺寸7.0×5.0mm，频率300MHZ，支持输出LVDS，电压2.5V，频率稳定性7ppm，思佳讯差分晶振，Skyworks oscillator，7050mm差分晶振，LVDS输出晶振 ，差分石英振荡器，LVDS差分晶体振荡器，差分贴片晶振 ，差分有源振荡器，高频差分晶振，低抖动差分晶振，低相位差分晶振，低功耗差分晶振，低电压差分晶振，低耗能差分晶振，低损耗差分晶振，无线发射塔专用晶振，卫星通讯差分晶振，仪器仪表差分晶振，航空电子差分晶振，测试测量差分晶振，数字音频差分晶振，娱乐设备差分晶振，具有低抖动高性能的特点.

Oscillator Crystal产品超级适合用于无线发射塔，卫星通讯，仪器仪表，航空电子，测试测量，数字音频，娱乐设备等领域。530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振.

产品详情

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振，尺寸7.0×5.0mm，频率300MHZ，支持输出LVDS，电压2.5V，频率稳定性7ppm，思佳讯差分晶振，Skyworks oscillator，7050mm差分晶振，LVDS输出晶振，差分石英振荡器，LVDS差分晶体振荡器，差分贴片晶振 ，差分有源振荡器，高频差分晶振，低抖动差分晶振，低相位差分晶振，低功耗差分晶振，低电压差分晶振，低耗能差分晶振，低损耗差分晶振，无线发射塔专用晶振，卫星通讯差分晶振，仪器仪表差分晶振，航空电子差分晶振，测试测量差分晶振，数字音频差分晶振，娱乐设备差分晶振，具有低抖动高性能的特点.

Oscillator Crystal产品超级适合用于无线发射塔，卫星通讯，仪器仪表，航空电子，测试测量，数字音频，娱乐设备等领域。530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振.

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振 参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		111
99
90
81 		121
108
98
88 		mA
Tristate mode — 60 75 mA
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5 V
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Unit
Nominal Frequency1,2 fO LVPECL/LVDS/CML
300
MHz
CMOS 10 — 160 MHz
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Temperature Stability1,3 –7
–20
–50

— 		+7
+20
+50 		ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20 year
life 		— — ±10 ppm
Parameter Symbol Test Condition Min Typ Max Unit
Total Stability Temp stability = ±7 ppm — — ±20 ppm
Temp stability = ±20 ppm — — ±31.5 ppm
Temp stability = ±50 ppm ±61.5 ppm
Powerup Time4 tOSC 10 ms
Parameter Symbol Test Condition Min Typ Max Unit
LVPECL Output Option1 VO mid-level VDD– 1.42 — VDD– 1.25 V
VOD swing (diff) 1.1 — 1.9 VPP
VSE swing (single-ended) 0.55 — 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level VDD– 1.30 V
1.8 V option mid-level VDD– 0.36 V
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50 VPP
CMOS Output Option3 VOH IOH= 32 mA 0.8 x VDD VDD V
VOL IOL= 32 mA 0.4 V
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML 350 ps
CMOS with CL= 15 pF 1 ns
Symmetry (duty cycle) SYM LVPECL:
(diff)
LVDS:
CMOS: 		VDD– 1.3 V
1.25 V (diff)
VDD/2 		45 55 %

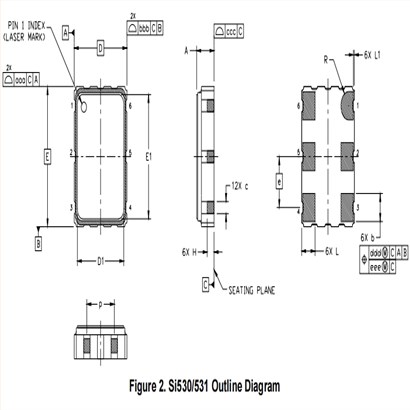

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振尺寸图

Si530 Si531 7050

530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振

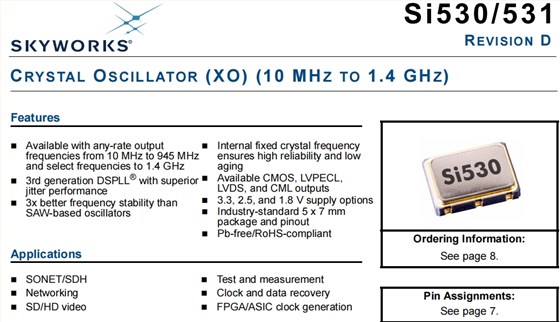

产品特性：

可用于任何速率输出频率从10MHz到945MHz

并选择1.4 GHz的频率

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率确保高可靠性和低成本变老

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7mm包装和引脚

无铅/符合RoHS

Si530 1Si530 2

Mfr Part # Mfr Description Series Frequency Output
530AC644M873DG Skyworks有源晶振 XTAL OSC XO 644.8730MHZ LVPECL Si530 644.873 MHz LVPECL
530AC644M875DG Skyworks有源晶振 XTAL OSC XO 644.8750MHZ LVPECL Si530 644.875 MHz LVPECL
530AC719M200DG Skyworks有源晶振 XTAL OSC XO 719.2000MHZ LVPECL Si530 719.2 MHz LVPECL
530AC720M000DG Skyworks oscillator XTAL OSC XO 720.0000MHZ LVPECL Si530 720 MHz LVPECL
530AC787M710DG Skyworks有源晶振 XTAL OSC XO 787.7100MHZ LVPECL Si530 787.71 MHz LVPECL
530AC800M000DG Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVPECL Si530 800 MHz LVPECL
530BC000213DG Skyworks有源晶振 XTAL OSC XO 213.0000KHZ LVDS SMD Si530 213 kHz LVDS
530BC216M000DG Skyworks有源晶振 XTAL OSC XO 216.0000MHZ LVDS SMD Si530 216 MHz LVDS
530BC240M000DG Skyworks有源晶振 XTAL OSC XO 240.0000MHZ LVDS SMD Si530 240 MHz LVDS
530BC240M474DG Skyworks有源晶振 XTAL OSC XO 240.4740MHZ LVDS SMD Si530 240.474 MHz LVDS
530BC270M000DG Skyworks有源晶振 XTAL OSC XO 270.0000MHZ LVDS SMD Si530 270 MHz LVDS
530BC285M714DG Skyworks有源晶振 XTAL OSC XO 285.7140MHZ LVDS SMD Si530 285.714 MHz LVDS
530BC310M000DG Skyworks有源晶振 XTAL OSC XO 310.0000MHZ LVDS SMD Si530 310 MHz LVDS
530BC351M936DG Skyworks有源晶振 XTAL OSC XO 351.9360MHZ LVDS SMD Si530 351.936 MHz LVDS
530BC490M000DG Skyworks有源晶振 XTAL OSC XO 490.0000MHZ LVDS SMD Si530 490 MHz LVDS
530BC500M000DG Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS SMD Si530 500 MHz LVDS
530BC520M833DG Skyworks有源晶振 XTAL OSC XO 520.8330MHZ LVDS SMD Si530 520.833 MHz LVDS
530BC575M000DG Skyworks有源晶振 XTAL OSC XO 575.0000MHZ LVDS SMD Si530 575 MHz LVDS
530BC600M000DG Skyworks有源晶振 XTAL OSC XO 600.0000MHZ LVDS SMD Si530 600 MHz LVDS
530BC625M000DG Skyworks有源晶振 XTAL OSC XO 625.0000MHZ LVDS SMD Si530 625 MHz LVDS
530BC691M200DG Skyworks有源晶振 XTAL OSC XO 691.2000MHZ LVDS SMD Si530 691.2 MHz LVDS
530BC758M000DG Skyworks有源晶振 XTAL OSC XO 758.0000MHZ LVDS SMD Si530 758 MHz LVDS
530EC285M714DG Skyworks有源晶振 XTAL OSC XO 285.7140MHZ LVPECL Si530 285.714 MHz LVPECL
530FC000127DG Skyworks有源晶振 XTAL OSC XO 127.0000KHZ LVDS SMD Si530 127 kHz LVDS
530FC000210DG Skyworks有源晶振 XTAL OSC XO 210.0000KHZ LVDS SMD Si530 210 kHz LVDS
530FC000246DG Skyworks有源晶振 XTAL OSC XO 246.0000KHZ LVDS SMD Si530 246 kHz LVDS
530FC000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si530 274 kHz LVDS
530FC000342DG Skyworks有源晶振 XTAL OSC XO 342.0000KHZ LVDS SMD Si530 342 kHz LVDS
530FC233M250DG Skyworks有源晶振 XTAL OSC XO 233.2500MHZ LVDS SMD Si530 233.25 MHz LVDS
530FC256M000DG Skyworks有源晶振 XTAL OSC XO 256.0000MHZ LVDS SMD Si530 256 MHz LVDS
530FC297M000DG Skyworks有源晶振 XTAL OSC XO 297.0000MHZ LVDS SMD Si530 297 MHz LVDS
530FC300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si530 300 MHz LVDS
530FC322M266DG Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si530 322.266 MHz LVDS
530FC400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si530 400 MHz LVDS
530FC425M000DG Skyworks有源晶振 XTAL OSC XO 425.0000MHZ LVDS SMD Si530 425 MHz LVDS
530FC500M000DG Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS SMD Si530 500 MHz LVDS
530FC669M326DG Skyworks有源晶振 XTAL OSC XO 669.3260MHZ LVDS SMD Si530 669.326 MHz LVDS
530FC698M812DG Skyworks有源晶振 XTAL OSC XO 698.8120MHZ LVDS SMD Si530 698.812 MHz LVDS
530FC800M000DG Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVDS SMD Si530 800 MHz LVDS
530MC000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVPECL Si530 274 kHz LVPECL
530MC400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVPECL Si530 400 MHz LVPECL
530MC496M000DG Skyworks有源晶振 XTAL OSC XO 496.0000MHZ LVPECL Si530 496 MHz LVPECL
530NC250M000DG Skyworks有源晶振 XTAL OSC XO 250.0000MHZ LVDS SMD Si530 250 MHz LVDS
530NC400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si530 400 MHz LVDS
530SC217M000DG Skyworks有源晶振 XTAL OSC XO 217.0000MHZ LVDS SMD Si530 217 MHz LVDS
530SC250M000DG Skyworks有源晶振 XTAL OSC XO 250.0000MHZ LVDS SMD Si530 250 MHz LVDS
530SC312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si530 312.5 MHz LVDS
530SC320M000DG Skyworks有源晶振 XTAL OSC XO 320.0000MHZ LVDS SMD Si530 320 MHz LVDS
530AC222M350DG Skyworks有源晶振 XTAL OSCILLATOR Si530 222.35 MHz LVPECL
530AC805M644DG Skyworks有源晶振 XTAL OSCILLATOR Si530 805.644 MHz LVPECL
530BC000274DG Skyworks有源晶振 XTAL OSCILLATOR Si530 322.265625 MHz LVDS
530BC307M200DG Skyworks有源晶振 XTAL OSCILLATOR Si530 307.2 MHz LVDS
530BC418M000DG Skyworks有源晶振 XTAL OSCILLATOR Si530 418 MHz LVDS
530BC419M300DG Skyworks有源晶振 XTAL OSCILLATOR Si530 419.3 MHz LVDS
530EC322M344DG Skyworks有源晶振 XTAL OSCILLATOR Si530 322.344 MHz LVPECL
530BC640M000DG Skyworks有源晶振 XO DIFF OE PIN 2 10-1417MHZ Si530 640 MHz LVDS
530AC004686DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si530 755.9985 MHz LVPECL
530BC595M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si530 595 MHz LVDS
530BC374M460DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si530 374.46 MHz LVDS
530NC256M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si530 256 MHz LVDS
530AC805M390DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si530 805.39 MHz LVPECL
530AC004707DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si530 805.6641 MHz LVPECL
530AC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si530 155.52 MHz LVPECL
530BC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si530 155.52 MHz LVDS
530EC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si530 155.52 MHz LVPECL
530FC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si530 155.52 MHz LVDS
530AC187M500DG Skyworks有源晶振 XTAL OSC XO 187.5000MHZ LVPECL Si530 187.5 MHz LVPECL
530EC187M500DG Skyworks有源晶振 XTAL OSC XO 187.5000MHZ LVPECL Si530 187.5 MHz LVPECL
530FC187M500DG Skyworks有源晶振 XTAL OSC XO 187.5000MHZ LVDS SMD Si530 187.5 MHz LVDS
530AC000110DG Skyworks有源晶振 XTAL OSC XO 148.35165MHZ LVPECL Si530 148.35165 MHz LVPECL
530AC148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVPECL Si530 148.5 MHz LVPECL
530BC000110DG Skyworks有源晶振 XTAL OSC XO 148.35165MHZ LVDS Si530 148.35165 MHz LVDS
530EC000110DG Skyworks有源晶振 XTAL OSC XO 148.35165MHZ LVPECL Si530 148.35165 MHz LVPECL
530EC200M000DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVPECL Si530 200 MHz LVPECL
530FC000110DG Skyworks有源晶振 XTAL OSC XO 148.35165MHZ LVDS晶振 Si530 148.35165 MHz LVDS
530BC311M040DG Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVDS SMD Si530 311.04 MHz LVDS
530AC000127DGR Skyworks有源晶振 XTAL OSC XO 127.0000KHZ LVPECL Si530 127 kHz LVPECL
530AC000132DGR Skyworks有源晶振 XTAL OSC XO 132.0000KHZ LVPECL Si530 132 kHz LVPECL
