Si535路由器晶振,535FB156M250DG,思佳讯差分晶振

Si535路由器晶振,535FB156M250DG,思佳讯差分晶振Si535路由器晶振,535FB156M250DG,思佳讯差分晶振

产品简介

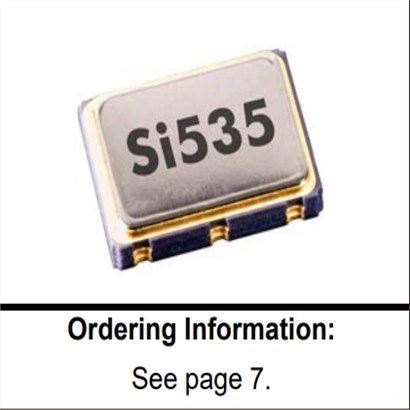

Si535路由器晶振,535FB156M250DG,思佳讯差分晶振，尺寸7.0×5.0mm，频率156.25MHZ，输出逻辑LVDS，电压2.5V，Skyworks有源差分晶振，六脚有源晶振，LVDS差分晶振，差分晶体振荡器，7050mm差分晶振，时钟振荡器，有源晶体振荡器，贴片差分晶振，网络设备差分晶振，路由器差分晶振，差分有源晶振，石英差分晶振，低抖动差分晶振，低电压压控晶振，低相位压控晶振，低耗能差分晶振，低功耗差分晶振，高性能压控晶振，具有良好的可靠性能。

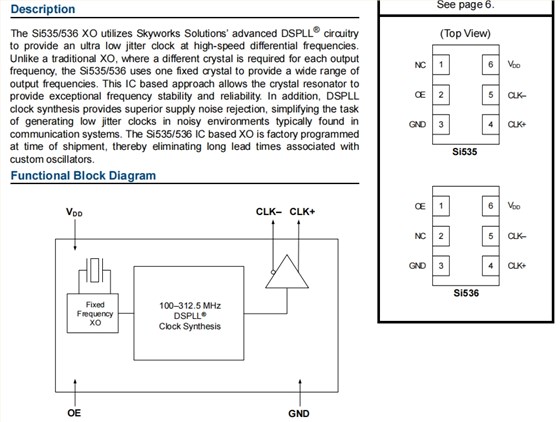

Si535/536 XO采用Skyworks Solutions的先进DSPLL®电路以提供高速差分频率的超低抖动时钟。与传统XO不同，在传统XO中，每个输出都需要不同的晶体频率，Si535/536有源晶振使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。Si535路由器晶振,535FB156M250DG,思佳讯差分晶振.


产品详情

Si535路由器晶振,535FB156M250DG,思佳讯差分晶振，尺寸7.0×5.0mm，频率156.25MHZ，输出逻辑LVDS，电压2.5V，Skyworks有源差分晶振，六脚有源晶振，LVDS差分晶振，差分晶体振荡器，7050mm差分晶振，时钟振荡器，有源晶体振荡器，贴片差分晶振，网络设备差分晶振，路由器差分晶振，差分有源晶振，石英差分晶振，低抖动差分晶振，低电压压控晶振，低相位压控晶振，低耗能差分晶振，低功耗差分晶振，高性能压控晶振，具有良好的可靠性能。

Si535/536 XO采用Skyworks Solutions的先进DSPLL®电路以提供高速差分频率的超低抖动时钟。与传统XO不同，在传统XO中，每个输出都需要不同的晶体频率，Si535/536有源晶振使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。Si535路由器晶振,535FB156M250DG,思佳讯差分晶振.Si535路由器晶振,535FB156M250DG,思佳讯差分晶振 参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
Supply Current IDD Output enabled
LVPECL
LVDS 		—
— 		111
90 		121
98 		mA
Tristate mode — 60 75 mA
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5 V
Operating Temperature Range TA –40 — 85 °C
Parameter Symbol Test Condition Min Typ Max Unit
Nominal Frequency1 fO LVPECL/LVDS 100 — 312.5 MHz
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Temperature Stability1,2 –7
–20 		—
— 		+7
+20 		ppm
Aging fa Frequency drift over first year ±3 ppm
Frequency drift over 20 year
life 		— — ±10 ppm
Total Stability2 Temp stability = ±20 ppm — — ±31.5 ppm
Temp stability = ±7 ppm — — 20
Powerup Time3 tOSC TA= –40°C — +85°C 10 ms
Parameter Symbol Test Condition Min Typ Max Unit
LVPECL Output Option1 VO Mid-level VDD– 1.42 — VDD– 1.25 V
VOD Swing (diff) 1.1 — 1.9 VPP
VSE Swing (Single-ended) 0.55 — 0.95 VPP
LVDS Output Option2 VO Mid-level 1.125 1.20 1.275 V
VOD Swing (diff) 0.5 0.7 0.9 VPP
Rise/Fall time (20/80%) tR,tF — — 350 ps
Symmetry (duty cycle) SYM Differential 45 — 55 %

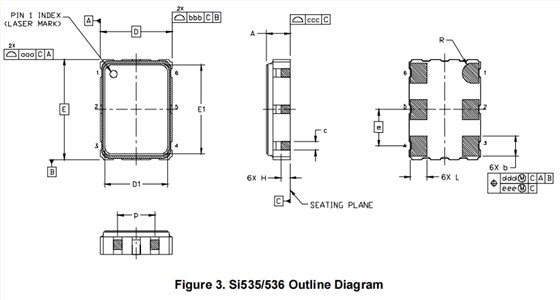

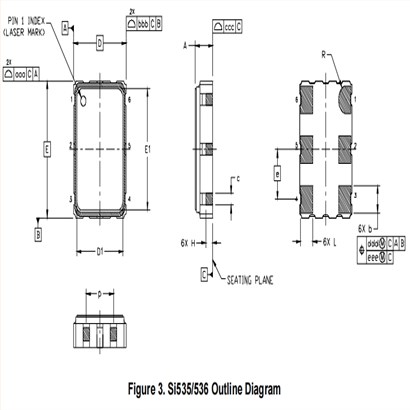

Si535路由器晶振,535FB156M250DG,思佳讯差分晶振 尺寸图

Si535 Si536 7050Si535路由器晶振,535FB156M250DG,思佳讯差分晶振

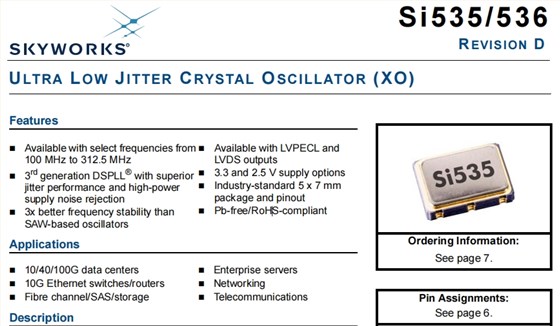

产品特性：

可从中选择频率100MHz至312.5MHz

具有卓越性能的第三代DSPLL®抖动性能和高功率电源噪声抑制

频率稳定性比SAW振荡器

LVPECL和LVDS晶振输出

3.3和2.5 V电源选项

行业标准5 x 7mm包装和引脚

无铅/符合RoHS

Si535 Si536 1Si535 Si536 2

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply Frequency Stability
535AC100M000DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si535 100 MHz LVPECL 3.3V ±7ppm
535AB125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si535 125 MHz LVPECL 3.3V ±20ppm
535FB125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si535 125 MHz LVDS 2.5V ±20ppm
535FB156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS 2.5V ±20ppm
535BC159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 3.3V ±7ppm
535BC312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS 3.3V ±7ppm
535FB000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 2.5V ±20ppm
535FB000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 2.5V ±20ppm
535FB000292DGR Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS 2.5V ±20ppm
535FB000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 2.5V ±20ppm
535FB106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS 2.5V ±20ppm
535FB150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 2.5V ±20ppm
535FB155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 2.5V ±20ppm
535FB159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 2.5V ±20ppm
535FB212M500DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS 2.5V ±20ppm
535FB312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS 2.5V ±20ppm
535FC000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 2.5V ±7ppm
535FC000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 2.5V ±7ppm
535FC000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 2.5V ±7ppm
535FC106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS 2.5V ±7ppm
535FC150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 2.5V ±7ppm
535FC155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 2.5V ±7ppm
535FC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS 2.5V ±7ppm
535FC159M375DGR Skyworks晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 2.5V ±7ppm
535FC212M500DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS 2.5V ±7ppm
535FC312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS 2.5V ±7ppm
535BB000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 3.3V ±20ppm
535BB000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 3.3V ±20ppm
535BB000292DGR Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS 3.3V ±20ppm
535BB000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 3.3V ±20ppm
535BB000335DGR Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVDS SMD Si535 156.2539 MHz LVDS 3.3V ±20ppm
535BB106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS 3.3V ±20ppm
535BB150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 3.3V ±20ppm
535BB155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 3.3V ±20ppm
535BB159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 3.3V ±20ppm
535BB212M500DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS 3.3V ±20ppm
535BC000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 3.3V ±7ppm
535BC000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 3.3V ±7ppm
535BC000292DGR Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS 3.3V ±7ppm
535BC000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 3.3V ±7ppm
535BC150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 3.3V ±7ppm
535BC155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 3.3V ±7ppm
535BB000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 3.3V ±20ppm
535BB000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 3.3V ±20ppm
535BB000292DG Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS 3.3V ±20ppm
535BB000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 3.3V ±20ppm
535BB000335DG Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVDS SMD Si535 156.2539 MHz LVDS 3.3V ±20ppm
535BB106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS 3.3V ±20ppm
535BB150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 3.3V ±20ppm
535BB155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 3.3V ±20ppm
535BB159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 3.3V ±20ppm
535BB212M500DG Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS 3.3V ±20ppm
535BC000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 3.3V ±7ppm
535BC000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 3.3V ±7ppm
535BC000292DG Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS 3.3V ±7ppm
535BC000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 3.3V ±7ppm
535BC150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 3.3V ±7ppm
535BC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 3.3V ±7ppm
535BC159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 3.3V ±7ppm
535BC312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS 3.3V ±7ppm
535FB000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 2.5V ±20ppm
535FB000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 2.5V ±20ppm
535FB000292DG Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS 2.5V ±20ppm
535FB000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 2.5V ±20ppm
535FB106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS 2.5V ±20ppm
535FB150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 2.5V ±20ppm
535FB155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 2.5V ±20ppm
535FB159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 2.5V ±20ppm
535FB212M500DG Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS 2.5V ±20ppm
535FB312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS 2.5V ±20ppm
535FC000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS 2.5V ±7ppm
535FC000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS 2.5V ±7ppm
535FC000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS 2.5V ±7ppm
535FC106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS 2.5V ±7ppm
535FC150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS 2.5V ±7ppm
535FC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS 2.5V ±7ppm
535FC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS 2.5V ±7ppm
535FC159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS 2.5V ±7ppm
535FC212M500DG Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS 2.5V ±7ppm
535FC312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS 2.5V ±7ppm
532AA000346DGR Skyworks有源晶振 LINEAR IC'S Si532 346 MHz LVPECL 3.3V ±50ppm
535AB000335DGR Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVPECL Si535 156.2539 MHz LVPECL 3.3V ±20ppm
535AB100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si535 100 MHz LVPECL 3.3V ±20ppm
535AB156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si535 156.25 MHz LVPECL 3.3V ±20ppm
535BB100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si535 100 MHz LVDS 3.3V ±20ppm
535BB125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si535 125 MHz LVDS 3.3V ±20ppm
535BB156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS 3.3V ±20ppm
535EB100M000DGR Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVPECL Si535 156.2539 MHz LVPECL 2.5V ±20ppm
535EB125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si535 125 MHz LVPECL 2.5V ±20ppm
535EB156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si535 156.25 MHz LVPECL 2.5V ±20ppm
535FB100M000DGR Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVDS SMD Si535 156.2539 MHz LVDS 2.5V ±20ppm
535FB125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si535 125 MHz LVDS 2.5V ±20ppm
535FB156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS 2.5V ±20ppm
535AB000335DG Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVPECL Si535 156.2539 MHz LVPECL 3.3V ±20ppm
535AB100M000DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si535 100 MHz LVPECL 3.3V ±20ppm
