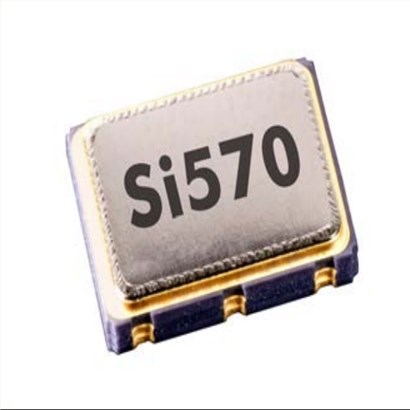

思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR

思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR

产品简介

思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR，尺寸7.0×5.0mm，频率300MHZ，支持输出LVDS，电压2.5V，频率稳定性7ppm，思佳讯压控晶振，Skyworks oscillator，欧美进口晶振，7050mm差分晶振，差分晶体振荡器，贴片差分晶振，差分石英振荡器，压控晶体振荡器，压控差分晶振，LVDS差分晶振，差分有源振荡器，石英晶体振荡器，OSC差分晶振，高频差分晶振，高质量差分晶振，低电压差分晶振，低损耗差分晶振，低功耗差分晶振，低相位差分晶振，低耗能差分晶振，低抖动差分振荡器，以太网专用差分晶振，蓝牙模块差分晶振，仪器仪表差分晶振，小型设备差分晶振，测试测量差分晶振，网络应用差分晶振，航空航天差分晶振，按摩仪专用差分晶振，具有低抖动高质量的特点。

LVDS晶振产品适合用于以太网，蓝牙模块，仪器仪表，小型设备，测试测量，网络应用，航空航天，按摩仪等领域。思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR.

产品详情

思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR，尺寸7.0×5.0mm，频率300MHZ，支持输出LVDS，电压2.5V，频率稳定性7ppm，思佳讯压控晶振，Skyworks oscillator，欧美进口晶振，7050mm差分晶振，差分晶体振荡器，贴片差分晶振，差分石英振荡器，压控晶体振荡器，压控差分晶振，LVDS差分晶振，差分有源振荡器，石英晶体振荡器，OSC差分晶振，高频差分晶振，高质量差分晶振，低电压差分晶振，低损耗差分晶振，低功耗差分晶振，低相位差分晶振，低耗能差分晶振，低抖动差分振荡器，以太网专用差分晶振，蓝牙模块差分晶振，仪器仪表差分晶振，小型设备差分晶振，测试测量差分晶振，网络应用差分晶振，航空航天差分晶振，按摩仪专用差分晶振，具有低抖动高质量的特点。

LVDS晶振产品适合用于以太网，蓝牙模块，仪器仪表，小型设备，测试测量，网络应用，航空航天，按摩仪等领域。思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR.

思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR 参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
108
99
90 		130
117
108
98 		mA
TriState mode 60 75
Output Enable (OE)2,
Serial Data (SDA),
Serial Clock (SCL) 		VIH 0.75 x VDD V
VIL 0.5
Operating Temperature Range TA –40 85 ºC
Parameter Symbol Test Condition Min Typ Max Unit
Control Voltage Tuning Slope1,2,3 KV VC10 to 90% of VDD — 33
45
90
135
180
356 		— ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 kΩ
Nominal Control Voltage5 VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
Parameter Symbol Test Condition Min Typ Max Unit
Programmable Frequency
Range1,2 		fO LVPECL/LVDS/CML
300
MHz
CMOS 10 — 160
Temperature Stability1,3 TA= –40 to +85 ºC –7
–20
–50
–100 		—
—
—
— 		7
+20
+50
+100 		ppm
Initial Accuracy — 1.5 — ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20-year life — — ±10 ppm
Total Stability Temp stability = ±7 ppm ±20 ppm
Temp stability = ±20 ppm ±31.5 ppm
Temp stability = ±50 ppm — — ±61.5 ppm
Absolute Pull Range1,3 APR ±12 — ±375 ppm
Power up Time4 tOSC — — 10 ms

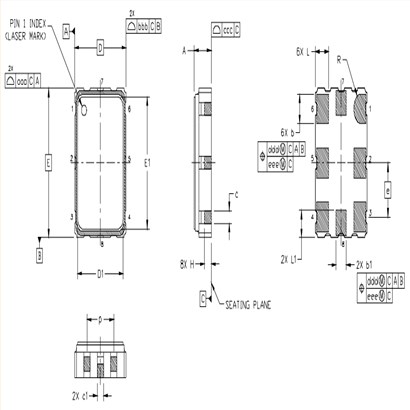

思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR尺寸图

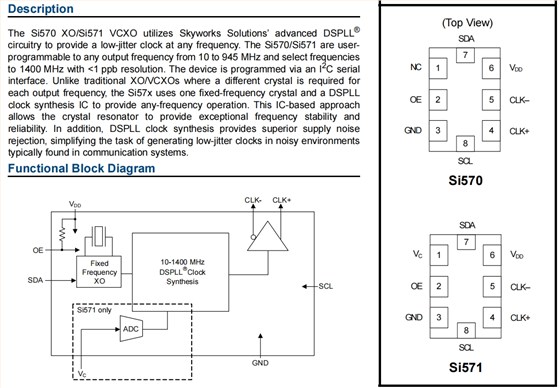

Si570 Si571 思佳讯以太网差分晶振,Si570低电压晶振,570FCA001742DGR

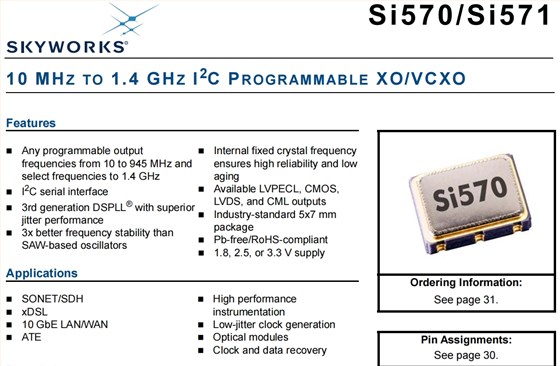

产品特性：

任何可编程输出

频率为10至945MHz

选择频率至1.4 GHz

I2C串行接口

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率

确保高可靠性和低成本变老

可用LVPECL、CMOS、LVDS晶振和CML输出

行业标准5x7 mm包裹

无铅/符合RoHS

1.8、2.5或3.3 V电源

Si570 Si571 1Si570 Si571 2

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply
570FCA000372DGR Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVDS SMD Si570 800 MHz LVDS 2.5V
570FCA000420DGR Skyworks有源晶振 XTAL OSC XO 644.53125MHZ LVDS Si570 644.53125 MHz LVDS 2.5V
570FCA000476DGR Skyworks有源晶振 XTAL OSC XO 322.265625MHZ LVDS Si570 322.265625 MHz LVDS 2.5V
570FCA000544DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si570 156.25 MHz LVDS 2.5V
570FCA000643DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si570 212.5 MHz LVDS 2.5V
570FCA001031DGR Skyworks有源晶振 XTAL OSC XO 437.5000MHZ LVDS SMD Si570 437.5 MHz LVDS 2.5V
570FCA001228DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si570 125 MHz LVDS 2.5V
570FCA001702DGR Skyworks有源晶振 XTAL OSC XO 99.7500MHZ LVDS SMD Si570 99.75 MHz LVDS 2.5V
570FCA001742DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si570 300 MHz LVDS 2.5V
570FCA001842DGR Skyworks有源晶振 XTAL OSC XO 200.0800MHZ LVDS SMD Si570 200.08 MHz LVDS 2.5V
570FCA001879DGR Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si570 122.88 MHz LVDS 2.5V
570MCA000107DGR Skyworks晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570MCA000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570MCA000121DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si570 100 MHz LVPECL 3.3V
570MCA000346DGR Skyworks有源晶振 XTAL OSC XO 81.3600MHZ LVPECL Si570 81.36 MHz LVPECL 3.3V
570MCA000763DGR Skyworks有源晶振 XTAL OSC XO 1.0900GHZ LVPECL SMD Si570 1.09 GHz LVPECL 3.3V
570MCA001230DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570MCA001303DGR Skyworks有源晶振 XTAL OSC XO 212.0000MHZ LVPECL Si570 212 MHz LVPECL 3.3V
570NCA000107DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si570 10 MHz LVDS 3.3V
570NCA000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si570 10 MHz LVDS 3.3V
570NCA000159DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si570 148.5 MHz LVDS 3.3V
570NCA000759DGR Skyworks有源晶振 XTAL OSC XO 644.53125MHZ LVDS Si570 644.53125 MHz LVDS 3.3V
570NCA000803DGR Skyworks有源晶振 XTAL OSC XO 148.351648MHZ LVDS Si570 148.351648 MHz LVDS 3.3V
570NCA000830DGR Skyworks有源晶振 XTAL OSC XO 74.9633969MHZ LVDS Si570 74.9633969 MHz LVDS 3.3V
570NCA000933DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si570 125 MHz LVDS 3.3V
570NCA001047DGR Skyworks有源晶振 XTAL OSC XO 148.3510MHZ LVDS SMD Si570 148.351 MHz LVDS 3.3V
570NCA001780DGR Skyworks有源晶振 XTAL OSC XO 106.9200MHZ LVDS SMD Si570 106.92 MHz LVDS 3.3V
570NCA001881DGR Skyworks有源晶振 XTAL OSC XO 166.0000MHZ LVDS SMD Si570 166 MHz LVDS 3.3V
570RCA000383DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVPECL Si570 150 MHz LVPECL 2.5V
570RCA000825DGR Skyworks有源晶振 XTAL OSC XO 750.0000MHZ LVPECL Si570 750 MHz LVPECL 2.5V
570RCA001068DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si570 100 MHz LVPECL 2.5V
570SCA000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si570 10 MHz LVDS 2.5V
570ACA000131DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 120 MHz LVPECL 3.3V
570ACA000212DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 10 MHz LVPECL 3.3V
570ACA000273DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 19.44 MHz LVPECL 3.3V
570ACA000282DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 10 MHz LVPECL 3.3V
570ACA000290DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 250 MHz LVPECL 3.3V
570ACA001930DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 120 MHz LVPECL 3.3V
570ACA001977DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 24 MHz LVPECL 3.3V
570ACA002083DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 161.4 MHz LVPECL 3.3V
570ACA002096DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 477.225 MHz LVPECL 3.3V
570BCA000131DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 120 MHz LVDS 3.3V
570BCA000144DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 80 MHz LVDS 3.3V
570BCA000161DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 491.52 MHz LVDS 3.3V
570BCA000202DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 14.4 MHz LVDS 3.3V
570BCA000273DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 19.44 MHz LVDS 3.3V
570BCA000313DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 300 MHz LVDS 3.3V
570BCA000544DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 156.25 MHz LVDS 3.3V
570BCA000597DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 156.25 MHz LVDS 3.3V
570BCA000627DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 10 MHz LVDS 3.3V
570BCA001344DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 150 MHz LVDS 3.3V
570BCA001432DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 72 MHz LVDS 3.3V
570BCA001978DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 204.8 MHz LVDS 3.3V
570BCA002013DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 200 MHz LVDS 3.3V
570BCA002054DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 174.703 MHz LVDS 3.3V
570BCA002055DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 174.7031 MHz LVDS 3.3V
570ECA000122DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 1 GHz LVPECL 2.5V
570FCA000122DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 1 GHz LVDS 2.5V
570FCA000136DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 160 MHz LVDS 2.5V
570FCA000400DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 10 MHz LVDS 2.5V
570FCA001346DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 200.08 MHz LVDS 2.5V
570FCA001624DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 156.25 MHz LVDS 2.5V
570MCA001978DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 204.8 MHz LVPECL 3.3V
570NCA000118DGR Skyworks有源晶振 XTAL OSCILLATOR Si570 156.25 MHz LVDS 3.3V
570FCA002126DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si570 152.987639 MHz LVDS 2.5V
570ACA002145DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si570 122.88 MHz LVPECL 3.3V
570BCA000298DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 866 MHz LVDS 3.3V
570ACA002325DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10.1313 MHz LVPECL 3.3V
570ACA000133DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 500 MHz LVPECL 3.3V
570BCA000372DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 800 MHz LVDS 3.3V
570BCA002281DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.213 GHz LVDS 3.3V
570BCA002265DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 133.333 MHz LVDS 3.3V
570BCA002235DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 150 MHz LVDS 3.3V
570BCA000896DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 100 MHz LVDS 3.3V
570BCA000907DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 106.25 MHz LVDS 3.3V
570ACA000544DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVPECL 3.3V
570BCA000282DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10 MHz LVDS 3.3V
570BCA002229DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 143.75 MHz LVDS 3.3V
570BCA000163DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 20 MHz LVDS 3.3V
570FCA002351DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 99.75 MHz LVDS 2.5V
570ACA000780DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 30 MHz LVPECL 3.3V
570FCA002334DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 99.75 MHz LVDS 2.5V
570BCA000299DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 200 MHz LVDS 3.3V
570ACA000157DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 50 MHz LVPECL 3.3V
570BCA000804DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVDS 3.3V
570BCA000458DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 26 MHz LVDS 3.3V
570ACA000668DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10 MHz LVPECL 3.3V
570ECA000112DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10 MHz LVPECL 2.5V
570BCA000991DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 135 MHz LVDS 3.3V
570BCA000685DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 640 MHz LVDS 3.3V
570ACA002276DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.2 MHz LVPECL 3.3V
570ACA002287DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 195.3125 MHz LVPECL 3.3V
570ACA002280DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.213 GHz LVPECL 3.3V
570ACA002326DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 33.3333333 MHz LVPECL 3.3V
570BCA000586DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 155.52 MHz LVDS 3.3V
570BCA000676DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 100 MHz LVDS 3.3V
570ACA001844DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 200 MHz LVPECL 3.3V
570FCA002199DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 644.53125 MHz LVDS 2.5V
570NCA000157DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 50 MHz LVDS 3.3V
570BCA000301DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.213 GHz LVDS 3.3V
570ACA000400DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10 MHz LVPECL 3.3V
570FCA002265DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 133.333 MHz LVDS 2.5V
570BCA002166DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 33.333333 MHz LVDS 3.3V
570ACA002322DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 13.1313 MHz LVPECL 3.3V
570BCA001830DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.215 GHz LVDS 3.3V
570BCA000136DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 160 MHz LVDS 3.3V
570FCA000131DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 120 MHz LVDS 2.5V
570FCA002183DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 187.3125 MHz LVDS 2.5V
570ACA002327DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 13.040521 MHz LVPECL 3.3V
570BCA001617DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVDS 3.3V
570ACA000313DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 300 MHz LVPECL 3.3V
570BCA000915DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 375 MHz LVDS 3.3V
570BCA002390DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 50 MHz LVDS 3.3V
570BCA002414DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 174.703 MHz LVDS 3.3V
570BCA000157DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 50 MHz LVDS 3.3V
570ACA001476DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10 MHz LVPECL 3.3V
570BCA000520DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVDS 3.3V
570ACA002412DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.05 GHz LVPECL 3.3V
570ACA001123DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVPECL 3.3V
570BCA002400DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 49.87013 MHz LVDS 3.3V
570FCA001040DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 188 MHz LVDS 2.5V
570ACA000420DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 644.53125 MHz LVPECL 3.3V
570ACA002188DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 20 MHz LVPECL 3.3V
570ACA000107DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000111DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVPECL Si570 25 MHz LVPECL 3.3V
570ACA000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000115DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si570 125 MHz LVPECL 3.3V
570ACA000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si570 156.25 MHz LVPECL 3.3V
570ACA000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si570 100 MHz LVPECL 3.3V
570ACA000122DG Skyworks有源晶振 XTAL OSC XO 1.0000GHZ LVPECL SMD Si570 1 GHz LVPECL 3.3V
570ACA000141DG Skyworks有源晶振 XTAL OSC XO 56.3200MHZ LVPECL Si570 56.32 MHz LVPECL 3.3V
570ACA000153DG Skyworks有源晶振 XTAL OSC XO 12.0000MHZ LVPECL Si570 12 MHz LVPECL 3.3V
570ACA000163DG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVPECL Si570 20 MHz LVPECL 3.3V
570ACA000178DG Skyworks有源晶振 XTAL OSC XO 16.0000MHZ LVPECL Si570 16 MHz LVPECL 3.3V
570ACA000233DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000368DG Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVPECL Si570 122.88 MHz LVPECL 3.3V
570ACA000383DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVPECL Si570 150 MHz LVPECL 3.3V
570ACA000430DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000476DG Skyworks有源晶振 XTAL OSC XO 322.265625MHZ LVPECL Si570 322.265625 MHz LVPECL 3.3V
570ACA000496DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000514DG Skyworks有源晶振 XTAL OSC XO 19.9820MHZ LVPECL Si570 19.982 MHz LVPECL 3.3V
570ACA000650DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000732DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA000770DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si570 100 MHz LVPECL 3.3V
570ACA000810DG Skyworks有源晶振 XTAL OSC XO 135.3000MHZ LVPECL Si570 135.3 MHz LVPECL 3.3V
570ACA000918DG Skyworks有源晶振 XTAL OSC XO 135.0000MHZ LVPECL Si570 135 MHz LVPECL 3.3V
570ACA000919DG Skyworks有源晶振 XTAL OSC XO 135.0000MHZ LVPECL Si570 135 MHz LVPECL 3.3V
570ACA000957DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si570 125 MHz LVPECL 3.3V
570ACA000958DG Skyworks有源晶振 XTAL OSC XO 74.2500MHZ LVPECL Si570 74.25 MHz LVPECL 3.3V
570ACA000973DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si570 125 MHz LVPECL 3.3V
570ACA001026DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si570 125 MHz LVPECL 3.3V
570ACA001055DG Skyworks有源晶振 XTAL OSC晶振 XO 103.1250MHZ LVPECL Si570 103.125 MHz LVPECL 3.3V
570ACA001122DG Skyworks有源晶振 XTAL OSC XO 1.4000GHZ LVPECL SMD Si570 1.4 GHz LVPECL 3.3V
570ACA001154DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si570 156.25 MHz LVPECL 3.3V
570ACA001210DG Skyworks有源晶振 XTAL OSC XO 135.0000MHZ LVPECL Si570 135 MHz LVPECL 3.3V
570ACA001273DG Skyworks有源晶振 XTAL OSC XO 1.03125GHZ LVPECL Si570 1.03125 GHz LVPECL 3.3V
570ACA001432DG Skyworks有源晶振 XTAL OSC XO 72.0000MHZ LVPECL Si570 72 MHz LVPECL 3.3V
570ACA001479DG Skyworks有源晶振 XTAL OSC XO 431.9200MHZ LVPECL Si570 431.92 MHz LVPECL 3.3V
570ACA001527DG Skyworks有源晶振 XTAL OSC XO 875.0000MHZ LVPECL Si570 875 MHz LVPECL 3.3V
570ACA001528DG Skyworks有源晶振 XTAL OSC XO 19.9840MHZ LVPECL Si570 19.984 MHz LVPECL 3.3V
570ACA001557DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V
570ACA001617DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si570 156.25 MHz LVPECL 3.3V

上一页 余下全文

1/5

我要下单

  • 姓名
  • 手机
  • 留言

关于“7050mm差分晶振,差分晶体振荡器,贴片差分晶振,差分石英振荡器,压控晶体振荡器,压控差分晶振,LVDS差分晶振,差分有源振荡器”的相关产品

Si535路由器晶振,535FB156M250DG,思佳讯差分晶振Si535路由器晶振,535FB156M250DG,思佳讯差分晶振535FC212M500DGR,Skyworks思佳讯有源振荡器,Si535网络晶振535FC212M500DGR,Skyworks思佳讯有源振荡器,Si535网络晶振

Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振Skyworks差分振荡器,591BC156M250DGR,Si591红外探测器晶振591FC300M000DGR,Si591石英振荡器,思佳讯航空航天6G晶振591FC300M000DGR,Si591石英振荡器,思佳讯航空航天6G晶振

570FCA000133DGR,Si570光学模块晶振,Skyworks有源振荡器570FCA000133DGR,Si570光学模块晶振,Skyworks有源振荡器Si570发射基站晶振,Skyworks压控振荡器,570ACA000290DGRSi570发射基站晶振,Skyworks压控振荡器,570ACA000290DGR

Si530测试胎压晶振,思佳讯低抖动有源晶振,530AC220M000DGSi530测试胎压晶振,思佳讯低抖动有源晶振,530AC220M000DG530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振530FC300M000DG,Skyworks无线发射塔晶振,Si530石英差分晶振

Skyworks航空设备晶振,Si550压控差分晶振,550AG400M000DGRSkyworks航空设备晶振,Si550压控差分晶振,550AG400M000DGRSi550红外探测器晶振,550AE320M000DG,Skyworks有源压控晶振Si550红外探测器晶振,550AE320M000DG,Skyworks有源压控晶振

热点推荐

lora模块低功耗晶振供应ECS-2520MVQ-250-BN-TR兼容多种输出方式的时钟晶振十分适合数字视频CB3LV-3C-16M0000ECS发布具有里程碑意义的高性能SMD振荡器ECS-3953M-120-BN-TRLVDS差分晶振ECX2-LMV-7CN-125.000-TR用于存储区域网络应用Abracon晶振紧凑型屏蔽SMD电源汽车用电感器ASPIAIG-S6055
