Renesas差分晶体振荡器,XPP736175.000000I,光模块6G晶振

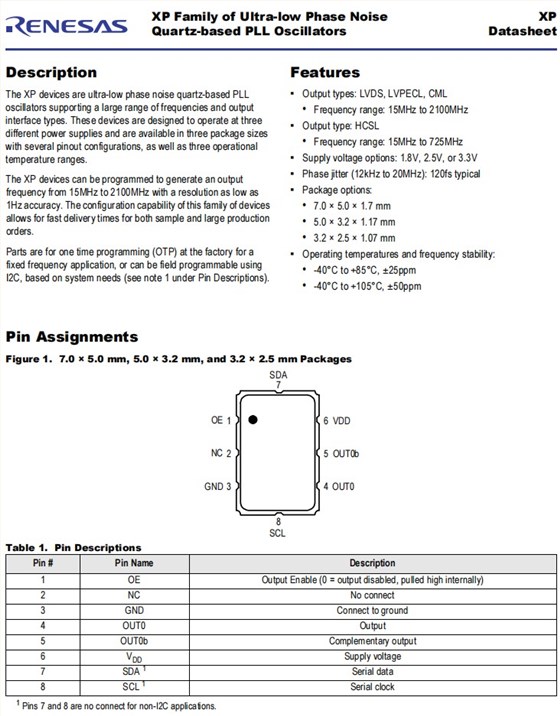

Renesas差分晶体振荡器,XPP736175.000000I,光模块6G晶振，进口晶振，Renesas瑞萨电子晶振，XP系列晶振，编码为：XPP736175.000000I，频率为：175.000MHz，小体积晶振尺寸：7.0x5.0mm，8垫脚贴片晶振，LVPECL输出差分晶体振荡器，石英晶振，有源晶振，XP设备是超低相位噪声的基于石英的PLL振荡器，支持大范围的频率和输出接口类型。这些设备被设计为操作在三种不同的电源供应，并可在三种包装尺寸与几种针形配置，以及三种操作温度范围。贴片晶振XP设备可以通过编程产生从15MHz到2100MHz的输出频率，分辨率低至1Hz的精度。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。应用于：通讯设备，平板电脑，物联网，无线网络，蓝牙模块，路由器，交换机，以太网，光纤通道，航空航天电子，医疗设备，安防设备等应用。

Renesas差分晶体振荡器,XPP736175.000000I,光模块6G晶振参数表

Parameter	TestCondition		Minimum	Typical	Maximum	Units
OutputFrequencyRange	LVDS,LVPECL,CML.			—	175.000	MHz
OutputFrequencyRange	HCSL.		15	—	725
Frequency Stability	Temperature=-40°Cto+85°C.		—	—	±25	ppm
Frequency Stability	Temperature=-40°Cto+105°C.		—	—	±50	ppm
Frequency Tolerance (25°C)	Temperature=25°C.		-15	±10	-15	ppm
Aging(1styear)	TA=25°C.		—	—	±3	ppm
Aging(10years)	TA=25°C.		—	—	±10	ppm
Output Load	LVDS.	Differential.	—	100	—	Ω
	LVPECL.	VDD-2.0V.	—	50	—
	HCSL.	ToGND.	—	50	—
Start-up Time	Output valid time after VDD meets minimum specified level.		—	5	—	ms
OutputRiseTime	LVDS.	20% – 80%, 156.25MHz	—	299	400	ps
	LVPECL.		—	287	400
	HCSL.		—	306	400
	CML		—	301	400
OutputFallTime	LVDS.	20% – 80%, 156.25MHz	—	279	400	ps
	LVPECL.		—	274	400
	HCSL.		—	284	400
	CML		—	279	400
OutputClockDutyCycle	LVDS.	156.25MHz	48	—	52	%
	LVPECL.	156.25MHz	48	—	52
	HCSL.	156.25MHz	48	—	52
	CML	156.25MHz	48	—	52
OutputEnable/DisableTime	—	—	—	1	—	ms

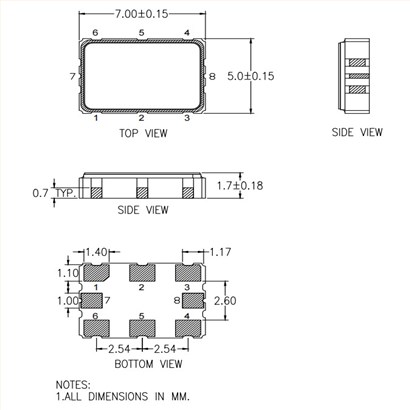

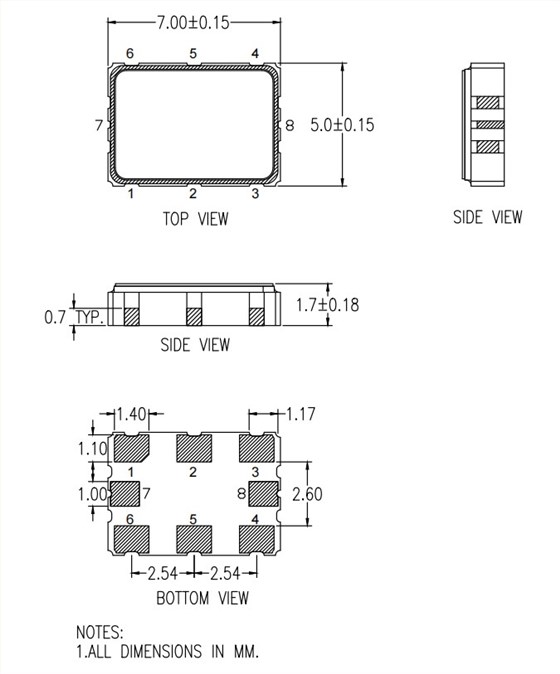

Renesas差分晶体振荡器,XPP736175.000000I,光模块6G晶振尺寸图

Renesas差分晶体振荡器,XPP736175.000000I,光模块6G晶振

产品特点：

输出类型：LVDS、LVPECL、CML
频率范围：15MHz至2100MHz
输出类型：HCSL
频率范围：15MHz至725MHz石英晶振
电源电压选项：1.8V、2.5V或3.3V
相位抖动（12kHz至20MHz）：典型值为120fs
程序包选项：7.0×5.0×1.7毫米，5.0×3.2×1.17毫米，3.2×2.5×1.07毫米
工作温度和频率稳定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm

晶振编码	品牌	描述	系列	频率	输出
XPP736625.000000I	Renesas晶振	0625.000000MHZ 3.3VDC LVPECL 705	XPP	625 MHz	LVPECL
XPP736156.250000I	Renesas晶振	0156.250000MHZ 3.3VDC LVPECL 705	XPP	156.25 MHz	LVPECL
XPP736312.500000I	Renesas晶振	0312.500000MHZ 3.3VDC LVPECL 705	XPP	312.5 MHz	LVPECL
XPP336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	100 MHz	LVPECL
XPP736161.132812I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	161.132812 MHz	LVPECL
XPP736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	125 MHz	LVPECL
XPP316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	156.25 MHz	LVPECL
XPP736212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	212.5 MHz	LVPECL
XPP736156.253906I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	156.253906 MHz	LVPECL
XPP736175.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	175 MHz	LVPECL
XPP736100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	100 MHz	LVPECL
XPP736106.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	106.25 MHz	LVPECL
XPP735156.250005I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	156.250005 MHz	LVPECL
XPP736122.880000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	122.88 MHz	LVPECL
XPP736124.992000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	124.992 MHz	LVPECL
XPP736200.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	200 MHz	LVPECL
XPP526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPP	156.25 MHz	LVPECL
XPP726212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	212.5 MHz	LVPECL
XPP736250.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	250 MHz	LVPECL
XPP726312.510900I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	312.5109 MHz	LVPECL
XPP736915.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	915 MHz	LVPECL
XPP336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	830 MHz	LVPECL
XPP336156.253906I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	156.253906 MHz	LVPECL
XPP336250.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	250 MHz	LVPECL
XPP736161.132580I	有源晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	161.13258 MHz	LVPECL
XPP726445.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	445.5 MHz	LVPECL
XPP726160.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	160 MHz	LVPECL
XPP336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	312.5 MHz	LVPECL
XPP516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPP	625 MHz	LVPECL
XPP336050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	50 MHz	LVPECL
XPP336207.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	207.5 MHz	LVPECL
XPP726312.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	312.5 MHz	LVPECL
XPP336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	40 MHz	LVPECL
XPP336A00.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	1 GHz	LVPECL
XPP736159.375000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	159.375 MHz	LVPECL
XPP536161.132812I	Renesas晶振	XTAL OS XO 161.132812MHZ LVPECL	XPP	161.132812 MHz	LVPECL
XPP726156.257813I	Renesas晶振	XTAL OS XO 156.257813MHZ LVPECL	XPP	156.257813 MHz	LVPECL
XPP726100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XPP	100 MHz	LVPECL
XPP526155.520000I	Renesas晶振	XTAL OSC XO 155.5200MHZ LVPECL	XPP	155.52 MHz	LVPECL
XPP516100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XPP	100 MHz	LVPECL
XPP536156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL
XPP726127.500000I	Renesas晶振	XTAL OSC XO 127.5000MHZ LVPECL	XPP	127.5 MHz	LVPECL
XPP526150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVPECL	XPP	150 MHz	LVPECL
XPP736A00.000000I	Renesas晶振	XTAL OSC XO 1.0000GHZ LVPECL SMD	XPP	1 GHz	LVPECL
XPP535156.25000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL
XPP726445.500001I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	445.500001 MHz	LVPECL
XPP735245.760000K	Renesas晶振	XTAL OSC XO 245.7600MHZ LVPECL	XPP	245.76 MHz	LVPECL
XPP535312.500000K	Renesas晶振	XTAL OSC XO 312.5000MHZ LVPECL	XPP	312.5 MHz	LVPECL
XPP735100.000000K	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XPP	100 MHz	LVPECL
XPP735156.250000K	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL
