日蚀水晶谐振器,E1WSDA6-32.768K-TR,手表6G晶振，尺寸8.0x3.8mm，频率32.768KHZ，美国Ecliptek晶振，日蚀无源晶振，SMD晶振，32.768K音叉晶体，水晶振动子，32.768KHZ贴片晶振，8038mm无源晶振，无源贴片晶振，陶瓷谐振器，无源晶体，SMD晶体谐振器，低损耗晶振，低功耗无源晶振，高性能晶振，水表专用晶振，时钟应用晶振，计时器专用晶振，小型设备晶振，智能音响晶振，具有低功耗高性能的特点。
SMD晶振产品常用于水表，时钟应用，计时器，小型设备，无线设备，智能音响等领域。日蚀水晶谐振器,E1WSDA6-32.768K-TR,手表6G晶振.
日蚀水晶谐振器,E1WSDA6-32.768K-TR,手表6G晶振参数表
ELECTRICAL SPECIFICATIONS
Nominal Frequency
32.768KHZ
Frequency Tolerance
±20ppm at 25°C
Frequency Stability Temperature
Coefficient
-0.034±0.006ppm/(Change in °C)² Maximum
Turn over Temperature
25°C ±5°C
Aging at 25°C
±3ppm/year Maximum
Operating Temperature Range
-40°C to +85°C
Load Capacitance
6 pF Parallel Resonant
12.5pF Parallel Resonant
Shunt Capacitance
1.35pF Typical
Motional Capacitance
3.0fF Typical
Equivalent Series Resistance
50,000 Ohms Maximum
Mode of Operation
Fundamental
Drive Level
1µWatt Maximum
Crystal Cut
Tuning Fork
Storage Temperature Range
-55°C to +125°C
Insulation Resistance
Measured at 100Vdc
500 Megaohms Minimum

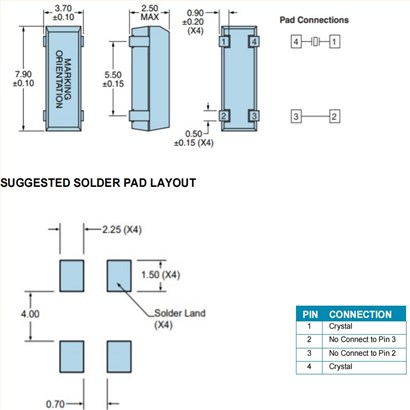

日蚀水晶谐振器,E1WSDA6-32.768K-TR,手表6G晶振尺寸图
日蚀水晶谐振器,E1WSDA6-32.768K-TR,手表6G晶振
产品特性：
手表水晶谐振器3.7mm x 7.9mm x 2.5mm 4垫
塑料表面安装（无源SMD晶振）
非常低的老化
符合RoHS标准且无铅
| 制造商零件编号 | 供应商 | 描述 | 工作温度 |
| E1SJA18-19.6608M TR | Ecliptek晶振 | CRYSTAL 19.6608MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-9.8304M TR | Ecliptek晶振 | CRYSTAL 9.8304MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-32.000M TR | Ecliptek晶振 | CRYSTAL 32MHZ 18PF SMD | - |
| EA2025MA10-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EA2025MA10-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 10PF SMD | -40°C ~ 85°C |
| E1WCDA12-32.768K | Ecliptek晶振 | CRYSTAL 32.7680KHZ 12.5PF TH | -10°C ~ 60°C |
| E1SJA18-18.000M TR | Ecliptek晶振 | CRYSTAL 18.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-20.000M TR | Ecliptek晶振 | CRYSTAL 20.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-14.7456M TR | Ecliptek晶振 | CRYSTAL 14.7456MHZ 18PF SMD | -40°C ~ 85°C |
| E1SCA18-7.3728M TR | Ecliptek晶振 | CRYSTAL 7.3728MHZ 18PF SMD | -40°C ~ 85°C |
| E1SEA18-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 18PF SMD | -20°C ~ 70°C |
| E1SEA18-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 18PF SMD | -20°C ~ 70°C |
| E1SJA18-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-11.0592M TR | Ecliptek晶振 | CRYSTAL 11.0592MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-8.000M TR | Ecliptek晶振 | CRYSTAL 8.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-3.579545M TR | Ecliptek晶振 | CRYSTAL 3.579545MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-4.194304M TR | Ecliptek晶振 | CRYSTAL 4.194304MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-16.9344M TR | Ecliptek晶振 | CRYSTAL 16.9344MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-5.000M TR | Ecliptek晶振 | CRYSTAL 5.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-13.500M TR | Ecliptek晶振 | CRYSTAL 13.5000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-9.216M TR | Ecliptek晶振 | CRYSTAL 9.2160MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-12.288M TR | Ecliptek晶振 | CRYSTAL 12.2880MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-4.500M TR | Ecliptek晶振 | CRYSTAL 4.5000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-15.000M TR | Ecliptek晶振 | CRYSTAL 15.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-4.433619M TR | Ecliptek晶振 | CRYSTAL 4.433619MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-16.384M TR | Ecliptek晶振 | CRYSTAL 16.3840MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-6.7458M TR | Ecliptek晶振 | CRYSTAL 6.7458MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-15.360M TR | Ecliptek晶振 | CRYSTAL 15.3600MHZ 18PF SMD | -40°C ~ 85°C |
| E1SDA18-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 0°C ~ 70°C |
| E1SJA18-4.9152M TR | Ecliptek晶振 | CRYSTAL 4.9152MHZ 18PF SMD | -40°C ~ 85°C |
| E1SGA18-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 0°C ~ 70°C |
| EA2532QA18-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532QA18-20.000M TR | ECLIPTEK Crystal | CRYSTAL 20.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532LA18-30.000M TR | Ecliptek晶振 | CRYSTAL 30.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532QA18-13.560M TR | Ecliptek晶振 | CRYSTAL 13.5600MHZ 18PF SMD | -40°C ~ 85°C |
| EB2532YA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB1216JA10-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB1620JA10-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EA2025JA18-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1WSDA12-32.768K TR | Ecliptek晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | -10°C ~ 60°C |
| EA2025JA18-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2025JA10-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB3250JA12-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB3250AYA08-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 8PF SMD | -40°C ~ 125°C |
| EB3250YA12-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB3250AYA08-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 8PF SMD | -40°C ~ 125°C |
| E1SJA18-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532LA18-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532UA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB2532JA12-30.000M TR | Ecliptek晶振 | CRYSTAL 30.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB2532JA12-18.432M TR | Ecliptek晶振 | CRYSTAL 18.4320MHZ 12PF SMD | -40°C ~ 85°C |
| EB2532YA12-18.432M TR | Ecliptek晶振 | CRYSTAL 18.4320MHZ 12PF SMD | -40°C ~ 125°C |
| EB1216JA10-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB1216JA10-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB3250JA12-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB3250YA12-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB3250YA12-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 12PF SMD | -40°C ~ 125°C |
