6G无线蓝牙晶振,XTL751-S999-548,希华音叉晶振

产品简介

6G无线蓝牙晶振,XTL751-S999-548,希华音叉晶振，尺寸1.6x1.0mm，频率32.768KHZ，Siward无源晶体，台湾希华晶振，石英水晶振动子，石英晶体谐振器，无源石英晶振，石英贴片晶振，1610mm贴片晶体，32.768K音叉晶体，无源晶振，SMD晶体，32.768KHZ贴片晶振，石英晶体，环保晶振，WLAN晶振，智能计量晶振，无线蓝牙晶振，娱乐设备晶振，视听设备晶振，便携式设备晶振，小型设备晶振，游戏机晶振，低损耗晶振，低功耗晶振，高品质晶振，高质量晶振，具有高质量低功耗的特点。

晶振外观使用金属材料封装的,具有高稳定性,高可靠性的石英晶体,晶振外观本身使用金属封装,充分的密封性能,可确保其高可靠性,采用编带包装,外包装采用朔胶盘,可在自动贴片机上对应自动贴装等优势.6G无线蓝牙晶振,XTL751-S999-548,希华音叉晶振.

产品详情

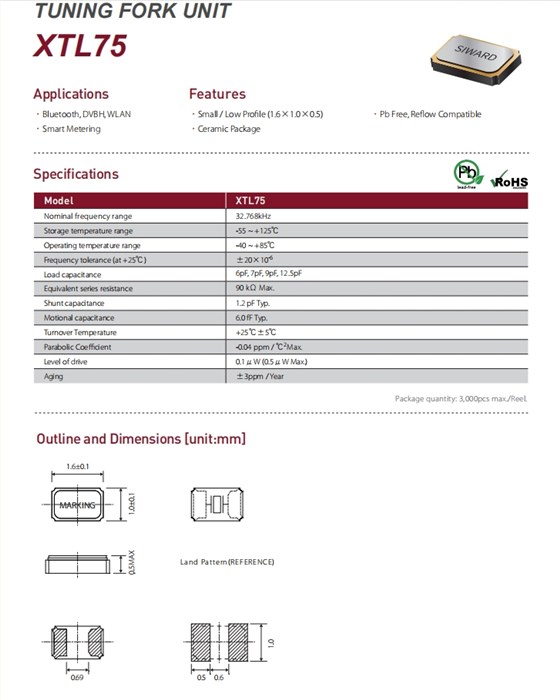

6G无线蓝牙晶振,XTL751-S999-548,希华音叉晶振 参数表

Model

XTL75

Nominal frequency range

32.768kHz

Storage temperature range

-55 ~ +125℃

Operating temperature range

-40 ~ +85℃

Frequency tolerance (at +25℃)

±20×10-6

Load capacitance

6pF, 7pF, 9pF, 12.5pF

Equivalent series resistance

90 kΩMax.

Shunt capacitance

1.2 pF Typ.

Motional capacitance

6.0 fF Typ.

Turnover Temperature

+25℃±5℃

Parabolic Coecient

-0.04 ppm /℃2Max.

Level of drive

0.1μW (0.5μW Max.)

Aging

±3ppm / Year

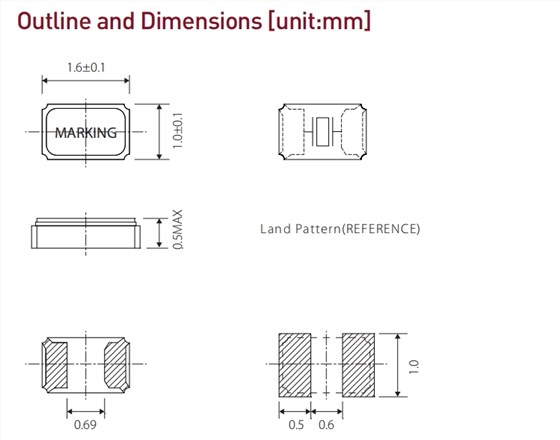

6G无线蓝牙晶振,XTL751-S999-548,希华音叉晶振尺寸图

6G无线蓝牙晶振,XTL751-S999-548,希华音叉晶振

32.768K音叉晶体产品特性：

小/低Pro le（1.6×1.0×0.5）

陶瓷包装

轻薄型低成本

Mfr Part #	Mfr	Description	Series	Frequency	Frequency Tolerance	Load Capacitance
XTL721-Q23-048	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	6pF
XTL721-S349-005	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	7pF
XTL721-S999-301	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	9pF
XTL721-S999-429	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	6pF
XTL741-S999-319	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	9pF
XTL741-U11-402	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	7pF
XTL741-S999-298	SIWARD Crystal	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	12.5pF
XTL741-S999-379	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	7pF
XTL741-S999-327	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL74	32.768 kHz	±20ppm	4pF
XTL721-S999-286	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL72	32.768 kHz	±20ppm	12.5pF
XTL751-S999-544	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL75	32.768 kHz	±20ppm	12.5pF
XTL751-S999-548	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL75	32.768 kHz	±20ppm	9pF
XTL751-S999-420	Siward希华晶振	CRYSTAL 32.768 KHZ 20PPM CRYSTAL	XTL75	32.768 kHz	±20ppm	7pF
