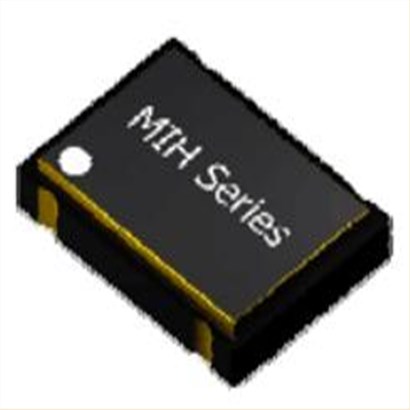

MIH302548AH-50.000MHZ-T,7050mm,Mmdcomp振荡器,导航晶振，美国进口晶振，Mmdcomp晶振，麦迪康晶振，型号：MIH系列，编码为：MIH302548AH-50.000MHZ-T，频率为：50.000MHz，电压：3.3V，频率稳定性：±25ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，石英晶振，有源晶振，HCMOS输出晶振，石英晶体振荡器，SMD晶振，符合RoHS。具有超小型，轻薄型，高品质，高性能，耐热及耐环境等特点。应用于：移动通讯晶振，导航仪晶振，GPS定位晶振，物联网晶振，车载控制器晶振，安防设备等应用。

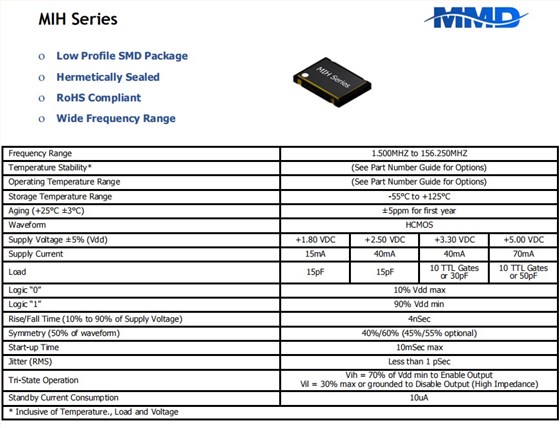

MIH302548AH-50.000MHZ-T,7050mm,Mmdcomp振荡器,导航晶振,参数表
Frequency Range
50.000MHZ
Temperature Stability*

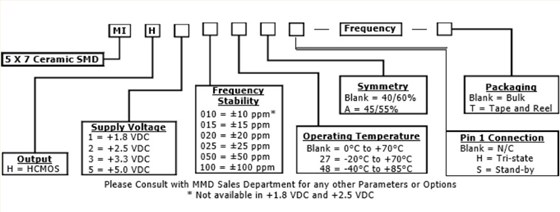

(See Part Number Guide for Options)
Operating Temperature Range
(See Part Number Guide for Options)
Storage Temperature Range
-55°C to +125°C
Aging (+25°C ±3°C)
±5ppm for first year
Waveform
HCMOS
Supply Voltage ±5% (Vdd)
+1.80 VDC
+2.50 VDC
+3.30 VDC
+5.00 VDC
Supply Current
15mA
40mA
40mA
70mA
Load
15pF
15pF
10 TTL Gates
or 30pF
10 TTL Gates
or 50pF
Logic “0”
10% Vdd max
Logic “1”
90% Vdd min
Rise/Fall Time (10% to 90% of Supply Voltage)
4nSec
Symmetry (50% of waveform)
40%/60% (45%/55% optional)
Start-up Time
10mSec max
Jitter (RMS)
Less than 1 pSec
Tri-State Operation
Vih = 70% of Vdd min to Enable Output
Vil = 30% max or grounded to Disable Output (High Impedance)
Standby Current Consumption
10uA
* Inclusive of Temperature., Load and Voltage

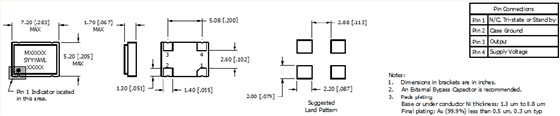

MIH302548AH-50.000MHZ-T,7050mm,Mmdcomp振荡器,导航晶振,尺寸图
| 晶振编码 | 品牌 | 描述 | 系列 |
| MIH302548AH-25.000MHZ-T | Mmdcomp晶振 | OSC XO 25MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-50.000MHZ-T | Mmdcomp晶振 | OSC XO 50MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-30.000MHZ-T | Mmdcomp晶振 | OSC XO 30MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-12.000MHZ-T | Mmdcomp晶振 | OSC XO 12MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-18.432MHZ-T | Mmdcomp晶振 | OSC XO 18.432MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-8.000MHZ-T | Mmdcomp晶振 | OSC XO 8MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-40.000MHZ-T | Mmdcomp晶振 | OSC XO 40MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-16.000MHZ-T | Mmdcomp晶振 | OSC XO 16MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-24.000MHZ-T | Mmdcomp晶振 | OSC XO 24MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-10.000MHZ-T | Mmdcomp晶振 | OSC XO 10MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-48.000MHZ-T | Mmdcomp晶振 | OSC XO 48MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-4.000MHZ-T | Mmdcomp晶振 | OSC XO 4MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-33.333MHZ-T | Mmdcomp晶振 | OSC XO 33.333MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-29.4912MHZ-T | 振荡器 | OSC XO 29.4912MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-11.0592MHZ-T | Mmdcomp晶振 | OSC XO 11.059MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-3.6864MHZ-T | Mmdcomp晶振 | OSC XO 3.6864MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-7.3728MHZ-T | Mmdcomp晶振 | OSC XO 7.3728MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-24.576MHZ-T | Mmdcomp晶振 | OSC XO 24.576MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-20.000MHZ-T | Mmdcomp晶振 | OSC XO 20MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-14.7456MHZ-T | Mmdcomp晶振 | OSC XO 14.7456MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-32.000MHZ-T | Mmdcomp晶振 | OSC XO 32MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-16.384MHZ-T | Mmdcomp晶振 | OSC XO 16.384MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-1.8432MHZ-T | Mmdcomp晶振 | OSC XO 1.8432MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-27.000MHZ-T | Mmdcomp晶振 | OSC XO 27MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-33.000MHZ-T | Mmdcomp晶振 | OSC XO 33MHZ 3.3V HCMOS SMD | MIH |
| MIH302548AH-14.31818MHZ-T | Mmdcomp晶振 | OSC XO 14.31818MHZ 3.3V HCMOS SM | MIH |
