223-000306-20,32.768KHz,8038mm,Oscilent数字显示晶振,美国进口晶振,Oscilent奥斯康利晶振,型号:223系列,编码为:223-000306-20,频率为:32.768KHz,负载电容:6pF,精度:±20ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:8.0x3.8mm晶振,四脚贴片晶振,石英晶振,陶瓷晶振,SMD晶振,8038晶振,石英晶体谐振器,无铅环保晶振。应用于:通讯设备晶振,时钟晶振,钟表电子晶振,仪器仪表设备晶振,数字显示晶振,电话机晶振,数码电子晶振等应用。
223-000306-20,32.768KHz,8038mm,Oscilent数字显示晶振,产品特点:

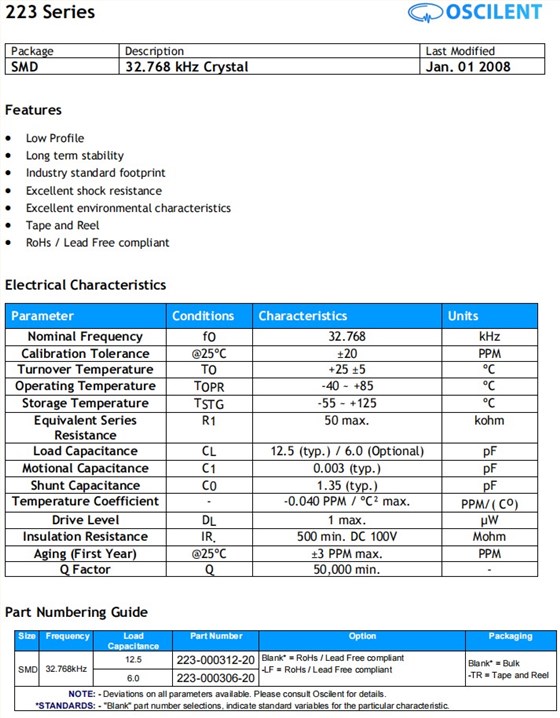

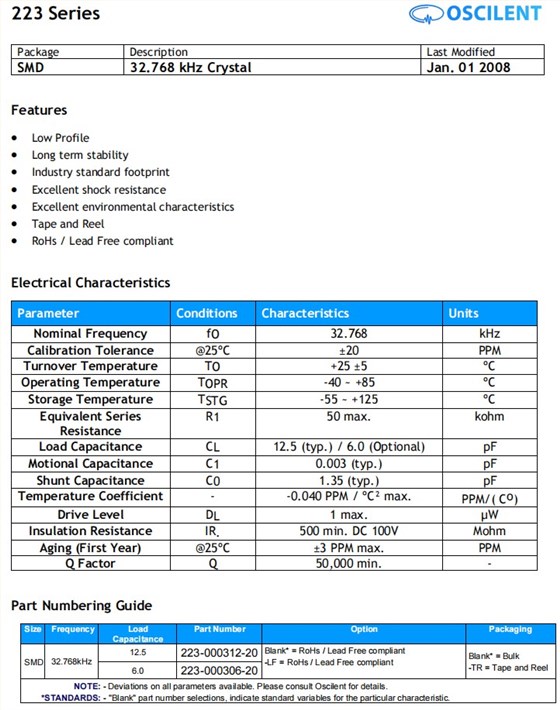

223-000306-20,32.768KHz,8038mm,Oscilent数字显示晶振,参数表
Parameter
Conditions
Characteristics
Units
NominalFrequency
fO
32.768
kHz
CalibrationTolerance
@25ºC
±20
PPM
TurnoverTemperature
TO
+25±5
ºC
OperatingTemperature
TOPR
-40~+85
ºC
StorageTemperature
TSTG
-55~+125
ºC
EquivalentSeries
R1
50max.
kohm
Resistance
LoadCapacitance
CL
12.5(typ.)/6.0(Optional)
pF
MotionalCapacitance
C1
0.003(typ.)
pF
ShuntCapacitance
C0
1.35(typ.)
pF
TemperatureCoefficient
-
-0.040PPM/ºC²max.
PPM/(Co)
DriveLevel
DL
1max.
µW
InsulationResistance
IR.
500min.DC100V
Mohm
Aging(FirstYear)
@25ºC
±3PPMmax.
PPM
QFactor
Q
50,000min.
-

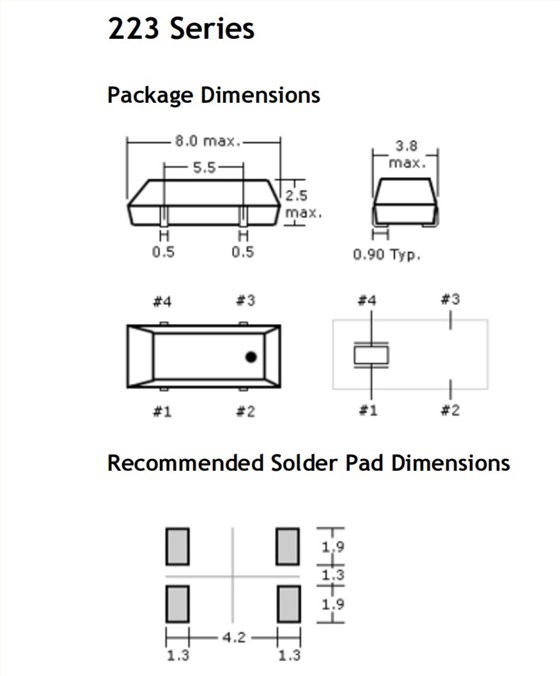

223-000306-20,32.768KHz,8038mm,Oscilent数字显示晶振,尺寸图
