NF7-12.288-B-A-B-A-32pF,7050mm,12.288MHz,NF7,NEL晶体谐振器

产品简介

NF7-12.288-B-A-B-A-32pF,7050mm,12.288MHz,NF7,NEL晶体谐振器，美国进口晶振，NEL耐尔晶振，型号：NF7系列，编码为：NF7-12.288-B-A-B-A-32pF，频率为：12.288MHz，频率容差：±50ppm，老化：±3ppm/year，工作温度范围：-20℃至+70℃，频率稳定性：±30ppm，负载电容：32pF，小体积晶振尺寸：7.0x5.0x1.5mm封装，四脚贴片晶振，石英晶体谐振器，石英晶振，无源晶振，7050晶振，SMD晶振。具有超小型，轻薄型，高性能，高品质，高质量等特点。被广泛应用于：通讯设备晶振，汽车电子晶振，无线蓝牙晶振，物联网晶振，数码电子等应用。

产品详情

NF7-12.288-B-A-B-A-32pF,7050mm,12.288MHz,NF7,NEL晶体谐振器，产品特点：

满足NEL对产品可靠性的要求
用户指定的公差可用
无引线陶瓷封装
适用于回流焊
宽频率范围8.0MHz至80.0MHz
自动安装，贴片晶振
抗冲击性：在75厘米高的2mm不锈钢板上进行3次跌落试验
玻璃密封

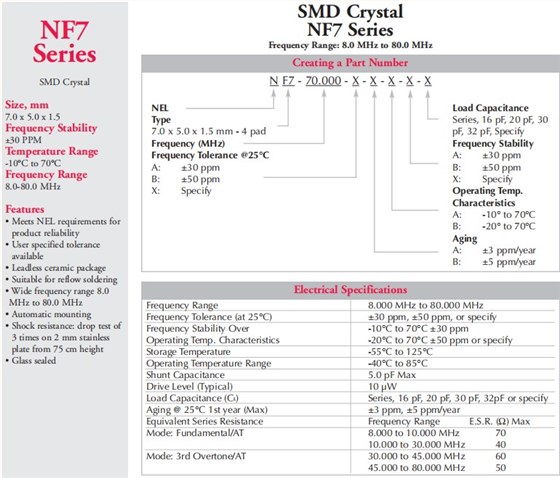

NF7-12.288-B-A-B-A-32pF,7050mm,12.288MHz,NF7,NEL晶体谐振器参数表

Frequency Range							12.288MHz
Frequency Tolerance (at 25°C)							±30 ppm, ±50 ppm, or specify
Frequency Stability Over Operating Temp. Characteristics							-10°C to 70°C ±30 ppm -20°C to 70°C ±50 ppm or specify
Storage Temperature							-55°C to 125°C
Operating Temperature Range							-40°C to 85°C
Shunt Capacitance							5.0 pF Max
Drive Level (Typical)							10 µW
Load Capacitance (CL)							Series, 16 pF, 20 pF, 30 pF, 32pF or specify
Aging @ 25°C 1st year (Max)							±3 ppm, ±5 ppm/year
Equivalent Series Resistance							Frequency Range E.S.R. (Ω) Max
Mode: Fundamental/AT							8.000 to 10.000 MHz 70 10.000 to 30.000 MHz 40
Mode: 3rd Overtone/AT							30.000 to 45.000 MHz 60 45.000 to 80.000 MHz 50
