SQG22C2A481-25.000MHz,SQG22C,2520mm,Suntsu六脚贴片晶振

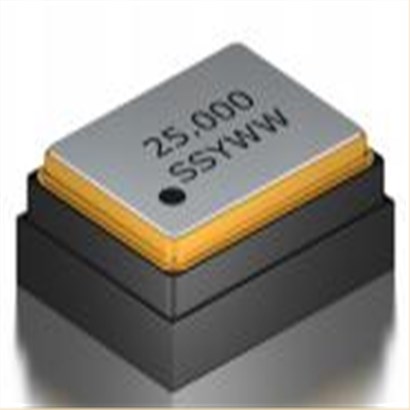

SQG22C2A481-25.000MHz,SQG22C,2520mm,Suntsu六脚贴片晶振，Suntsu晶振，松图晶振，美国进口晶振，型号：SQG22C系列，产品编码为：SQG22C2A481-25.000MHz，频率为：25.000MHz，电压：2.5V，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.5x2.0mm封装，六脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器，具有超小型，轻薄型，高品质，高性能等特点。应用于：以太网（10G/40G/100G），基站，无线蓝牙，通信设备等应用。

SQG22C2A481-25.000MHz,SQG22C,2520mm,Suntsu六脚贴片晶振，产品特点：

•±20ppm（频率稳定性）可用

•宽频率范围

•CMOS石英晶振

•编程振荡器

•磁带和卷轴

20180421171456_6296统一

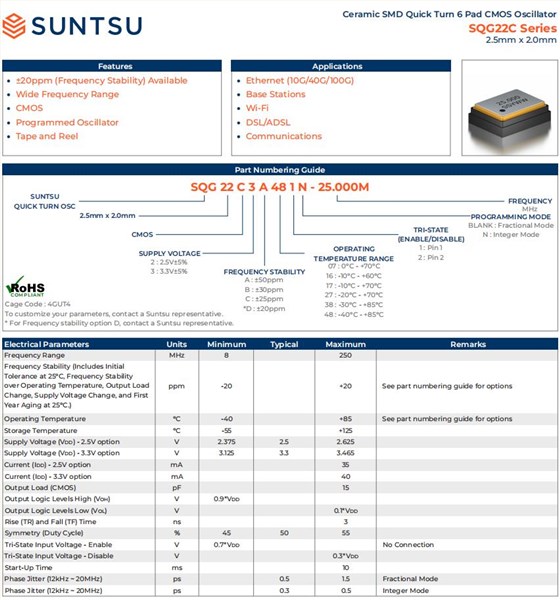

SQG22C2A481-25.000MHz,SQG22C,2520mm,Suntsu六脚贴片晶振,参数表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	MHz	25
Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.)	ppm	-20		+20	See part numbering guide for options
Operating Temperature	°C	-40		+85	See part numbering guide for options
Storage Temperature	°C	-55		+125
Supply Voltage (VDD) - 2.5V option	V	2.375	2.5	2.625
Supply Voltage (VDD) - 3.3V option	V	3.125	3.3	3.465
Current (IDD) - 2.5V option	mA			35
Current (IDD) - 3.3V option	mA			40
Output Load (CMOS)	pF			15
Output Logic Levels High (VOH)	V	0.9*VDD
Output Logic Levels Low (VOL)	V			0.1*VDD
Rise (TR) and Fall (TF) Time	ns			3
Symmetry (Duty Cycle)	%	45	50	55
Tri-State Input Voltage - Enable	V	0.7*VDD			No Connection
Tri-State Input Voltage - Disable	V			0.3*VDD
Start-Up Time	ms			10
Phase Jitter (12kHz ~ 20MHz)	ps		0.5	1.5	Fractional Mode
Phase Jitter (12kHz ~ 20MHz)	ps		0.3	0.5	Integer Mode

20181130160053_3983统一

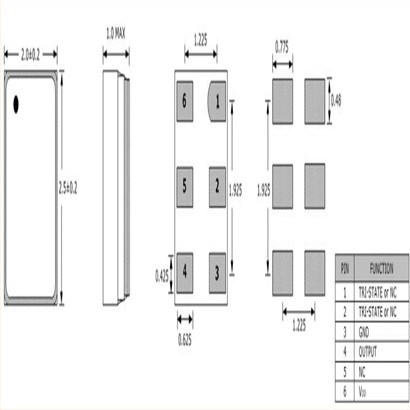

SQG22C2A481-25.000MHz,SQG22C,2520mm,Suntsu六脚贴片晶振,尺寸图

石英晶体振荡器	包装尺寸	输出
SQG22C2A07-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A071-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A16-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A161-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A17-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A171-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A27-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A271-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A38-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A381-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A48-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2A481-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B07-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B071-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B16-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B161-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B17-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B171-8.000M-250.000M	(6 PAD) OSCILLATOR石英晶振	CMOS
SQG22C2B27-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B271-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B38-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B381-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B48-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2B481-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C07-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C071-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C16-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C161-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C17-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C171-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
SQG22C2C27-8.000M-250.000M	2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS
