ECS-120-18-23G-JGN-TR/ECS-23G/6035mm/12MHZ/ECS

产品简介

ECS-120-18-23G-JGN-TR/ECS-23G/6035mm/12MHZ/ECS，尺寸为6035mm,频率为12MHZ，ECS晶振，美国伊西斯晶振，进口贴片晶振，无源晶体，音叉晶体，无源SMD晶振，水晶振动子，超小型晶振，高质量晶振，GPS定位系统晶振，电信网络晶振，无线充电应用晶振，仪器设备晶振，智能音响晶振，医疗设备晶振，基站专用晶振，智能产品晶振。

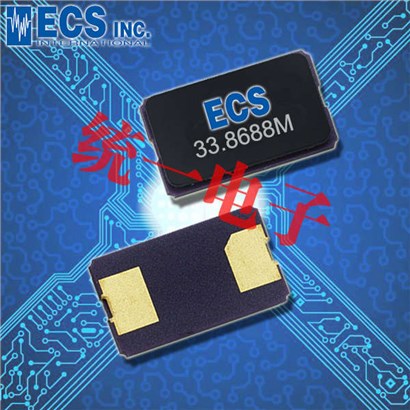

微型ECS-23G是一种紧凑的SMD晶体，陶瓷谐振器。这个行业标准的6x3.5x1.2mm陶瓷封装是GPS, WiFi，电信和无线充电应用。ECS-120-18-23G-JGN-TR/ECS-23G/6035mm/12MHZ/ECS.

产品详情

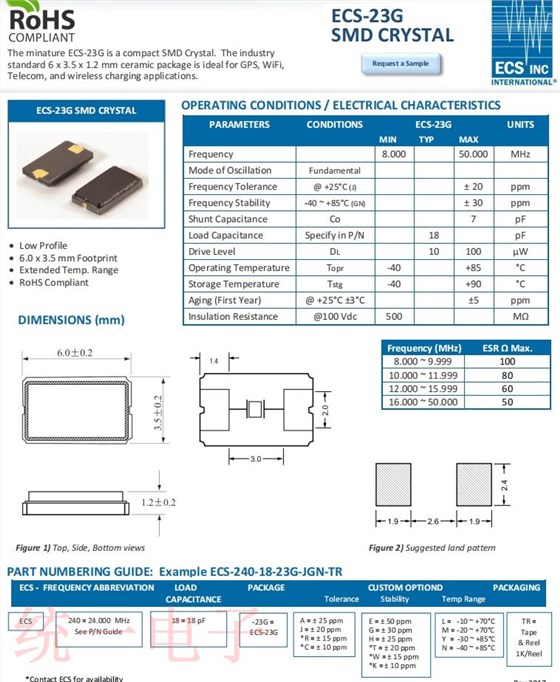

ECS-120-18-23G-JGN-TR/ECS-23G/6035mm/12MHZ/ECS参数表

PARAMETERS	CONDITIONS	ECS-23G			UNITS
		MIN	TYP	MAX
Frequency		8.000		50.000	MHz
Mode of Oscillation	Fundamental
Frequency Tolerance	@ +25°C(J)			±20	ppm
Frequency Stability	-40 ~ +85°C(GN)			± 30	ppm
ShuntCapacitance	Co			7	pF
Load Capacitance	SpecifyinP/N		18		pF
Drive Level	DL		10	100	μW
OperatingTemperature	Topr	-40		+85	°C
StorageTemperature	Tstg	-40		+90	°C
Aging(First Year)	@+25°C ±3°C			±5	ppm
Insulation Resistance	@100 Vdc	500			MΩ

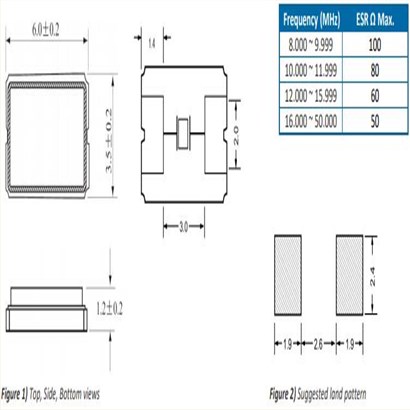

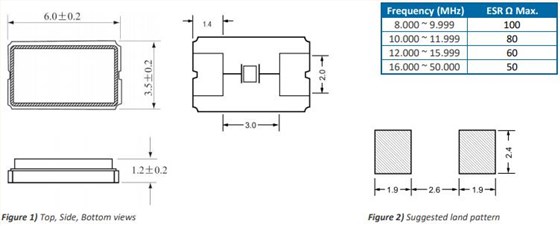

ECS-120-18-23G-JGN-TR/ECS-23G/6035mm/12MHZ/ECS尺寸图

特点

低调

•6.0x3.5毫米的足迹

•延长温度范围

•符合RoHS标准更多相关美国ECS晶振型号
