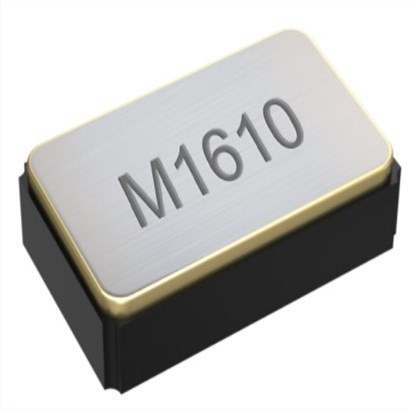

M1610-32.768kHz-±20ppm-12.5pF,32.768KHz,1610mm,PETERMANN品牌，德国进口晶振，PETERMANN晶振，彼得曼晶振，型号：M1610石英晶体，编码为：M1610-32.768kHz-±20ppm-12.5pF ，频率为：32.768KHz，负载电容：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0mm封装，两脚贴片晶振，石英晶振，无源晶振，音叉晶振，手表晶体，石英晶体谐振器，无铅晶振。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。应用程序：可穿戴设备晶振，通讯设备晶振，钟表电子晶振，汽车电子晶振，仪器仪表设备晶振，数字显示晶振等应用。
M1610-32.768kHz-±20ppm-12.5pF,32.768KHz,1610mm,PETERMANN品牌，产品特点：
最小的可用的低成本手表水晶
扩展工作温度范围高达-40℃至+125°C
优异的抗冲击性

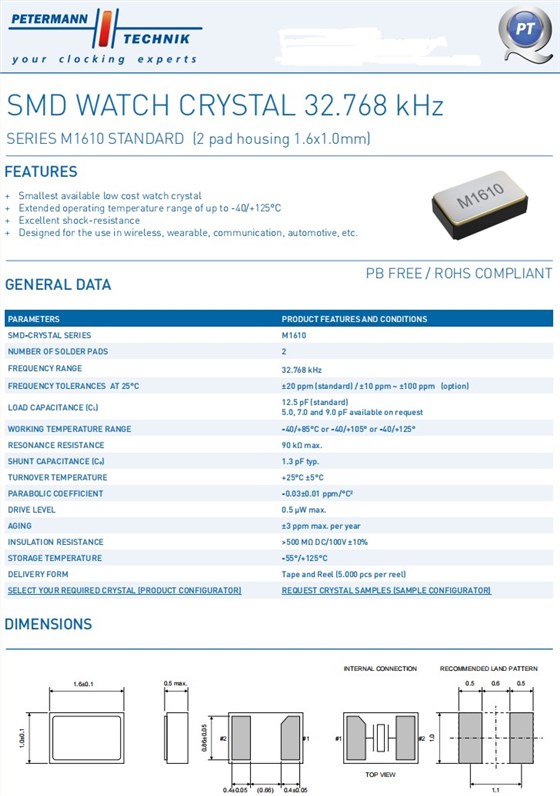

M1610-32.768kHz-±20ppm-12.5pF,32.768KHz,1610mm,PETERMANN品牌参数表
| PARAMETERS | PRODUCT FEATURES AND CONDITIONS |
| SMD-CRYSTAL SERIES | M1610 |
| NUMBER OF SOLDER PADS | 2 |
| FREQUENCY RANGE | 32.768 kHz |
| FREQUENCY TOLERANCES AT 25°C | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option) |
| LOAD CAPACITANCE (CL) | 12.5 pF (standard) |
| 5.0, 7.0 and 9.0 pF available on request | |
| WORKING TEMPERATURE RANGE | -40/+85°C or -40/+105° or -40/+125° |
| RESONANCE RESISTANCE | 90 kΩ max. |
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. |
| TURNOVER TEMPERATURE | +25°C ±5°C |
| PARABOLIC COEFFICIENT | -0.03±0.01 ppm/°C² |
| DRIVE LEVEL | 0.5 μW max. |
| AGING | ±3 ppm max. per year |
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% |
| STORAGE TEMPERATURE | -55°/+125°C |
| DELIVERY FORM | Tape and Reel (5.000 pcs per reel) |

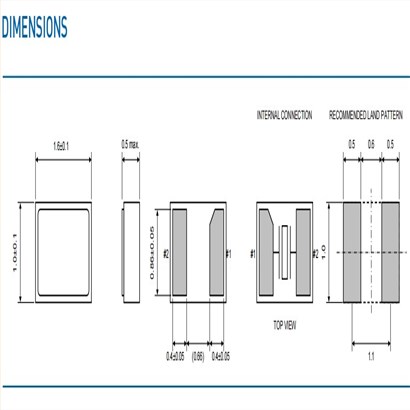

M1610-32.768kHz-±20ppm-12.5pF,32.768KHz,1610mm,PETERMANN品牌,尺寸图
