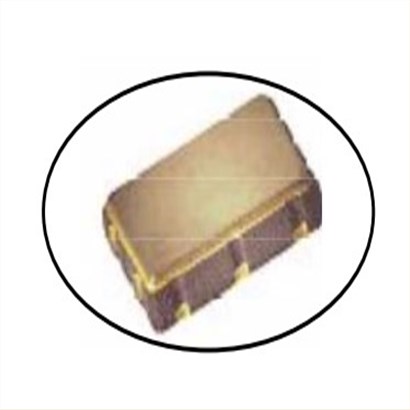

CRYSTEK压控晶体振荡器,CVXO-018TX-50-16.384,导航仪晶振

产品简介

CRYSTEK压控晶体振荡器,CVXO-018TX-50-16.384,导航仪晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号：CVXO-018T，编码为：CVXO-018TX-50-16.384，频率为：16.384MHz，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，HCMOS输出晶振，VCXO压控晶振，压控晶体振荡器，石英晶振，有源晶振，石英晶体振荡器，电源电压3.3V，设计以满足当今的3.3V电压控制晶体振荡器SMD应用的要求。CVXO-018T为ICT（电路内测试）提供了禁用功能。可提供16mm的磁带和卷轴。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低相位噪声，低电平，低损耗，低耗能等应用。贴片晶振，应用于：通讯设备，无线网络，蓝牙模块，物联网，GPS定位系统，移动电话、寻呼机等许多电子应用系统必不可少的关键部件。

产品详情

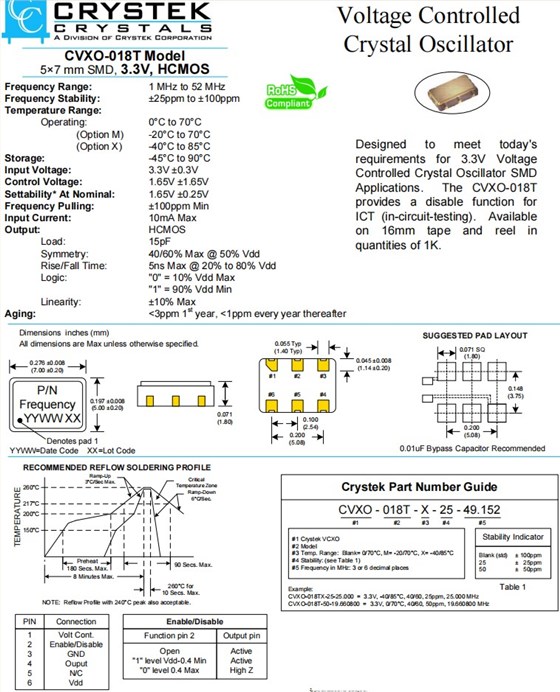

CRYSTEK压控晶体振荡器,CVXO-018TX-50-16.384,导航仪晶振,参数表

Frequency Range:	16.384 MHz
Frequency Stability:	±25ppm to ±100ppm
Temperature Range:	0°C to 70°C
Operating:	-20°C to 70°C
(Option M)	-40°C to 85°C
(Option X)	-45°C to 90°C
Storage:	3.3V ±0.3V
Input Voltage:	1.65V ±1.65V
Control Voltage:	1.65V ±0.25V
Settability* At Nominal:	±100ppm Min
Frequency Pulling:	10mA Max
Input Current:	HCMOS
Output:	15pF
Load:	40/60% Max @ 50% Vdd
Symmetry:	5ns Max @ 20% to 80% Vdd
Rise/Fall Time:	"0" = 10% Vdd Max
Logic:	"1" = 90% Vdd Min
Linearity:	±10% Max
Aging:	<3ppm 1st year, <1ppm every year thereafter

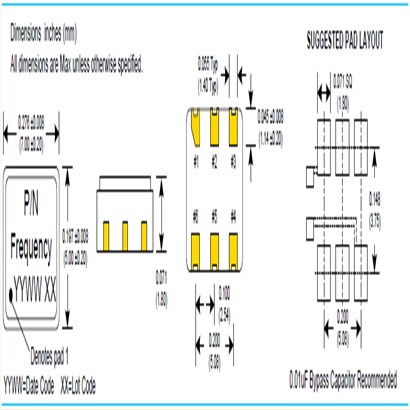

CRYSTEK压控晶体振荡器,CVXO-018TX-50-16.384,导航仪晶振,尺寸图

CRYSTEK压控晶体振荡器,CVXO-018TX-50-16.384,导航仪晶振

压控晶振（VCXO）是通过红外加控制电压使振荡效率可变或是可以调制的石英晶体振荡器，其振荡频率由晶体决定，可用控制电压在小范围内进行频率调整。VCXO 大多用于锁相技术、频率负反馈调制的目的。控制电压范围一般为0V至2V或0V至3V。VCXO的调谐范围为±100ppm至±200ppm。

进口石英晶振	品牌	型号	类型	频率	频率稳定度	工作温度
CVXO-016TX-50-12.352	Crystek晶振	CVXO-016T	VCXO	12.352MHz	±50ppm	-40°C ~ 85°C
CVXO-016TX-50-24.704	Crystek晶振	CVXO-016T	VCXO	24.704MHz	±50ppm	-40°C ~ 85°C
CVXO-016TX-50-8.192	Crystek晶振	CVXO-016T	VCXO	8.192MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-12.288	Crystek晶振	CVXO-018T	VCXO	12.288MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-12.352	Crystek晶振	CVXO-018T	VCXO	12.352MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-13.5	Crystek晶振	CVXO-018T	VCXO	13.5MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-16.384	Crystek晶振	CVXO-018T	VCXO	16.384MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-19.44	Crystek晶振	CVXO-018T	VCXO	19.44MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-20	Crystek晶振	CVXO-018T	VCXO	20MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-24.576	Crystek晶振	CVXO-018T	VCXO	24.576MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-24.704	Crystek晶振	CVXO-018T	VCXO	24.704MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-25	Crystek晶振	CVXO-018T	VCXO	25MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-27	Crystek晶振	CVXO-018T	VCXO	27MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-4.096	Crystek晶振	CVXO-018T	VCXO	4.096MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-8	有源晶振	CVXO-018T	VCXO	8MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-8.192	Crystek晶振	CVXO-018T	VCXO	8.192MHz	±50ppm	-40°C ~ 85°C
CVXO-016TX-50-34.368	Crystek晶振	CVXO-016T	VCXO	34.368MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-32	Crystek晶振	CVXO-018T	VCXO	32MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-32.768	Crystek晶振	CVXO-018T	VCXO	32.768MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-34.56	Crystek晶振	CVXO-018T	VCXO	34.56MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-35.328	Crystek晶振	CVXO-018T	VCXO	35.328MHz	±50ppm	-40°C ~ 85°C
CVXO-016TX-50-35.328	Crystek晶振	CVXO-016T	VCXO	35.328MHz	±50ppm	-40°C ~ 85°C
CVXO-016TX-50-44.736	Crystek晶振	CVXO-016T	VCXO	44.736MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-38.88	Crystek晶振	CVXO-018T	VCXO	38.88MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-50-44.736	Crystek晶振	CVXO-018T	VCXO	44.736MHz	±50ppm	-40°C ~ 85°C
CVXO-018TX-25-10.0	Crystek晶振	CVXO-018T	VCXO	10MHz	±25ppm	-40°C ~ 85°C
CVXO-018TX-50-51.84	Crystek晶振	CVXO-018T	VCXO	51.84MHz	±50ppm	-40°C ~ 85°C
