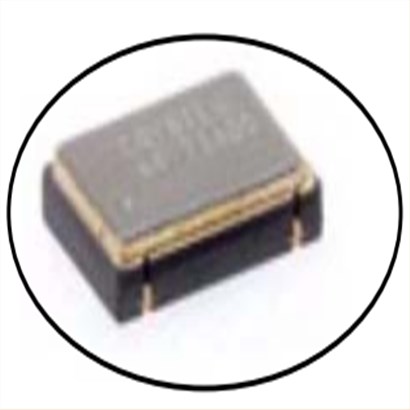

C3292-3.686400,Crystek轻薄型晶振,数字视频应用晶振，美国进口晶振，CRYSTEK晶振，瑞斯克晶振，C32xx系列晶振，编码为：C3292-3.686400，频率为：3.686400MHz，小体积晶振，尺寸：7.0x5.0x1.8mm封装，HCMOS时钟振荡器，石英晶体振荡器，四脚贴片晶振，有源晶振，石英晶振，SMD晶振。具有超小型，轻薄型，高精度，高性能，高品质等特点。应用范围：通讯设备，无线网络，数字视频，超声波/SDH/DWDM，存储区域网络，宽带接入以太网、蓝牙模块，千兆以太网，物联网等应用。
Crystek晶振型号C32xx/C39xx系列是一个1.544 MHz到100.000 MHz的HCMOS时钟振荡器，工作电压5.0V。该振荡器利用基本或高Q第三泛音晶体设计，提供非常低的抖动和相位噪声。输出信号中没有子谐波。

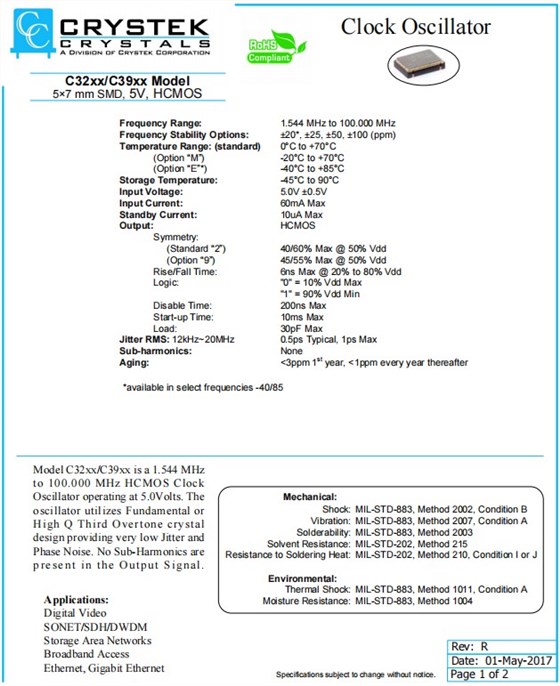

C3292-3.686400,Crystek轻薄型晶振,数字视频应用晶振,参数表
| Frequency Range: | 3.68640 MHz |
| Frequency Stability Options: | ±20*, ±25, ±50, ±100 (ppm) |
| Temperature Range: (standard) | 0°C to +70°C |
| (Option “M”) | -20°C to +70°C |
| (Option “E”*) | -40°C to +85°C |
| Storage Temperature: | -45°C to 90°C |
| Input Voltage: | 5.0V ±0.5V |
| Input Current: | 60mA Max |
| Standby Current: | 10uA Max |
| Output: | HCMOS |
| Symmetry: | |
| (Standard “2”) | 40/60% Max @ 50% Vdd |
| (Option “9”) | 45/55% Max @ 50% Vdd |
| Rise/Fall Time: | 6ns Max @ 20% to 80% Vdd |
| Logic: | "0" = 10% Vdd Max |
| "1" = 90% Vdd Min | |
| Disable Time: | 200ns Max |
| Start-up Time: | 10ms Max |
| Load: | 30pF Max |
| Jitter RMS: 12kHz~20MHz | 0.5ps Typical, 1ps Max |
| Sub-harmonics: | None |
| Aging: | <3ppm 1styear, <1ppm every year thereafter |

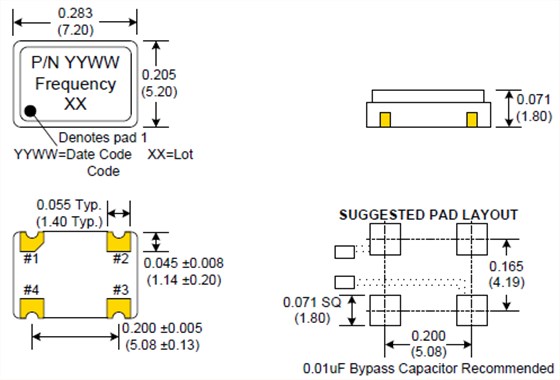

C3292-3.686400,Crystek轻薄型晶振,数字视频应用晶振,尺寸图
C3292-3.686400,Crystek轻薄型晶振,数字视频应用晶振
石英晶体振荡器优点：
1、石英钟走时准、耗电省、经久耐用为其最大优点。不论是老式石英钟或是新式多功能石英钟都是以石英晶体振荡器为核心电路，其频率精度决定了电子钟表的走时精度。
2、随着电视技术的发展，近来彩电多采用500kHz或503kHz振荡器作为行、场电路的振荡源，经1/3的分频得到15625Hz的行频，其稳定性和可靠性大为提高。而且晶振价格便宜，更换容易。
3、在通信系统产品中，石英晶体振荡器的价值得到了更广泛的体现，同时也得到了更快的发展。许多高性能的石英晶振主要应用于通信网络、无线数据传输、高速数字数据传输等。
| 贴片石英晶振 | 品牌 | 型号 | 类型 | 频率 | 频率稳定度 | 工作温度 |
| C3292-1.843200 | Crystek晶振 | C3292 | XO (Standard) | 1.8432MHz | ±50ppm | 0°C ~ 70°C |
| C3292-10.000 | Crystek晶振 | C3292 | XO (Standard) | 10MHz | ±50ppm | 0°C ~ 70°C |
| C3292-12.000 | Crystek晶振 | C3292 | XO (Standard) | 12MHz | ±50ppm | 0°C ~ 70°C |
| C3292-12.288 | Crystek晶振 | C3292 | XO (Standard) | 12.288MHz | ±50ppm | 0°C ~ 70°C |
| C3292-12.352 | Crystek晶振 | C3292 | XO (Standard) | 12.352MHz | ±50ppm | 0°C ~ 70°C |
| C3292-14.318180 | Crystek晶振 | C3292 | XO (Standard) | 14.31818MHz | ±50ppm | 0°C ~ 70°C |
| C3292-15.360 | Crystek晶振 | C3292 | XO (Standard) | 15.36MHz | ±50ppm | 0°C ~ 70°C |
| C3292-16.0000 | Crystek晶振 | C3292 | XO (Standard) | 16MHz | ±50ppm | 0°C ~ 70°C |
| C3292-16.384 | Crystek晶振 | C3292 | XO (Standard) | 16.384MHz | ±50ppm | 0°C ~ 70°C |
| C3292-18.432 | Crystek晶振 | C3292 | XO (Standard) | 18.432MHz | ±50ppm | 0°C ~ 70°C |
| C3292-19.440 | Crystek晶振 | C3292 | XO (Standard) | 19.44MHz | ±50ppm | 0°C ~ 70°C |
| C3292-2.048 | Crystek晶振 | C3292 | XO (Standard) | 2.048MHz | ±50ppm | 0°C ~ 70°C |
| C3292-20.000 | Crystek晶振 | C3292 | XO (Standard) | 20MHz | ±50ppm | 0°C ~ 70°C |
| C3292-20.480 | Crystek晶振 | C3292 | XO (Standard) | 20.48MHz | ±50ppm | 0°C ~ 70°C |
| C3292-24.000 | Crystek晶振 | C3292 | XO (Standard) | 24MHz | ±50ppm | 0°C ~ 70°C |
| C3292-24.704 | Crystek晶振 | C3292 | XO (Standard) | 24.704MHz | ±50ppm | 0°C ~ 70°C |
| C3292-25.000 | Crystek晶振 | C3292 | XO (Standard) | 25MHz | ±50ppm | 0°C ~ 70°C |
| C3292-3.686400 | Crystek晶振 | C3292 | XO (Standard) | 3.6864MHz | ±50ppm | 0°C ~ 70°C |
| C3292-30.000 | Crystek晶振 | C3292 | XO (Standard) | 30MHz | ±50ppm | 0°C ~ 70°C |
| C3292-32.000 | Crystek晶振 | C3292 | XO (Standard) | 32MHz | ±50ppm | 0°C ~ 70°C |
| C3292-32.768 | Crystek晶振 | C3292 | XO (Standard) | 32.768MHz | ±50ppm | 0°C ~ 70°C |
| C3292-33.000 | Crystek晶振 | C3292 | XO (Standard) | 33MHz | ±50ppm | 0°C ~ 70°C |
| C3292-33.333 | Crystek晶振 | C3292 | XO (Standard) | 33.333MHz | ±50ppm | 0°C ~ 70°C |
| C3292-35.000 | Crystek晶振 | C3292 | XO (Standard) | 35MHz | ±50ppm | 0°C ~ 70°C |
| C3292-4.000 | Crystek晶振 | C3292 | XO (Standard) | 4MHz | ±50ppm | 0°C ~ 70°C |
| C3292-40.000 | 有源晶振 | C3292 | XO (Standard) | 40MHz | ±50ppm | 0°C ~ 70°C |
| C3292-44.736 | Crystek晶振 | C3292 | XO (Standard) | 44.736MHz | ±50ppm | 0°C ~ 70°C |
| C3292-45.000 | Crystek晶振 | C3292 | XO (Standard) | 45MHz | ±50ppm | 0°C ~ 70°C |
| C3292-49.152 | Crystek晶振 | C3292 | XO (Standard) | 49.152MHz | ±50ppm | 0°C ~ 70°C |
| C3292-50.000 | Crystek晶振 | C3292 | XO (Standard) | 50MHz | ±50ppm | 0°C ~ 70°C |
| C3292-51.840 | Crystek晶振 | C3292 | XO (Standard) | 51.84MHz | ±50ppm | 0°C ~ 70°C |
| C3292-6.176 | Crystek晶振 | C3292 | XO (Standard) | 6.176MHz | ±50ppm | 0°C ~ 70°C |
| C3292-7.372800 | Crystek晶振 | C3292 | XO (Standard) | 7.3728MHz | ±50ppm | 0°C ~ 70°C |
| C3292-8.000 | Crystek晶振 | C3292 | XO (Standard) | 8MHz | ±50ppm | 0°C ~ 70°C |
| C3292-60.000 | Crystek晶振 | C3292 | XO (Standard) | 60MHz | ±50ppm | 0°C ~ 70°C |
| C3292-64.000 | Crystek晶振 | C3292 | XO (Standard) | 64MHz | ±50ppm | 0°C ~ 70°C |
| C3292-66.666600 | Crystek晶振 | C3292 | XO (Standard) | 66.6666MHz | ±50ppm | 0°C ~ 70°C |
| C3292-75.000 | Crystek晶振 | C3292 | XO (Standard) | 75MHz | ±50ppm | 0°C ~ 70°C |
| C3292-80.000 | Crystek晶振 | C3292 | XO (Standard) | 80MHz | ±50ppm | 0°C ~ 70°C |
| CE3292-1.544 | Crystek晶振 | C3292 | XO (Standard) | 1.544MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-1.843200 | Crystek晶振 | C3292 | XO (Standard) | 1.8432MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-10.000 | Crystek晶振 | C3292 | XO (Standard) | 10MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-12.000 | Crystek晶振 | C3292 | XO (Standard) | 12MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-12.288 | Crystek晶振 | C3292 | XO (Standard) | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-12.352 | Crystek晶振 | C3292 | XO (Standard) | 12.352MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-14.318180 | Crystek晶振 | C3292 | XO (Standard) | 14.31818MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-15.360 | Crystek晶振 | C3292 | XO (Standard) | 15.36MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-16.0000 | Crystek晶振 | C3292 | XO (Standard) | 16MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-16.384 | Crystek晶振 | C3292 | XO (Standard) | 16.384MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-18.432 | Crystek晶振 | C3292 | XO (Standard) | 18.432MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-19.440 | Crystek晶振 | C3292 | XO (Standard) | 19.44MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-2.048 | Crystek晶振 | C3292 | XO (Standard) | 2.048MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-20.000 | Crystek晶振 | C3292 | XO (Standard) | 20MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-20.480 | Crystek晶振 | C3292 | XO (Standard) | 20.48MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-24.000 | Crystek晶振 | C3292 | XO (Standard) | 24MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-24.704 | Crystek晶振 | C3292 | XO (Standard) | 24.704MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-25.000 | Crystek晶振 | C3292 | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-3.686400 | Crystek晶振 | C3292 | XO (Standard) | 3.6864MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-30.000 | Crystek晶振 | C3292 | XO (Standard) | 30MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-32.000 | Crystek晶振 | C3292 | XO (Standard) | 32MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-32.768 | Crystek晶振 | C3292 | XO (Standard) | 32.768MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-33.000 | Crystek晶振 | C3292 | XO (Standard) | 33MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-33.333 | Crystek晶振 | C3292 | XO (Standard) | 33.333MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-35.000 | Crystek晶振 | C3292 | XO (Standard) | 35MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-4.000 | Crystek晶振 | C3292 | XO (Standard) | 4MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-40.000 | Crystek晶振 | C3292 | XO (Standard) | 40MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-6.176 | Crystek晶振 | C3292 | XO (Standard) | 6.176MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-7.372800 | Crystek晶振 | C3292 | XO (Standard) | 7.3728MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-8.000 | Crystek晶振 | C3292 | XO (Standard) | 8MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-44.736 | Crystek晶振 | C3292 | XO (Standard) | 44.736MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-45.000 | Crystek晶振 | C3292 | XO (Standard) | 45MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-49.152 | Crystek晶振 | C3292 | XO (Standard) | 49.152MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-50.000 | Crystek晶振 | C3292 | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-51.840 | Crystek晶振 | C3292 | XO (Standard) | 51.84MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-60.000 | Crystek晶振 | C3292 | XO (Standard) | 60MHz | ±50ppm | -40°C ~ 85°C |
| C3292-1.544 | Crystek晶振 | C3292 | XO (Standard) | 1.544MHz | ±50ppm | 0°C ~ 70°C |
| CE3292-64.000 | Crystek晶振 | C3292 | XO (Standard) | 64MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-66.666600 | Crystek晶振 | C3292 | XO (Standard) | 66.6666MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-75.000 | Crystek晶振 | C3292 | XO (Standard) | 75MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-80.000 | Crystek晶振 | C3292 | XO (Standard) | 80MHz | ±50ppm | -40°C ~ 85°C |
| C3292-100.000 | Crystek晶振 | C3292 | XO (Standard) | 100MHz | ±50ppm | 0°C ~ 70°C |
| C3292-106.250 | Crystek晶振 | C3292 | XO (Standard) | 106.25MHz | ±50ppm | 0°C ~ 70°C |
| CE3292-100.000 | Crystek晶振 | C3292 | XO (Standard) | 100MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-106.250 | Crystek晶振 | C3292 | XO (Standard) | 106.25MHz | ±50ppm | -40°C ~ 85°C |
