EG-2121CB,X1M0002310004数据手册,156.25MHZ,LVDS,5032mm

EG-2121CB,X1M0002310004数据手册,156.25MHZ,LVDS,5032mm，尺寸为5032mm,频率为156.25MHZ,支持输出LVDS,电压2.37~2.62,频率稳定性为100ppm，日本爱普生晶振，EPSON晶振，SPXO振荡器，有源贴片晶振，石英晶体振荡器，低电压晶振，低抖动晶振，无线模块晶振，蓝牙模块晶振，仪器设备晶振，便携式设备晶振，智能手机专用晶振，5032mm有源晶振。

石英晶振产品主要应用范围：无线模块，蓝牙模块，仪器设备，便携式设备，智能手机等领域。EG-2121CB,X1M0002310004数据手册,156.25MHZ,LVDS,5032mm.

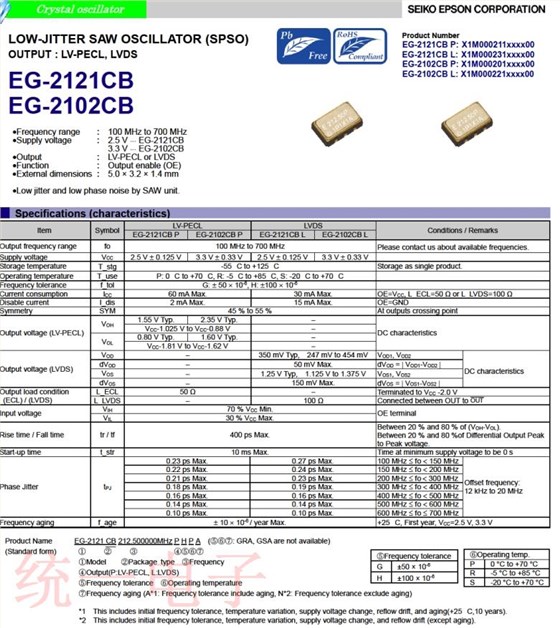

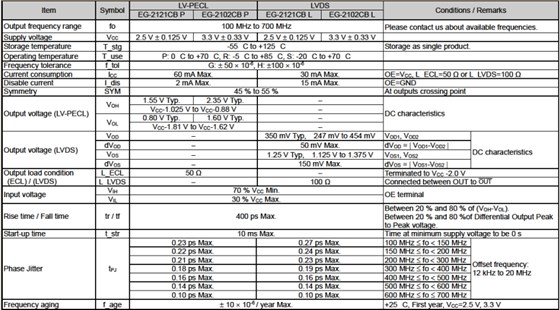

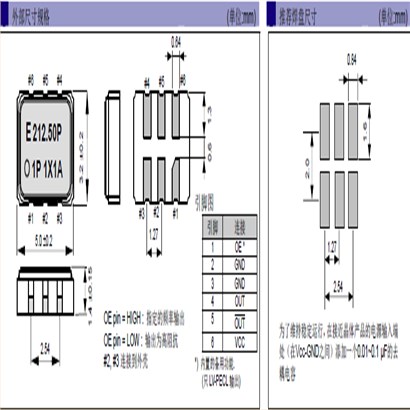

EG-2121CB,X1M0002310004数据手册,156.25MHZ,LVDS,5032mm参数表 EG-2121CB，EG-2102CB,5032 can EG-2121CB,X1M0002310004数据手册,156.25MHZ,LVDS,5032mm尺寸图 EG-2121CB EG2102CB 特点

频率范围:100MHZ ~ 700mhz

电源电压:2.5 v-EG2121cb
3.3v - EG- 2102 - cb
输出:LV-PECL或LVDS
功能:允许输出(OE)
尺寸:5.0 * 3.0 * 1.4毫米更多相关日本爱普生晶振型号

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度	Freq. Tol./频率偏差
X1M0000910001	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910002	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-100 ppm
X1M0000910003	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-100 ppm
X1M0000910004	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C	+/-50 ppm
X1M0000910005	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-20 to 70 °C	+/-50 ppm
X1M0000910006	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910007	爱普生振荡器	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C	+/-100 ppm
X1M0000910008	爱普生振荡器	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910009	爱普生振荡器	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C	+/-50 ppm
X1M0000910010	爱普生振荡器	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C	+/-50 ppm
X1M0002110001	爱普生振荡器	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002110002	爱普生振荡器	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002110003	爱普生振荡器	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002110004	爱普生振荡器	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002310002	爱普生振荡器	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310003	爱普生振荡器	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310004	爱普生有源振荡器	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310005	爱普生振荡器	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310006	爱普生振荡器	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M0002310007	爱普生振荡器	EG-2121CB	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310010	爱普生振荡器	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310011	爱普生振荡器	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310013	爱普生振荡器	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0002310014	爱普生振荡器	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310015	爱普生振荡器	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0002310016	爱普生振荡器	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm
X1M0002310017	爱普生振荡器	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310018	爱普生振荡器	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M0002310019	爱普生振荡器	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310020	爱普生振荡器	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
X1M0002310021	爱普生振荡器	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C	+/-50 ppm
