X1A000171000100,FC2012AN,32.768kHz,2012mm,EPSON晶振

X1A000171000100,FC2012AN,32.768kHz,2012mm,EPSON晶振，日本进口晶振，EPSON爱普生晶振，型号：FC2012AN，编码为：X1A000171000100，负载：12.5pF，精度：±20ppm，频率为：32.768K晶振，小体积晶振尺寸：2.0x1.2x0.6mm，无源晶振，两脚贴片晶振，FC2012AN是一个32.768kHz晶体单元，低ESR在紧凑的封装。这是配备了一个完全重新设计的元素，基于我们的设计和生产技术诀窍的音叉晶体设备建立了多年。它是理想的应用，需要低电流消耗的应用，如物联网的理想增长。它支持高达+105°C的工作温度范围。爱普生是kHz波段晶体单元的领先供应商，除了晶体单元外，还提供内置振荡电路和实时时钟模块。爱普生致力于为客户提供最低功率的解决方案。具有超小型，轻薄型，耐热及耐环境特点。应用于：智能手表晶振，可穿戴产品，低功率mcu的子时钟，无线模块的子时钟，钟表电子，仪器仪表，电脑主板，数码电子等应用。

X1A000171000100,FC2012AN,32.768kHz,2012mm,EPSON晶振，产品特点：

包装尺寸：2.05 x 1.2毫米，t=0.6mm Max
频率：32.768kHz谐振器
频率公差：±20 x 10-6（+25°C±5°C）
工作温度：-40°C至+105°C
ESR：35 kΩ Typ（+25°C），50 kΩ Max（-40°C至+85°C），60 kΩ Max（-40°C至+105°C）

20180421171456_6296统一

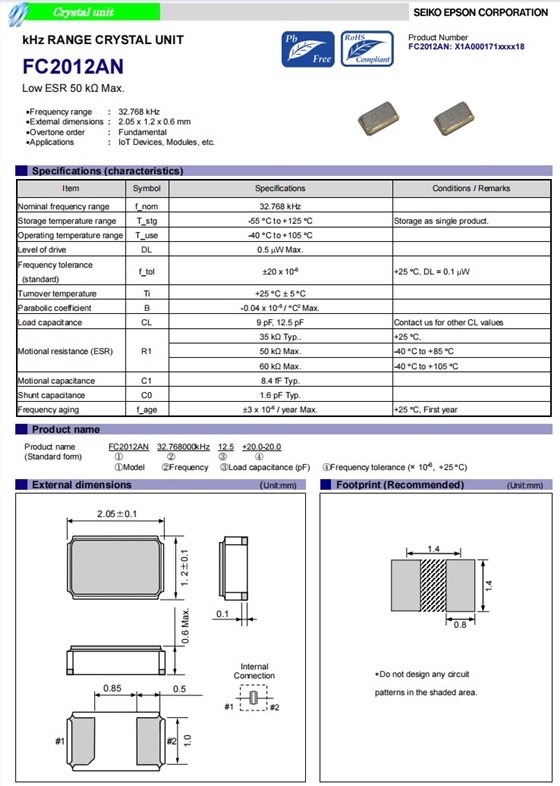

X1A000171000100,FC2012AN,32.768kHz,2012mm,EPSON晶振,参数表

Item	Symbol	FC2012AN	Conditions / Remarks
Nominal frequency range	f_nom	32.768 kHz
Storage temperature range	T_stg	-55。C to +125。C	Storage as single product.
Operating temperature range	T_use	-40。C to +105。C
Level of drive	DL	0.5μW Max.
Frequency tolerance	f_tol	±20 x 10-6	+25。C, DL = 0.1μW
(standard)	f_tol	±20 x 10-6	+25。C, DL = 0.1μW
Turnover temperature	Ti	+25。C±5。C
Parabolic coefficient	B	-0.04 x 10-6 /。C2 Max.
Load capacitance	CL	9 pF, 12.5 pF	Contact us for other CL values
		35 ka Typ..	+25。C,
Motional resistance (ESR)	R1	50 ka Max.	-40。C to +85。C
		60 ka Max.	-40。C to +105。C
Motional capacitance	C1	8.4 fF Typ.
Shunt capacitance	C0	1.6 pF Typ.
Frequency aging	f_age	±3 x 10-6 / year Max.	+25。C, First year

20181130160053_3983统一

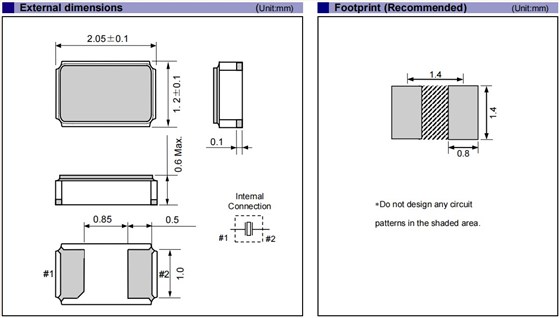

X1A000171000100,FC2012AN,32.768kHz,2012mm,EPSON晶振,尺寸图

晶振编码	品牌	型号	频率	尺寸	负载
X1A000061000200	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	12.5 pF
X1A000061000300	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	12.5 pF
X1A000061000800	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000061003000	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	8 pF
X1A000061003200	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	6.6 pF
X1A000091000100	EPSON爱普生	FC-13A	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
X1A000091000200	EPSON爱普生	FC-13A	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
X1A000091000300	EPSON爱普生	FC-13A	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
X1A000091000500	EPSON爱普生	FC-13A	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
X1A000141000100	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	7 pF
X1A000141000200	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
X1A000141000300	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
X1A000141000400	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
X1A000141000500	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
X1A000141000600	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	6 pF
X1A000141001100	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	7 pF
X1A000141001500	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	6 pF
X1A000141001600	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	6 pF
X1A000141001900	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	12 pF
Q13FC1350000100	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	7 pF
Q13FC1350000200	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	7 pF
Q13FC1350000300	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
Q13FC1350000400	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
Q13FC1350000500	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
Q13FC1350000600	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
Q13FC1350000800	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
Q13FC1350000900	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
Q13FC1350001000	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	15 pF
Q13FC1350001100	石英晶体	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	12 pF
Q13FC1350001200	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	8 pF
Q13FC1350001300	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	10 pF
Q13FC1350001700	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
Q13FC1350001900	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
Q13FC1350003900	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	7.5 pF
Q13FC1350004900	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	6 pF
Q13FC1350005700	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	10 pF
Q13FC1350006000	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	6 pF
Q13FC1350006100	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	6.5 pF
Q13FC1350006300	EPSON爱普生	FC-135	32.768kHz	3.2 x 1.5 x 0.9 mm	18 pF
X1A000021000200	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	10 pF
X1A000021000700	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	10 pF
X1A000021000800	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	10 pF
X1A000021001000	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000021001100	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	10 pF
X1A000021001200	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	10 pF
X1A000021001300	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000021001400	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000021001500	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000021001600	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	7 pF
X1A000061000600	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	7 pF
X1A000061001400	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	12.5 pF
X1A000061002100	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	6 pF
X1A000061002400	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000061003500	EPSON爱普生	FC-12M	32.768kHz	2.05 x 1.2 x 0.6 mm	7 pF
X1A000121000800	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	7 pF
X1A000121000500	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	12.5 pF
X1A000121000600	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	9 pF
X1A000121000700	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	15 pF
X1A000121001100	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	9 pF
X1A000121001200	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	12.5 pF
X1A000121001300	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	6 pF
X1A000121001400	EPSON爱普生	FC1610AN	32.768kHz	1.65 x 1.05 x 0.5 mm	7 pF
X1A000171000100	EPSON爱普生	FC2012AN	32.768kHz	2.05 x 1.2 x 0.6 mm	12.5 pF
X1A000171000200	EPSON爱普生	FC2012AN	32.768kHz	2.05 x 1.2 x 0.6 mm	9 pF
X1A000171000300	EPSON爱普生	FC2012AN	32.768kHz	2.05 x 1.2 x 0.6 mm	7 pF
X1A000141002200	EPSON爱普生	FC-135R	32.768kHz	3.2 x 1.5 x 0.9 mm	18 pF
X1A000161000100	EPSON爱普生	FC3215AN	32.768kHz	3.2 x 1.5 x 0.9 mm	12.5 pF
X1A000161000200	EPSON爱普生	FC3215AN	32.768kHz	3.2 x 1.5 x 0.9 mm	9 pF
X1A000161000300	EPSON爱普生	FC3215AN	32.768kHz	3.2 x 1.5 x 0.9 mm	7 pF
