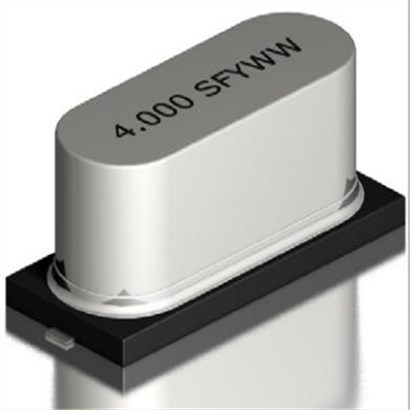

SXTHM212BB274-16.000M,16MHz,SXTHM2,Suntsu平板电脑晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SXTHM2系列，产品编码为：SXTHM212BB274-16.000M贴片晶振，频率为：16.000MHz，频率稳定性：±30ppm，频率容差：±30ppm，负载电容：12pF，工作温度范围：-20℃至+70℃，小体积晶振尺寸：13.3x4.5mm，两脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，SMD石英晶体，SMD石英晶体。具有小体积晶振，轻薄型晶振，高性能晶振，高品质，耐热及耐环境等特点。应用于：微处理器晶振，平板电脑晶振，通讯设备晶振，调制解调器晶振，无线应用程序。

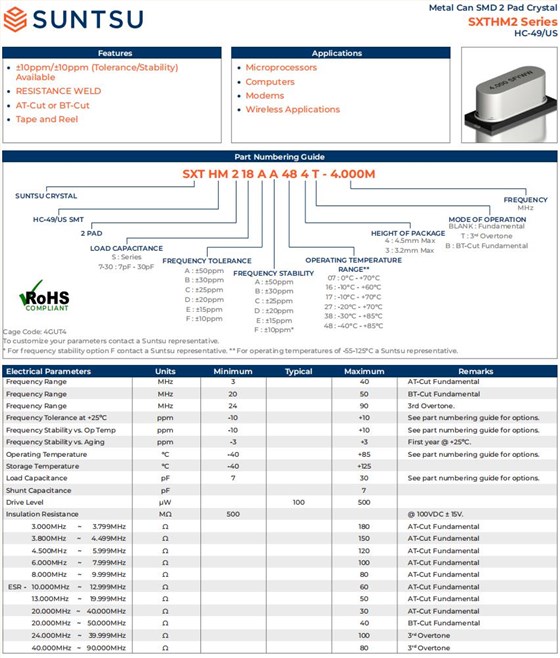

SXTHM212BB274-16.000M,16MHz,SXTHM2,Suntsu平板电脑晶振,参数表
| Electrical Parameters | Units | Minimum | Typical | Maximum | Remarks |
| Frequency Range | MHz | 16 |
|
AT-Cut Fundamental | |
| Frequency Range | MHz | 20 | 50 | BT-Cut Fundamental | |
| Frequency Range | MHz | 24 | 90 | 3rd Overtone. | |
| Frequency Tolerance at +25ºC | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Op Temp | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Aging | ppm | -3 | +3 | First year @ +25ºC. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -40 | +125 | ||
| Load Capacitance | pF | 7 | 30 | See part numbering guide for options. | |
| Shunt Capacitance | pF | 7 | |||
| Drive Level | µW | 100 | 500 | ||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| 3.000MHz~3.799MHz | Ω | 180 | AT-Cut Fundamental | ||
| 3.800MHz~4.499MHz | Ω | 150 | AT-Cut Fundamental | ||
| 4.500MHz~5.999MHz | Ω | 120 | AT-Cut Fundamental | ||
| 6.000MHz~7.999MHz | Ω | 100 | AT-Cut Fundamental | ||
| 8.000MHz~9.999MHz | Ω | 80 | AT-Cut Fundamental | ||
| ESR-10.000MHz~12.999MHz | Ω | 60 | AT-Cut Fundamental | ||
| 13.000MHz~19.999MHz | Ω | 50 | AT-Cut Fundamental | ||
| 20.000MHz ~40.000MHz | Ω | 30 | AT-Cut Fundamental | ||
| 20.000MHz~50.000MHz | Ω | 40 | BT-Cut Fundamental | ||
| 24.000MHz~39.999MHz | Ω | 100 | 3rd Overtone | ||
| 40.000MHz~90.000MHz | Ω | 80 | 3rd Overtone |

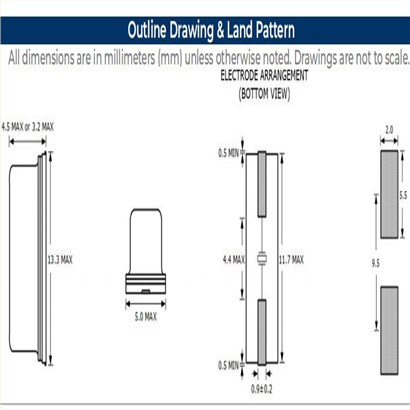

SXTHM212BB274-16.000M,16MHz,SXTHM2,Suntsu平板电脑晶振,尺寸图
| 松图晶振 | 型号 | 频率 | 负载 | 工作温度 | 频率稳定度 | 精度 |
| SXTHM212AA174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXTHM212AA274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXTHM212AA384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXTHM212AA484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±50ppm | ±50ppm |
| SXTHM212BA174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±30ppm | ±50ppm |
| SXTHM212BA274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±30ppm | ±50ppm |
| SXTHM212BA384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±30ppm | ±50ppm |
| SXTHM212BA484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±30ppm | ±50ppm |
| SXTHM212BB174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±30ppm | ±30ppm |
| SXTHM212BB274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±30ppm | ±30ppm |
| SXTHM212BB384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±30ppm | ±30ppm |
| SXTHM212BB484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±30ppm | ±30ppm |
| SXTHM212CA174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±25ppm | ±50ppm |
| SXTHM212CA274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±25ppm | ±50ppm |
| SXTHM212CA384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±25ppm | ±50ppm |
| SXTHM212CA484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±25ppm | ±50ppm |
| SXTHM212CB174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±25ppm | ±30ppm |
| SXTHM212CB274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±25ppm | ±30ppm |
| SXTHM212CB384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±25ppm | ±30ppm |
| SXTHM212CB484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±25ppm | ±30ppm |
| SXTHM212CC174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±25ppm | ±25ppm |
| SXTHM212CC274-16.000M | 进口晶振 | 16.000M | 12pF | -20°C - +70°C | ±25ppm | ±25ppm |
| SXTHM212CC384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±25ppm | ±25ppm |
| SXTHM212CC484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±25ppm | ±25ppm |
| SXTHM212DA174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±20ppm | ±50ppm |
| SXTHM212DA274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±20ppm | ±50ppm |
| SXTHM212DA384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±20ppm | ±50ppm |
| SXTHM212DA484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±20ppm | ±50ppm |
| SXTHM212DB174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±20ppm | ±30ppm |
| SXTHM212DB274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±20ppm | ±30ppm |
| SXTHM212DB384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±20ppm | ±30ppm |
| SXTHM212DB484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±20ppm | ±30ppm |
| SXTHM212DC174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±20ppm | ±25ppm |
| SXTHM212DC274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±20ppm | ±25ppm |
| SXTHM212DC384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±20ppm | ±25ppm |
| SXTHM212DC484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±20ppm | ±25ppm |
| SXTHM212DD174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±20ppm | ±20ppm |
| SXTHM212DD274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±20ppm | ±20ppm |
| SXTHM212DD384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±20ppm | ±20ppm |
| SXTHM212DD484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±20ppm | ±20ppm |
| SXTHM212EA174-16.000M | SXTHM2 | 16.000M | 12pF | -10°C - +70°C | ±15ppm | ±50ppm |
| SXTHM212EA274-16.000M | SXTHM2 | 16.000M | 12pF | -20°C - +70°C | ±15ppm | ±50ppm |
| SXTHM212EA384-16.000M | SXTHM2 | 16.000M | 12pF | -30°C - +85°C | ±15ppm | ±50ppm |
| SXTHM212EA484-16.000M | SXTHM2 | 16.000M | 12pF | -40°C - +85°C | ±15ppm | ±50ppm |
