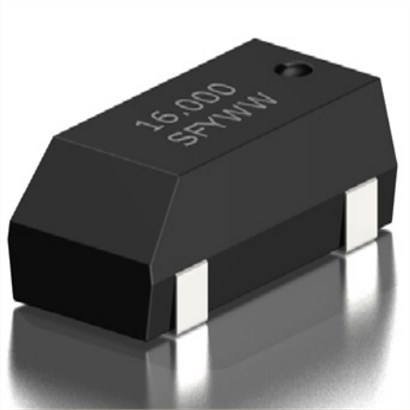

SXT83418AA16-24.576M,8038mm,24.576M,SXT834,Suntsu谐振器，美国进口晶振，Suntsu晶振，松图晶振，型号：SXT834系列，编码为：SXT83418AA16-24.576M贴片晶振，频率为：24.576MHz，负载电容：18pF，频率稳定性：±50ppm，频率容差：±50ppm，工作温度范围：-10℃至+60℃，小体积晶振尺寸：8.0x3.8mm晶振，四脚贴片晶振，无源晶振，陶瓷晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅晶振。具有小体积晶振，轻薄型晶振，高性能晶振，高品质等特点。应用于：测量仪器晶振，通讯设备晶振，汽车电子晶振，无线应用程序。
SXT83418AA16-24.576M,8038mm,24.576M,SXT834,Suntsu谐振器,参数表

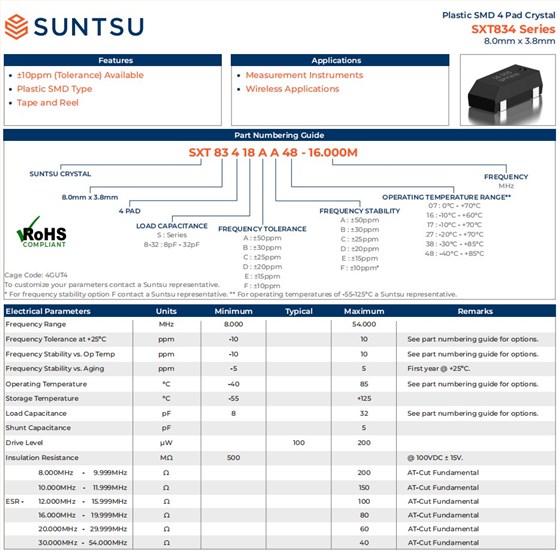

Electrical Parameters
Units
Minimum
Typical
Maximum
Remarks
Frequency Range
MHz
24.576
Frequency Tolerance at +25ºC
ppm
-10
10
See part numbering guide for options.
Frequency Stability vs. Op Temp
ppm
-10
10
See part numbering guide for options.
Frequency Stability vs. Aging
ppm
-5
5
First year @ +25ºC.
Operating Temperature
°C
-40
85
See part numbering guide for options.
Storage Temperature
°C
-55
+125
Load Capacitance
pF
8
32
See part numbering guide for options.
Shunt Capacitance
pF
5
Drive Level
µW
100
200
Insulation Resistance
MΩ
500
@ 100VDC ± 15V.
8.000MHz-9.999MHz
Ω
200
AT-Cut Fundamental
10.000MHz-11.999MHz
Ω
150
AT-Cut Fundamental
ESR -12.000MHz-15.999MHz
Ω
100
AT-Cut Fundamental
16.000MHz-19.999MHz
Ω
80
AT-Cut Fundamental
20.000MHz-29.999MHz
Ω
60
AT-Cut Fundamental
30.000MHz-54.000MHz
Ω
40
AT-Cut Fundamental

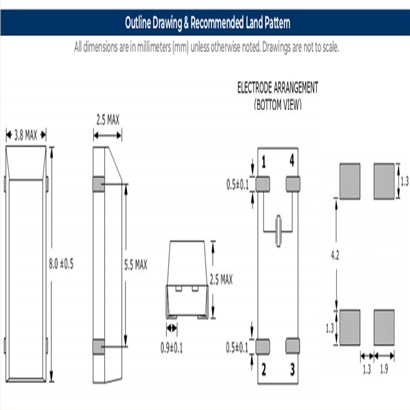

SXT83418AA16-24.576M,8038mm,24.576M,SXT834,Suntsu谐振器,尺寸图
| 陶瓷谐振器 | 型号 | 频率 | 负载 | 工作温度 | 频率稳定度 | 精度 |
| SXT83418AA16-18.432M | SXT834 | 18.432M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-20.000M | SXT834 | 20.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-22.1184M | SXT834 | 22.1184M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-24.000M | SXT834 | 24.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-24.576M | SXT834 | 24.576M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-25.000M | SXT834 | 25.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-27.000M | SXT834 | 27.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-28.63636M | SXT834 | 28.63636M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-29.4912M | SXT834 | 29.4912M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-30.000M | SXT834 | 30.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-32.000M | SXT834 | 32.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA16-40.000M | SXT834 | 40.000M | 18pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT83418AA17-18.432M | SXT834 | 18.432M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-20.000M | SXT834 | 20.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-22.1184M | SXT834 | 22.1184M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-24.000M | SXT834 | 24.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-24.576M | SXT834 | 24.576M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-25.000M | SXT834 | 25.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-27.000M | SXT834 | 27.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-28.63636M | SXT834 | 28.63636M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-29.4912M | SXT834 | 29.4912M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-30.000M | SXT834 | 30.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-32.000M | SXT834 | 32.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA17-40.000M | 无源晶振 | 40.000M | 18pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-18.432M | SXT834 | 18.432M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-20.000M | SXT834 | 20.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-22.1184M | SXT834 | 22.1184M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-24.000M | SXT834 | 24.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-24.576M | SXT834 | 24.576M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-25.000M | SXT834 | 25.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-27.000M | SXT834 | 27.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-28.63636M | SXT834 | 28.63636M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-29.4912M | SXT834 | 29.4912M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-30.000M | SXT834 | 30.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-32.000M | SXT834 | 32.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA27-40.000M | SXT834 | 40.000M | 18pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT83418AA38-18.432M | SXT834 | 18.432M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-20.000M | SXT834 | 20.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-22.1184M | SXT834 | 22.1184M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-24.000M | SXT834 | 24.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-24.576M | SXT834 | 24.576M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-25.000M | SXT834 | 25.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-27.000M | SXT834 | 27.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-28.63636M | SXT834 | 28.63636M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-29.4912M | SXT834 | 29.4912M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-30.000M | SXT834 | 30.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-32.000M | SXT834 | 32.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
| SXT83418AA38-40.000M | SXT834 | 40.000M | 18pF | -30°C - +85°C | ±50ppm | ±50ppm |
