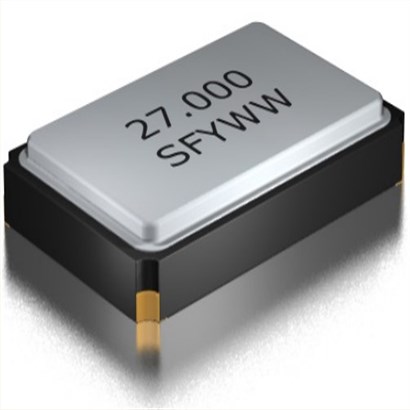

SXT534,SXT53410AC16-25.000M,5032mm,Suntsu医疗设备晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SXT534谐振器，编码为：SXT53410AC16-25.000M，频率为：25.000MHz，负载电容：10pF，频率稳定性：±50ppm，频率容差：±25ppm，工作温度范围：-10℃至+60℃，小体积晶振尺寸：5.0x3.2mm，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质等特点。应用于：通信和测试设备，PCMCIA，无线应用程序，高密度应用。

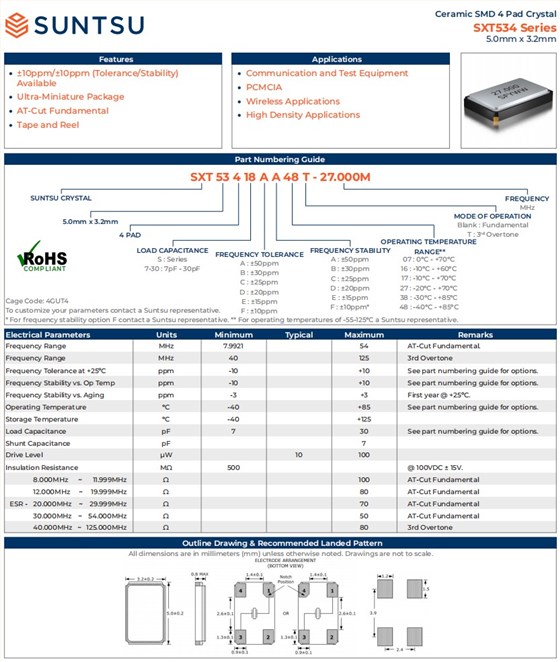

SXT534,SXT53410AC16-25.000M,5032mm,Suntsu医疗设备晶振,参数表
Electrical Parameters
Units
Minimum
Typical
Maximum
Remarks
Frequency Range
MHz
25
AT-Cut Fundamental.
Frequency Range
MHz
40
125
3rd Overtone
Frequency Tolerance at +25ºC
ppm
-10
+10
See part numbering guide for options.
Frequency Stability vs. Op Temp
ppm
-10
+10
See part numbering guide for options.
Frequency Stability vs. Aging
ppm
-3
+3
First year @ +25ºC.
Operating Temperature
°C
-40
+85
See part numbering guide for options.
Storage Temperature
°C
-40
+125
Load Capacitance
pF
7
30
See part numbering guide for options.
Shunt Capacitance
pF
7
Drive Level
µW
10
100
Insulation Resistance
M?
500
@ 100VDC ± 15V.
8.000MHz~11.999MHz
?
100
AT-Cut Fundamental
12.000MHz~19.999MHz
?
80
AT-Cut Fundamental
ESR- 20.000MHz~29.999MHz
?
70
AT-Cut Fundamental
30.000MHz ~54.000MHz
?
50
AT-Cut Fundamental
40.000MHz~125.000MHz
?
80
3rd Overtone

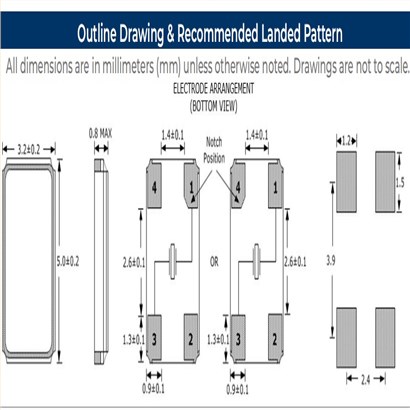

SXT534,SXT53410AC16-25.000M,5032mm,Suntsu医疗设备晶振,尺寸图
| 石英晶体 | 型号 | 频率 | 负载 | 工作温度 | 频率稳定度 | 频率容差 |
| SXT53410AA07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±50ppm | ±50ppm |
| SXT53410AA16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±50ppm | ±50ppm |
| SXT53410AA17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±50ppm | ±50ppm |
| SXT53410AA27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±50ppm | ±50ppm |
| SXT53410AB07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±50ppm | ±30ppm |
| SXT53410AB16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±50ppm | ±30ppm |
| SXT53410AB17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±50ppm | ±30ppm |
| SXT53410AB27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±50ppm | ±30ppm |
| SXT53410AC07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±50ppm | ±25ppm |
| SXT53410AC16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±50ppm | ±25ppm |
| SXT53410AC17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±50ppm | ±25ppm |
| SXT53410AC27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±50ppm | ±25ppm |
| SXT53410AD07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±50ppm | ±20ppm |
| SXT53410AD16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±50ppm | ±20ppm |
| SXT53410AD17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±50ppm | ±20ppm |
| SXT53410AD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±50ppm | ±20ppm |
| SXT53410AE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±50ppm | ±15ppm |
| SXT53410AE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±50ppm | ±15ppm |
| SXT53410AE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±50ppm | ±15ppm |
| SXT53410AE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±50ppm | ±15ppm |
| SXT53410BB07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±30ppm | ±30ppm |
| SXT53410BB16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±30ppm | ±30ppm |
| SXT53410BB17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±30ppm | ±30ppm |
| SXT53410BB27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±30ppm | ±30ppm |
| SXT53410BC07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±30ppm | ±25ppm |
| SXT53410BC16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±30ppm | ±25ppm |
| SXT53410BC17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±30ppm | ±25ppm |
| SXT53410BC27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±30ppm | ±25ppm |
| SXT53410BD07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±30ppm | ±20ppm |
| SXT53410BD16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±30ppm | ±20ppm |
| SXT53410BD17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±30ppm | ±20ppm |
| SXT53410BD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±30ppm | ±20ppm |
| SXT53410BE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±30ppm | ±15ppm |
| SXT53410BE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±30ppm | ±15ppm |
| SXT53410BE17-25.000M | 5032晶振 | 25.000M | 10pF | -10°C - +70°C | ±30ppm | ±15ppm |
| SXT53410BE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±30ppm | ±15ppm |
| SXT53410CC07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±25ppm | ±25ppm |
| SXT53410CC16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±25ppm | ±25ppm |
| SXT53410CC17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±25ppm | ±25ppm |
| SXT53410CC27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±25ppm | ±25ppm |
| SXT53410CD07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±25ppm | ±20ppm |
| SXT53410CD16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±25ppm | ±20ppm |
| SXT53410CD17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±25ppm | ±20ppm |
| SXT53410CD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±25ppm | ±20ppm |
| SXT53410CE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±25ppm | ±15ppm |
| SXT53410CE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±25ppm | ±15ppm |
| SXT53410CE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±25ppm | ±15ppm |
| SXT53410CE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±25ppm | ±15ppm |
| SXT53410DD07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±20ppm | ±20ppm |
| SXT53410DD16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±20ppm | ±20ppm |
| SXT53410DD17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±20ppm | ±20ppm |
| SXT53410DD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±20ppm | ±20ppm |
| SXT53410DE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±20ppm | ±15ppm |
| SXT53410DE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±20ppm | ±15ppm |
| SXT53410DE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±20ppm | ±15ppm |
| SXT53410DE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±20ppm | ±15ppm |
| SXT53410EE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±15ppm | ±15ppm |
| SXT53410EE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±15ppm | ±15ppm |
| SXT53410EE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±15ppm | ±15ppm |
| SXT53410EE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±15ppm | ±15ppm |
| SXT53410FE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±10ppm | ±15ppm |
| SXT53410FE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±10ppm | ±15ppm |
| SXT53410FE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±10ppm | ±15ppm |
| SXT53410FE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±10ppm | ±15ppm |
