5032mm,QCM40-21AF18-24.576,QCM40,QVS谐振器,24.576MHz

产品简介

5032mm,QCM40-21AF18-24.576,QCM40,QVS谐振器,24.576MHz，美国进口晶振，QVS晶振，型号：QCM40系列，编码为：QCM40-21AF18-24.576，频率稳定性：±50ppm，工作温度范围：0℃至+70℃，频率为：24.576MHz，负载：18pF，小体积晶振尺寸：5.0x3.2x1.3mm封装，四脚贴片晶振，石英晶振，谐振器，无源晶振，SMD石英晶体，石英晶体谐振器，无铅环保晶振。具有超小型，轻薄型，高性能，高可靠性，高品质，高质量等特点。应用于：通讯设备晶振，无线蓝牙晶振，物联网应用晶振，汽车电子晶振，安防设备晶振，智能家居等应用。

产品详情

5032mm,QCM40-21AF18-24.576,QCM40,QVS谐振器,24.576MHz，产品特点：

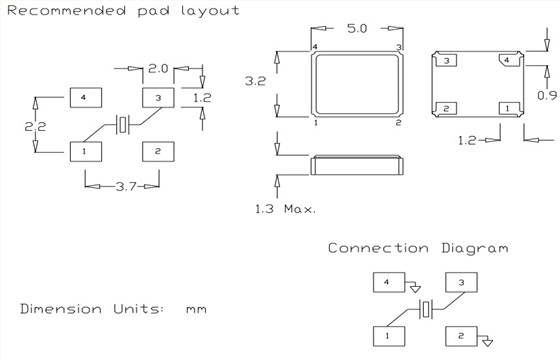

标准尺寸：5.0x3.2x1.3mm包装

SMD晶振

频率范围：8MHz~150MHz

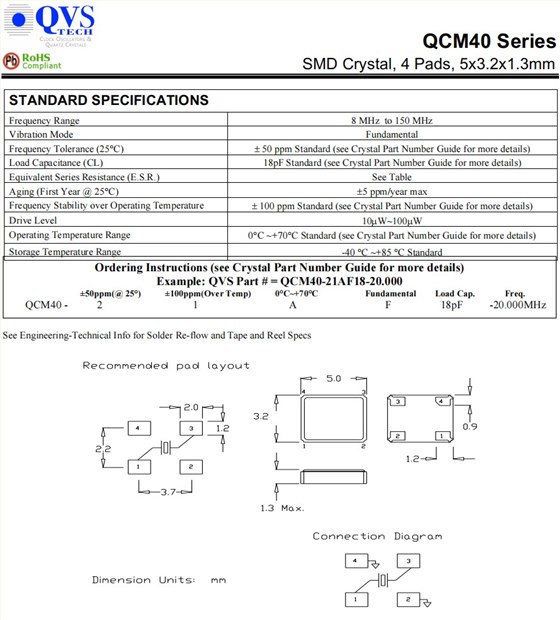

5032mm,QCM40-21AF18-24.576,QCM40,QVS谐振器,24.576MHz,参数表

Frequency Range	24.576000 MHz
Vibration Mode	Fundamental
Frequency Tolerance (25℃)	±50 ppm Standard (see Crystal Part Number Guide for more details)
Load Capacitance (CL)	18pF Standard (see Crystal Part Number Guide for more details)
Equivalent Series Resistance (E.S.R.)	See Table
Aging (First Year @ 25℃)	±5 ppm/year max
Frequency Stability over Operating Temperature	±100 ppm Standard (see Crystal Part Number Guide for more details)
Drive Level	10µW~100µW
Operating Temperature Range	0℃ ~+70℃ Standard (see Crystal Part Number Guide for more details)
Storage Temperature Range	-40℃ ~+85℃ Standard
