QC4A12.0000F12B33R,Qantek高性能晶振,无线应用晶振

产品简介

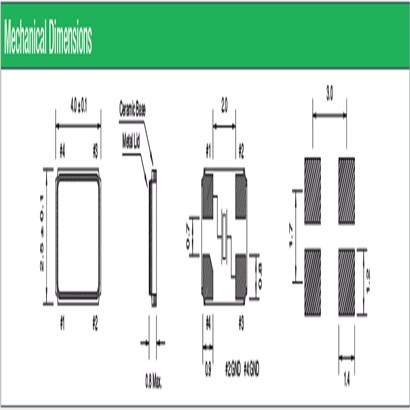

QC4A12.0000F12B33R,Qantek高性能晶振,无线应用晶振，美国进口晶振，Qantek康泰克晶振，型号：QC4A，编码为：QC4A12.0000F12B33R，频率为：12.000MHz，小体积晶振尺寸：4.0x2.5x0.8mm封装，陶瓷封装和金属盖确保高可靠性，四脚贴片晶振，石英晶体谐振器，石英晶振，SMD晶振，无源晶振，无铅环保晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高度低，紧密的公差和稳定性，耐热及耐环境特点。进口晶振，适用于：小型薄型设备，无线应用，蓝牙模块，调制解调器，通信设备，测试设备，PMCIA，数码电子，智能家居等应用。

产品详情

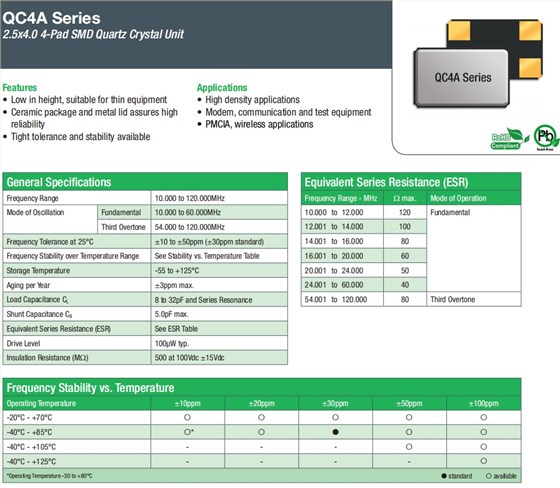

QC4A12.0000F12B33R,Qantek高性能晶振,无线应用晶振参数表

Frequency Range		12.000MHz
Mode of Oscillation	Fundamental	10.000 to 60.000MHz
	Third Overtone	54.000 to 120.000MHz
Frequency Tolerance at 25°C		±10 to ±50ppm (±30ppm standard)
Frequency Stability over Temperature Range		See Stability vs. Temperature Table
Storage Temperature		-55 to +125°C
Aging per Year		±3ppm max.
Load Capacitance CL		8 to 32pF and Series Resonance
Shunt Capacitance C0		5.0pF max.
Equivalent Series Resistance (ESR)		See ESR Table
Drive Level		100μW typ.
Insulation Resistance (MΩ)		500 at 100Vdc ±15Vdc
