SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振

SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振，日本电波株式会社NDK晶振，型号NX5032GA，产品编码为：NX5032GA-16MHZ-STD-CSK-8，是一款小体积晶振尺寸5.0x3.2x1.3mm 两脚贴片晶振，石英晶体谐振器，无源晶振，石英晶振，无铅环保晶振，频率：16.000MHz，工作温度范围：−40℃至+85℃，具超小型，轻薄型，优异的环境阻力性能，耐热性和耐冲击性，回流温度分布（可用于无铅焊接），即使在极端恶劣的环境条件下也能保持稳定的启动特性，符合AEC-Q200。石英晶体适用于汽车配件，消费电子产品晶振设备，参考时钟来源的视频和音频设备应用。

SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振，参数表

Item	Model	NX5032GA
Nominal Frequency		8 to 10.5 MHz	10.5 to 50 MHz	8 to 10.5 MHz	10.5 to 50 MHz	50 to 55 MHz
Overtone Order		Fundamental
Frequency Tolerance (25 ±3 °C)		±30 × 10−6		±20 × 10−6
Frequency versus Temperature Characteristics (with reference to +25 °C)		±50 × 10−6		±30 × 10−6
Operating Temperature Range		−40 to +85 °C		−10 to +70 °C
Storage Temperature Range		−40 to +125 °C		−40 to +85 °C
Equivalent Series Resistance		Refer to *1		Refer to *2
Level of Drive		50 μW (Max. 500 μW)
Load Capacitance		8 pF
Specifications Number		STD-CSK-7	STD-CSK-8	STD-CSK-3	STD-CSK-4	STD-CKW3

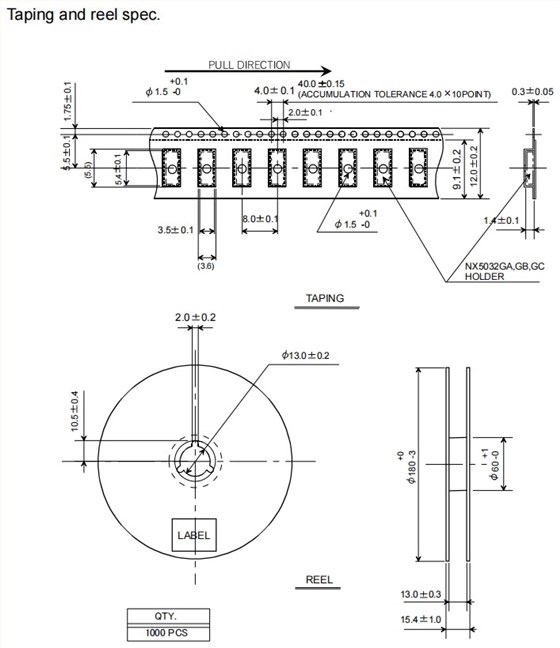

SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振，尺寸图

进口石英晶振	品牌	型号	频率	频率稳定度	包装/封装
NX5032GA-24.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	24MHz	±50ppm	2-SMD, No Lead
NX5032GA-25.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	25MHz	±50ppm	2-SMD, No Lead
NX5032GA-27.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	27MHz	±50ppm	2-SMD, No Lead
NX5032GA-16.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	16MHz	±50ppm	2-SMD, No Lead
NX5032GA-10.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	10MHz	±50ppm	2-SMD, No Lead
NX5032GA-12.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	12MHz	±50ppm	2-SMD, No Lead
NX5032GA-48.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	48MHz	±50ppm	2-SMD, No Lead
NX5032GA-16.384000MHZ-LN-CD-1	NDK晶振	NX5032GA	16.384MHz	±50ppm	2-SMD, No Lead
NX5032GA-20.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	20MHz	±50ppm	2-SMD, No Lead
NX5032GA-32.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	32MHz	±50ppm	2-SMD, No Lead
NX5032GA-27M-STD-CSK-4	NDK晶振	NX5032GA	27MHz	±30ppm	2-SMD, No Lead
NX5032GA-12.288M-STD-CSK-4	NDK晶振	NX5032GA	12.288MHz	±30ppm	2-SMD, No Lead
NX5032GA-14.31818M-STD-CSK-4	NDK晶振	NX5032GA	14.31818MHz	±30ppm	2-SMD, No Lead
NX5032GA-25.000M-STD-CSK-4	NDK晶振	NX5032GA	25MHz	±30ppm	2-SMD, No Lead
NX5032GA-12MHZ-STD-CSK-4	NDK晶振	NX5032GA	12MHz	±30ppm	2-SMD, No Lead
NX5032GA-10.000M-STD-CSU-1	NDK晶振	NX5032GA	10MHz	±150ppm	2-SMD, No Lead
NX5032GA-20.000M-STD-CSU-2	NDK晶振	NX5032GA	20MHz	±150ppm	2-SMD, No Lead
NX5032GA-12.000M-STD-CSU-2	NDK晶振	5032晶振	12MHz	±150ppm	2-SMD, No Lead
NX5032GA-20.000M-STD-CSK-4	NDK晶振	NX5032GA	20MHz	±30ppm	2-SMD, No Lead
NX5032GA-13.56M-STD-CSK-4	NDK晶振	NX5032GA	13.56MHz	±30ppm	2-SMD, No Lead
NX5032GA-12.288000MHZ-LN-CD-1	NDK晶振	NX5032GA	12.288MHz	±50ppm	2-SMD, No Lead
NX5032GA-16MHZ-STD-CSK-8	NDK晶振	NX5032GA	16MHz	±50ppm	2-SMD, No Lead
NX5032GA-16MHZ-STD-CSK-4	NDK晶振	NX5032GA	16MHz	±30ppm	2-SMD, No Lead
NX5032GA- 9.84375M-STD-CSU-1	NDK晶振	NX5032GA	9.84375MHz	±150ppm	2-SMD, No Lead
NX5032GA-10.000M-STD-CSK-3	NDK晶振	NX5032GA	10MHz	±30ppm	2-SMD, No Lead
NX5032GA-30.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	30MHz	±50ppm	2-SMD, No Lead
NX5032GA-40.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	40MHz	±50ppm	2-SMD, No Lead
NX5032GA-12MHZ-STD-CSK-8	NDK晶振	NX5032GA	12MHz	±50ppm	2-SMD, No Lead
NX5032GA-16.000M-STD-CSU-2	NDK晶振	NX5032GA	16MHz	±150ppm	2-SMD, No Lead
NX5032GA-8.000M-STD-CSU-1	NDK晶振	NX5032GA	8MHz	±150ppm	2-SMD, No Lead
NX5032GA-13.560000MHZ-LN-CD-1	NDK晶振	NX5032GA	13.56MHz	±50ppm	2-SMD, No Lead
NX5032GA-11.0592M-STD-CSK-4	NDK晶振	NX5032GA	11.0592MHz	±30ppm	2-SMD, No Lead
NX5032GA-30.000M-STD-CSK-4	NDK晶振	NX5032GA	30MHz	±30ppm	2-SMD, No Lead
NX5032GA-24.000M-STD-CSK-4	NDK晶振	NX5032GA	24MHz	±30ppm	2-SMD, No Lead
NX5032GA-40.000M-STD-CSU-2	NDK晶振	NX5032GA	40MHz	±150ppm	2-SMD, No Lead
NX5032GA -13.56M-STD-CSU-2	NDK晶振	NX5032GA	13.56MHz	±150ppm	2-SMD, No Lead
