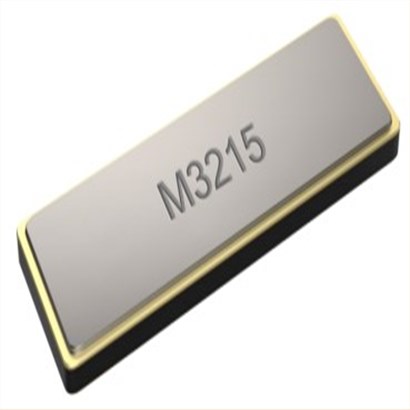

M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN音叉晶体

产品简介

M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN音叉晶体，欧美晶振，德国进口晶振，PETERMANN彼得曼晶振，型号：M3215系列，编码为：M3215-32.768kHz-±20ppm-12.5pF，频率为：32.768KHz，负载电容：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5mm封装，音叉晶体，两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。应用程序：出色的时钟发生器，CPU应用晶振、无线应用晶振、移动通信晶振，钟表电子晶振，仪器仪表设备晶振等应用。

产品详情

2012mm,M2012-32.768kHz-±20ppm-12.5pF,PETERMANN超小型晶振，产品特点：

+最便宜的陶瓷包装迷你手表水晶
+超薄超小型3215晶振
+标准工作温度范围为-40/+85°C
+出色的时钟发生器，适用于CPU、无线、移动通信等。

20180421171456_6296统一

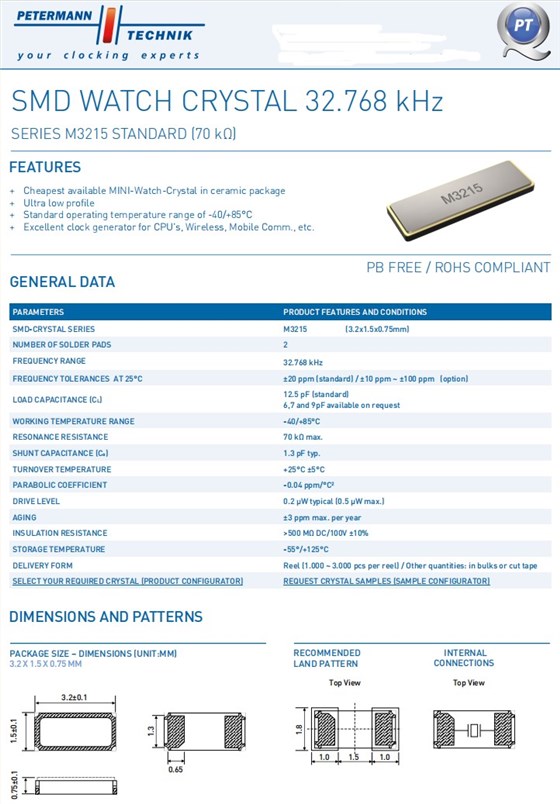

M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN音叉晶体参数表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS

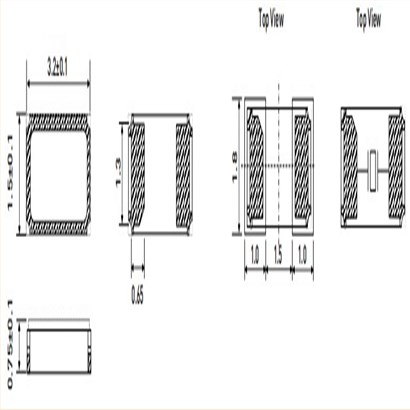

SMD-CRYSTAL SERIES	M3215 (3.2x1.5x0.75mm)
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25℃	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard)
LOAD CAPACITANCE (CL)	6,7 and 9pF available on request
WORKING TEMPERATURE RANGE	-40/+85℃
RESONANCE RESISTANCE	70 kΩ typ.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25℃ ±5℃
PARABOLIC COEFFICIENT	-0.04 ppm/℃2
DRIVE LEVEL	0.2 µW typical (0.5 µW max.)
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55/+125℃
DELIVERY FORM	Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape
