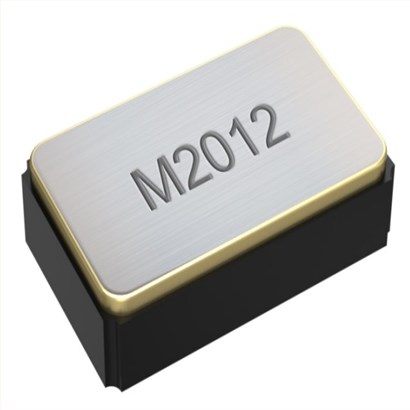

2012mm,M2012-32.768kHz-±20ppm-12.5pF,PETERMANN超小型晶振

产品简介

2012mm,M2012-32.768kHz-±20ppm-12.5pF,PETERMANN超小型晶振，德国进口晶振，PETERMANN彼得曼晶振，型号：M2012系列，编码为：M2012-32.768kHz-±20ppm-12.5pF，频率为：32.768K贴片晶振，负载电容：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.0x1.2mm封装，两脚贴片晶振，石英晶振，无源晶振，SMD时钟晶体，石英晶体谐振器。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境等特点。石英晶振，应用程序：出色的时钟发生器，CPU应用晶振、无线应用晶振、移动通信晶振，可穿戴设备晶振，钟表电子晶振，仪器仪表设备晶振，数字显示晶振等应用。

产品详情

2012mm,M2012-32.768kHz-±20ppm-12.5pF,PETERMANN超小型晶振，产品特点：

+最小的低成本水晶表
+超低轮廓
+标准工作温度范围为-40/+85°C

20180421171456_6296统一

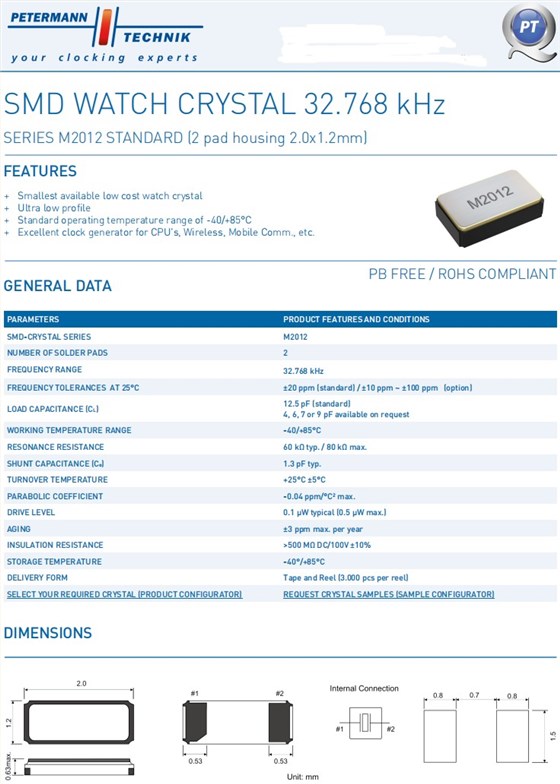

2012mm,M2012-32.768kHz-±20ppm-12.5pF,PETERMANN超小型晶振参数表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M2012
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard)
LOAD CAPACITANCE (CL)	4, 6, 7 or 9 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C
RESONANCE RESISTANCE	60 kΩ typ. / 80 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.04±0.01 ppm/°C²
DRIVE LEVEL	0.1 µW typical (0.5 μW max.)
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-40/+85°C
DELIVERY FORM	Tape and Reel (3.000 pcs per reel)
