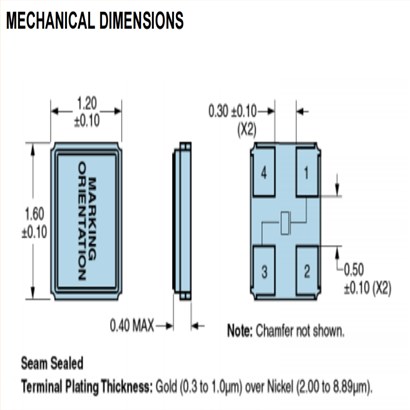

EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器，尺寸1.2mmx1.6mmx0.40mm，频率44MHZ，美国日蚀晶体，欧美进口晶振，石英晶体谐振器，石英贴片晶振，四脚贴片晶振，水晶振动子，无源贴片晶振，SMD晶振，无源晶振，轻薄型晶振，无铅环保晶振，1612mm贴片晶振，6G室内基站晶振，小型设备晶振，多媒体设备晶振，数字视频专用晶振，仪器设备晶振，蓝牙晶振，低耗能晶振，低成本晶振，低老化晶振，高质量晶振，具有高质量低成本的特点。

石英晶振通过合理的真空退火技术可提高晶振主要参数的稳定性,以及提高石英晶振的年老化特性，该器件很适合用于数字视频，多媒体设备，仪器设备，小型设备，6G室内基站等领域。EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器.

EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器 参数表

ELECTRICAL SPECIFICATIONS
Nominal Frequency			44MHz
Frequency Tolerance/Stability			±50ppm at 25°C, ±100ppm over -10°C to +60°C
			±50ppm at 25°C, ±100ppm over -20°C to +70°C
			±50ppm at 25°C, ±100ppm over -40°C to +85°C
			±30ppm at 25°C, ±50ppm over -10°C to +60°C
			±30ppm at 25°C, ±50ppm over -20°C to +70°C
			±30ppm at 25°C, ±50ppm over -40°C to +85°C
			±15ppm at 25°C, ±30ppm over -10°C to +60°C
			±15ppm at 25°C, ±30ppm over -20°C to +70°C
			±15ppm at 25°C, ±30ppm over -40°C to +85°C
			±15ppm at 25°C, ±20ppm over -10°C to +60°C
			±15ppm at 25°C, ±20ppm over -20°C to +70°C
			±15ppm at 25°C, ±20ppm over -40°C to +85°C
			±10ppm at 25°C, ±15ppm over -10°C to +60°C
			±10ppm at 25°C, ±15ppm over -20°C to +70°C
Aging at 25°C			±3ppm/year Maximum
Load Capacitance			Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant
Shunt Capacitance			3.5pF Maximum
Equivalent Series Resistance			150 Ohms Maximum over Nominal Frequency of 24MHz to 40MHz
			100 Ohms Maximum over Nominal Frequency of 40.0000001MHz to 54MHz
Mode of Operation			AT-Cut Fundamental
Drive Level			100µWatts Maximum
Spurious Response			Measured from Fo to Fo +5000ppm
			-3dB Minimum
Storage Temperature Range			-40°C to +125°C
Insulation Resistance			Measured at 100Vdc
			500 Megaohms Minimum
