CTF6-A2C3-32.768KD12.5,CTF6,32.768kHz,Cardinal插件晶振，Cardinal卡迪纳尔晶振，美国进口晶振，型号：CTF6，编码为：CTF6-A2C3-32.768KD12.5，工作温度范围：-40℃至+85℃，精度：±30ppm，频率：32.768KHz，负载：12.5pF，小体积晶振尺寸：2x6mm晶振，音叉晶体，两脚插件晶振，无源晶振，圆柱晶振，石英晶振，石英晶体谐振器，无铅晶振，应用于：电话机晶振，通讯晶振，数码电子晶振，智能家居晶振，高清电视机晶振，游戏机晶振，电脑晶振等应用。

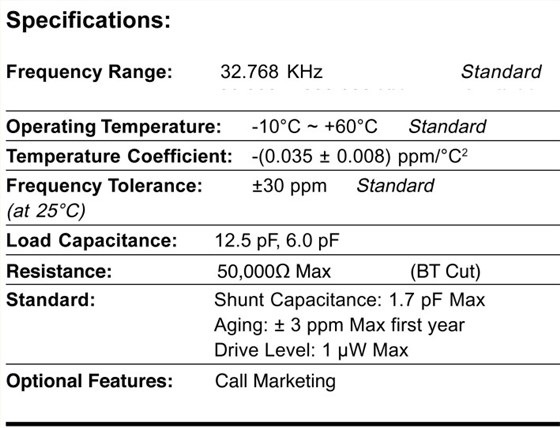

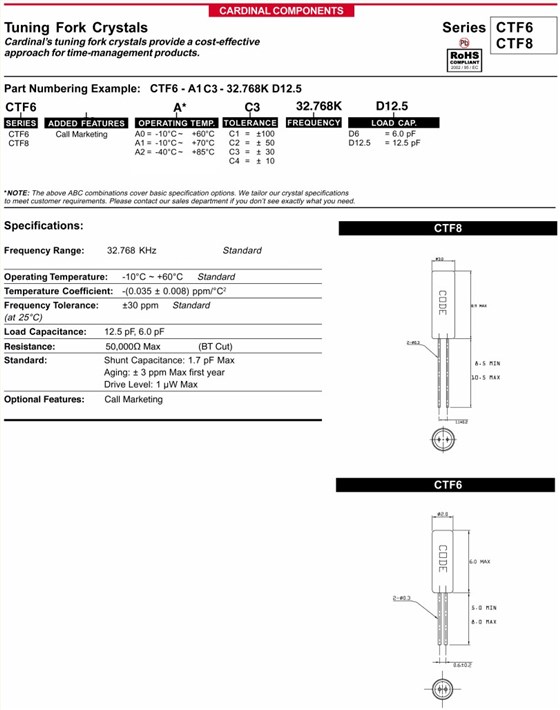

CTF6-A2C3-32.768KD12.5,CTF6,32.768kHz,Cardinal插件晶振,参数表

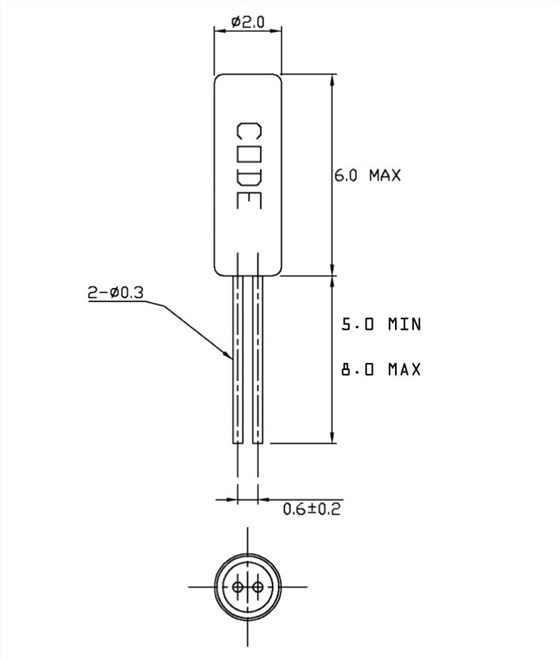

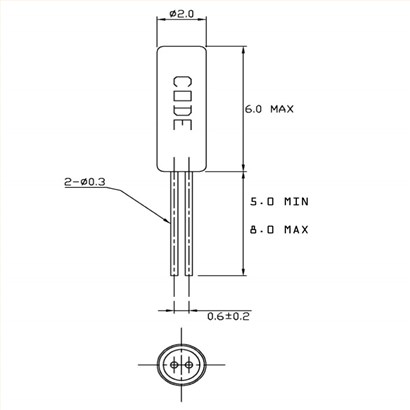

CTF6-A2C3-32.768KD12.5,CTF6,32.768kHz,Cardinal插件晶振,尺寸图
| 晶振编码 | 厂家 | 型号 | 频率 | 频率稳定度 | Description 参数 |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | - | CRYSTAL 32.7680KHZ 6PF SMD |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | - | CRYSTAL 32.7680KHZ 6PF SMD |
| CSM1Z-A5B2C5-60-24.0D18 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CTF6-A2C5-32.768KD12.5 | Cardinal晶振 | CTF6 | 32.768kHz | - | CRYSTAL 32.7680KHZ 12.5PF T/H |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | - | CRYSTAL 32.7680KHZ 12.5PF SMD |
| CSM1Z-A2B2C3-40-30.0D18 | Cardinal晶振 | CSM1 | 30MHz | ±50ppm | CRYSTAL 30.0000MHZ 18PF SMD |
| CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CSM4 | 12MHz | ±30ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CSM4 | 25MHz | ±30ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CX532 | 16MHz | ±30ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-22.1184D18 | Cardinal晶振 | CSM1 | 22.1184MHz | ±50ppm | CRYSTAL 22.1184MHZ 18PF SMD |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CX325 | 20MHz | ±50ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-25.0D18-F | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | - | CRYSTAL 32.7680KHZ 12.5PF SMD |
| CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CSM4 | 10MHz | ±30ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CSM4 | 20MHz | ±30ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CX532 | 12MHz | ±30ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-80-13.5D18 | Cardinal晶振 | CSM1 | 13.5MHz | ±50ppm | CRYSTAL 13.5000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-16.257D18 | Cardinal晶振 | CSM1 | 16.257MHz | ±50ppm | CRYSTAL 16.2570MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-24.576D18 | Cardinal晶振 | CSM1 | 24.576MHz | ±50ppm | CRYSTAL 24.5760MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-18.0D18 | Cardinal晶振 | CSM1 | 18MHz | ±50ppm | CRYSTAL 18.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-40-25.0D18 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-70-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1-A1B2C3-50-20.0D16 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | CRYSTAL 20.0000MHZ 16PF SMD |
| CSM1Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-27.0D18 | Cardinal晶振 | CSM1 | 27MHz | ±50ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-27.0D18-F | Cardinal晶振 | CSM1 | 27MHz | ±50ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CSM1 | 18MHz | ±50ppm | CRYSTAL 18.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 20PF SMD |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CSM4 | 16MHz | ±30ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CX5 | 27MHz | ±50ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CX5 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CX5 | 24.576MHz | ±50ppm | CRYSTAL 24.5760MHZ 18PF SMD |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CX5 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CX5 | 16MHz | ±50ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CX5 | 16MHz | ±50ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CX5 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CX532 | 27MHz | ±30ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CX532 | 20MHz | ±30ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CX532 | 12MHz | ±30ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CX532 | 30MHz | ±30ppm | CRYSTAL 30.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CX532 | 27MHz | ±30ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CX532 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CX532 | 25MHz | ±30ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CX532 | 20MHz | ±30ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CX5 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CSM1Z-A1B2C3-40-24-0D12 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 12PF SMD |
| CSM1Z-A5B2C5-40-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-40-25.0D18-F | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CPFBZ-A2C5-32.768D6 | Cardinal晶振 | CPFB | 32.768kHz | - | CRYSTAL 32.7680KHZ 6PF SMD |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CX5 | 12MHz | ±50ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CX5 | 12MHz | ±50ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CX5 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CX5 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CSM1Z-A2B4C7-60-24.0D18-F | Cardinal晶振 | CSM1 | 24MHz | ±10ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CX532 | 25MHz | ±30ppm | CRYSTAL 25.0000MHZ 18PF SMD |
