5032mm,XCR53-36M000-1C30B16,36MHz,Fortiming石英晶振

产品简介

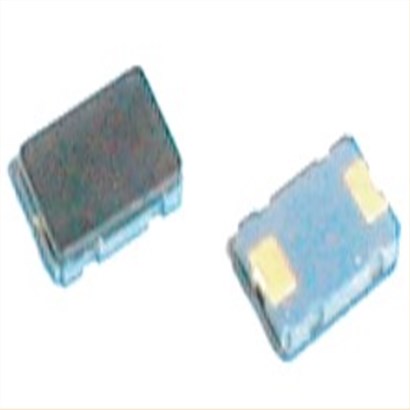

5032mm,XCR53-36M000-1C30B16,36MHz,Fortiming石英晶振，美国进口晶振，Fortiming富通晶振，型号：XCR53系列，编码为：XCR53-36M000-1C30B16，频率为：36.000MHz，精度：±20ppm，频率稳定性：±30ppm，工作温度范围：-40℃至+85℃，负载：16pF，小体积晶振尺寸：5.0x3.2x1.4mm封装，两脚贴片晶振，无源晶振，石英晶振，SMD晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，医疗设备晶振，智能家居晶振，数码电子晶振等应用。

产品详情

5032mm,XCR53-36M000-1C30B16,36MHz,Fortiming石英晶振，产品特点：

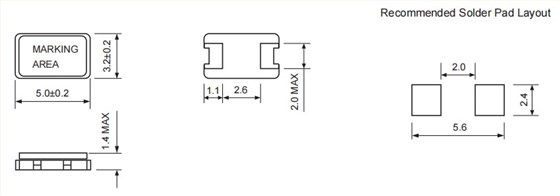

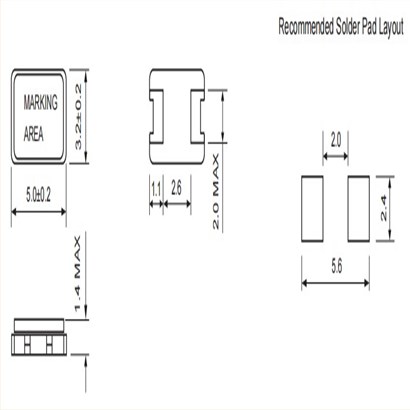

●超小型设计（5x3.2mm），最大高度1.4mm
●AT以经济成本削减性能
●频率范围：10MHz~54MHz贴片晶振
●行业因素标准足迹
●非常适合高密度表面安装

20180421171456_6296统一

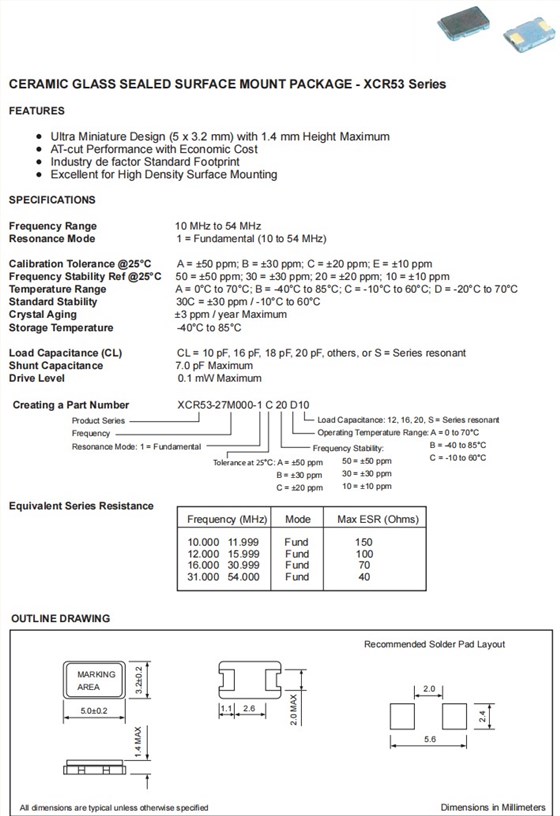

5032mm,XCR53-36M000-1C30B16,36MHz,Fortiming石英晶振参数表

Frequency	36 MHz
Resonance Mode	1 = Fundamental (10 to 54 MHz)
Calibration Tolerance @25°C	A = ±50 ppm; B = ±30 ppm; C = ±20 ppm; E = ±10 ppm
Frequency Stability Ref @25°C	50 = ±50 ppm; 30 = ±30 ppm; 20 = ±20 ppm; 10 = ±10 ppm
Temperature Range	A = 0°C to 70°C; B = -40°C to 85°C; C = -10°C to 60°C; D = -20°C to 70°C
Standard Stability	30C = ±30 ppm / -10°C to 60°C
Crystal Aging	±3 ppm / year Maximum
Operatable Temperature Range	-40°C to 85°C
Load Capacitance (CL)	CL = 10 pF, 16 pF, 18 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance	7.0 pF Maximum
Drive Level	0.1 mW Typical, 1 mW Maximum
