QTC6A27.0000FDT3A30R,6035mm,27MHz,Quarztechnik夸克晶振,QTC6A

频率：27.000MHz

尺寸：6.0x3.5mm

QTC6A27.0000FDT3A30R,6035mm,27MHz,Quarztechnik夸克晶振,QTC6A，德国进口晶振，Quarztechnik夸克晶振，型号：QTC6A，编码为：QTC6A27.0000FDT3A30R，频率为：27.000MHz，工作温度范围：-40℃至125℃，小体积晶振尺寸：6.0x3.5mm，四脚贴片晶振，石英晶振，6035晶振，石英晶体谐振器，无源晶体，SMD石英晶体，无铅晶振，陶瓷封装和金属盖确保高可靠性。具有紧密的公差和稳定性，超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。无源晶振，高度低，适用于薄型设备，高密度应用，汽车电子晶振，调制解调器、通信和测试设备，MCIA，无线应用，汽车应用，通讯设备，无线网络，智能家居等。

订购热线：0755-2783-7683

QTC6A27.0000FDT3A30R,6035mm,27MHz,Quarztechnik夸克晶振,QTC6A, 参数表

Frequency Range		27.000MHz
Mode of Oscillation	Fundamental	8.000 to 40.000MHz
	Third Overtone	40.000 to 160.000MHz
Frenquency Tolerance at 25°C		±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range		See Stability vs. Temperature Table
Storage Temperature		-55 to +125°C
Aging per Year		±3ppm max.
Load Capacitance CL		10 to 32pF and Series Resonance
Shunt Capacitance C0		7.0pF max.
Equivalent Series Resistance (ESR)		See ESR Table
Drive Level		500μW max.
Insulation Resistance (MΩ)		500 at 100Vdc ±15Vdc

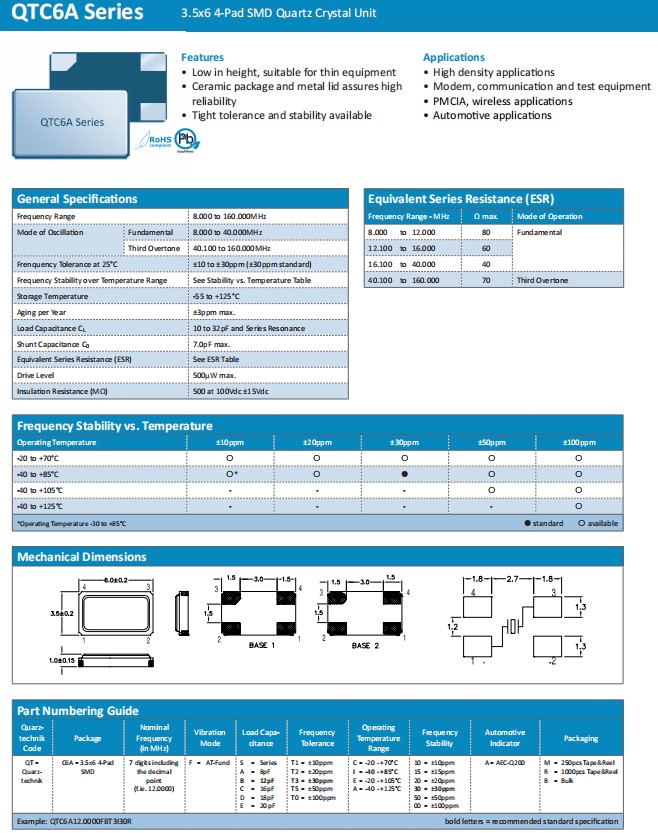

QTC6A27.0000FDT3A30R,6035mm,27MHz,Quarztechnik夸克晶振,QTC6A, 尺寸图

QTC6A27.0000FDT3A30R,6035mm,27MHz,Quarztechnik夸克晶振,QTC6A

产品特点：
外形尺寸：6.0x3.5mm 贴片晶振
频率范围：8.000MHz~160.000MHz
高度低，适用于薄型设备
陶瓷封装和金属盖确保高可靠性
具有紧密的公差和稳定性
高密度应用
调制解调器、通信和测试设备
PMCIA，无线应用
汽车应用

晶振编码	频率	负载电容	精度	稳定性	工作温度范围
QTC7A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A10.0000FDT1I20M	10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.31818FDT1I20M	14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A19.6608FDT1I20M	19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A20.0000FDT1I20M	20.0 MHz石英晶振	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.2880FDT1I20M	12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A15.3600FDT1I20M	15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A18.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A24.5760FDT1I20M	24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A30.0000FDT1I20M	30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A40.0000FDT1I20M	40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A48.0000FDT1I20M	48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3216.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3218.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3220.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3224.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3225.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3227.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
