QTC5A,QTC5A35.0000FET3I30R,5032mm,35M,Quarztechnik通信晶振

频率：35.000MHz

尺寸：5.0x3.2mm

QTC5A,QTC5A35.0000FET3I30R,5032mm,35M,Quarztechnik通信晶振，德国进口晶振，Quarztechnik夸克晶振，型号：QTC5A，编码为：QTC5A35.0000FET3I30R，频率为：35.000MHz，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，无源晶振，5032晶振，石英晶振，SMD晶振，石英晶体谐振器，石英晶体，无铅晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。进口晶振，应用于：高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，蓝牙模块，汽车电子控制板，车载晶振，医疗设备，安防设备，数码电子等应用。

订购热线：0755-2783-7683

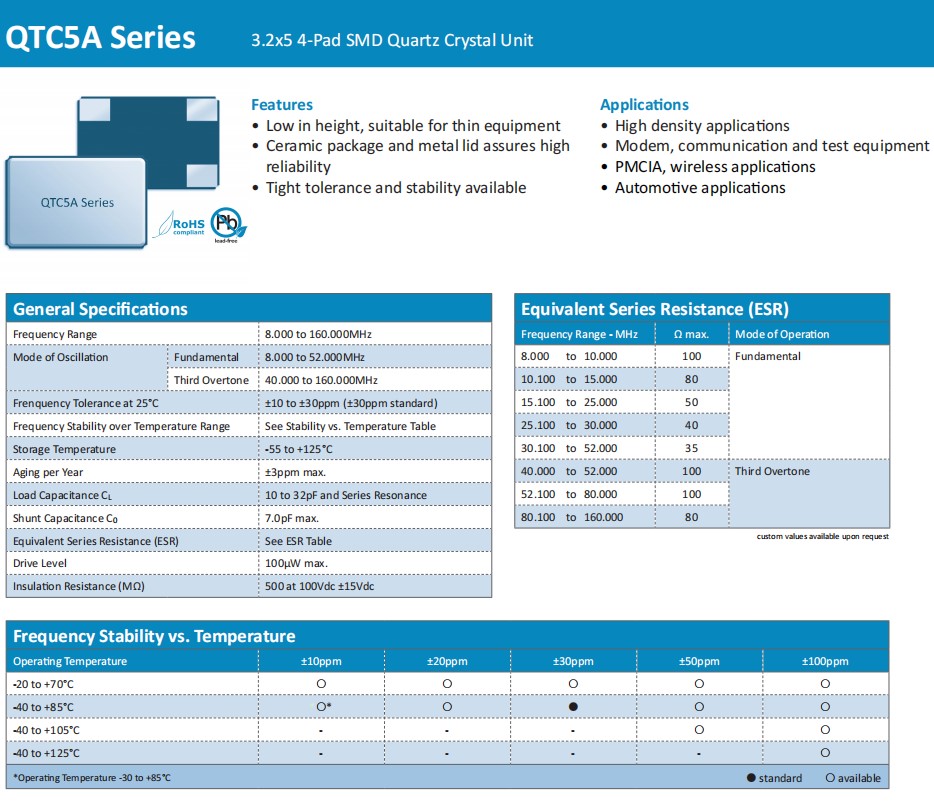

QTC5A,QTC5A35.0000FET3I30R,5032mm,35M,Quarztechnik通信晶振 参数表

Frequency Range		35.000 MHz
Mode of Oscillation	Fundamental	8.000 to 52.000MHz
	Third Overtone	40.000 to 160.000MHz
Frenquency Tolerance at 25°C		±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range		See Stability vs. Temperature Table
Storage Temperature		-55 to +125°C
Aging per Year		±3ppm max.
Load Capacitance CL		10 to 32pF and Series Resonance
Shunt Capacitance C0		7.0pF max.
Equivalent Series Resistance (ESR)		See ESR Table
Drive Level		100μW max.
Insulation Resistance (MΩ)		500 at 100Vdc ±15Vdc

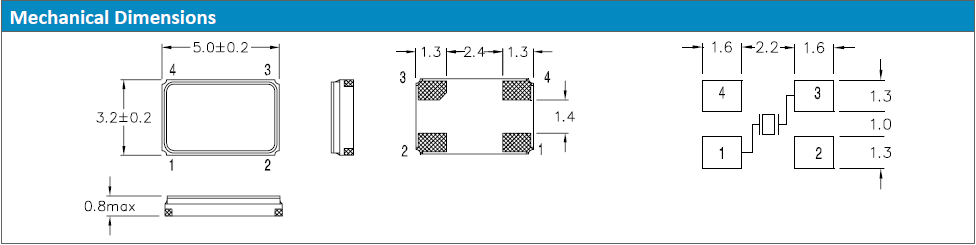

QTC5A,QTC5A35.0000FET3I30R,5032mm,35M,Quarztechnik通信晶振, 尺寸图

QTC5A,QTC5A35.0000FET3I30R,5032mm,35M,Quarztechnik通信晶振

产品特点：

外形尺寸：5.0mmx3.2mm石英晶体

频率范围：8.000MHz~160.000MHz

高度低，适用于薄型设备
陶瓷封装和金属盖确保高可靠性
具有紧密的公差和稳定性
应用程序
高密度应用
调制解调器、通信和测试设备
PMCIA，无线应用

汽车应用

贴片石英晶振	频率	负载电容	精度	稳定性	工作温度范围
QTC7A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A10.0000FDT1I20M	10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.31818FDT1I20M	14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A19.6608FDT1I20M	19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A8.00000FDT1I20M	8.0 MHz夸克晶振	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.2880FDT1I20M	12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A15.3600FDT1I20M	15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A18.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A24.5760FDT1I20M	24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A30.0000FDT1I20M	30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A40.0000FDT1I20M	40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A48.0000FDT1I20M	48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3216.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3218.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3220.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3224.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3225.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3227.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
