HX502系列支持高温且极低抖动性能,HX51706001,LVPECL差分晶振,ECERA晶振

2022-07-04 10:53:49 统一电子

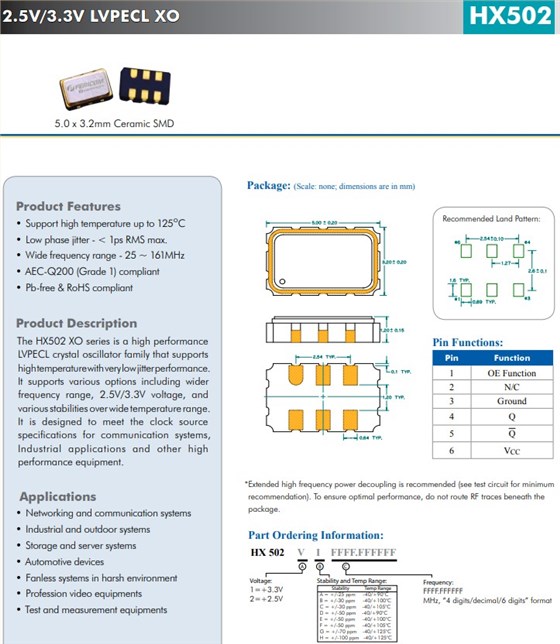

HX502 XO系列是高性能LVPECL晶振系列，支持高温且抖动性能极低，HX502系列、小体积尺寸5.0x3.2mm、高温LVPECL差分晶体振荡器，它支持各种选项，包括更宽的频率范围、2.5V/3.3V电压以及在宽温度范围内的各种稳定性。它旨在满足通信系统、工业应用和其他高性能设备的时钟源规范。

产品特点：
支持高达125℃的高温振荡器
低相位抖动 - < 1ps RMS最大值。
宽频率范围 - 25至161MHz
符合AEC-Q200（1级）标准
无铅且符合RoHS标准
应用：
网络和通信系统
工业和户外系统
存储和服务器系统
汽车设备
恶劣环境下的无风扇系统
专业视频设备
测试和测量设备

HX502系列支持高温且极低抖动性能,HX51706001,LVPECL差分晶振,ECERA晶振,小体积晶振

HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C

1

Product Parameters

Subfamily High Temp XO
Product Series HX
Compliance(Only Automotive supports PPAP) Standard
Freq Range (MHz) 25 to 162 (2.5V/3.3V)
Jitter RMS (ps) <1
Stability (PPM) 25 to 100
Package Size (mm) 5.0 x 3.2 x 1.2
PkgType Ceramic Seam
Output Logic LVPECL
Supply Voltage (V) 3.3, 2.5
Pads 6

HX502系列支持高温且极低抖动性能,HX51706001,LVPECL差分晶振,ECERA晶振,小体积晶振

产品参数：

亚科 高温XO
产品系列 华鑫
合规性（仅汽车支持 PPAP）标准
频率范围 (MHz) 25至162 (2.5V/3.3V)
抖动均方根 (ps) <1
稳定性 25PPM到100PPM
包装尺寸 5.0x3.2x1.2mmSMD晶振
包装类型 陶瓷缝
输出逻辑 LVPECL
电源电压 3.3V, 2.5V
垫 6
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C


我们的晶体振荡器(CXO)提供高价值、卓越的性能和功能以及卓越的品质和服务。我们为批量生产提供快速周转样品、响应式技术支持和快速交货时间。
提供多种类型和特性：
1) 尺寸从 7x5mm 到 2.0x1.6mm，
2) 传统 CXO 的温度稳定性为 ±5PPM，
3) CMOS/TTL、LVPECL、LVDS、HCSL的输出逻辑格式，和慢性粒细胞白血病。
我们的CXO被领先制造商用于各种要求苛刻的应用，从消费类到工业、汽车 (AEC-Q200/AEC-Q104)、网络、存储、计算、电信等。

HX502系列支持高温且极低抖动性能,HX51706001,LVPECL差分晶振,ECERA晶振,小体积晶振

NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
HX502系列支持高温且极低抖动性能,HX51706001,LVPECL差分晶振,ECERA晶振,小体积晶振

HX201 标准 25 ~ 100 2.0x1.6x0.75 CMOS 3.32.51.8 4 -1.8V/2.5V/3.3V、2.0x1.6mm、高温CMOS晶体振荡器
HX251 标准 25 ~ 100 2.5x2.0x0.9 CMOS 3.32.51.8 4 -1.8V/2.5V/3.3V、2.5x2.0mm、高温CMOS晶体振荡器
HX321 标准 25 ~ 100 3.2x2.5x1.0 CMOS 3.32.51.8 4 -1.8V/2.5V/3.3V、3.2x2.5mm、高温CMOS晶体振荡器
HX322 标准 25 ~ 100 3.2x2.5x1.0 LVPECL 3.32.5 6 - 2.5V/3.3V、3.2x2.5mm、高温LVPECL晶体振荡器
HX323 标准 25 ~ 100 3.2x2.5x1.0 LVDS 3.32.5 6 - 2.5V/3.3V、3.2x2.5mm、高温LVDS晶振
HX501 标准 25 ~ 100 5.0x3.2x1.2 CMOS 3.32.51.8 4 -1.8V/2.5V/3.3V、5.0x3.2mm、高温CMOS晶体振荡器
HX502 标准 25 ~ 100 5.0x3.2x1.2 LVPECL 3.32.5 6 - 2.5V/3.3V、5.0x3.2mm、高温LVPECL晶体振荡器
HX503 标准 25 ~ 100 5.0x3.2x1.2 LVDS 3.32.5 6 - 2.5V/3.3V、5.0x3.2mm、高温LVDS晶体振荡器
HX701 标准 25 ~ 100 7.0x5.0x1.4 CMOS 3.32.51.8 4 -1.8V/2.5V/3.3V、7.0x5.0mm、高温CMOS晶体振荡器
HX702 标准 25 ~ 100 7.0x5.0x1.4 LVPECL 3.32.5 6 - 2.5V/3.3V、7.0x5.0mm、高温LVPECL晶体振荡器
HX703 标准 25 ~ 100 7.0x5.0x1.4 LVDS 3.32.5 6 - 2.5V/3.3V、7.0x5.0mm、高温LVDS晶体振荡器
