DIODES百利通亚陶晶振所生产的石英晶振,贴片晶振,有源晶振,压电石英晶体元器件、压电石英晶体、有源晶体广泛应用于智能设备,汽车电子,无线通讯,网络通信,精密仪器,GPS卫星,网络控制器,全球GPS定位系统等领域.工程、销售、仓储和物流办事处设在台北,香港、曼彻斯特、上海、深圳、中国、韩国、慕尼黑、德国、以及世界各地的支持办事处.

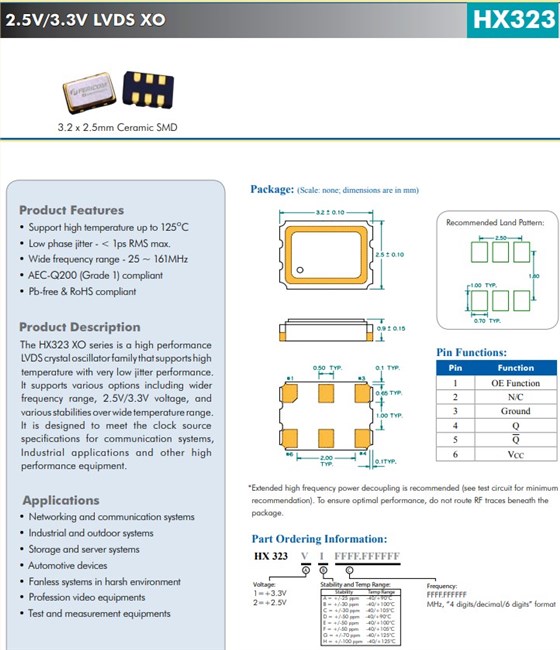

HX323 XO系列是高性能LVDS晶振系列，支持高温且抖动性能极低，HX323系列，小体积尺寸3.2x2.5mm、高温LVDS晶体振荡器，它支持各种选项，包括更宽的频率范围、2.5V/3.3V电压以及在宽温度范围内的各种稳定性。它旨在满足通信系统、工业应用和其他高性能设备的时钟源规范。

高性能LVDS晶振系列HX323,HX3127001Q,晶体振荡器,耐高温晶振,ECERA晶振

SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C

高性能LVDS晶振系列HX323,HX3127001Q,晶体振荡器,耐高温晶振,ECERA晶振

产品特点：
支持高达125℃的高温
低相位抖动 - < 1ps RMS最大值。
宽频率范围 - 25 ~ 161MHz振荡器
符合AEC-Q200（1级）标准
无铅且符合RoHS标准
应用：
网络和通信系统
工业和户外系统
存储和服务器系统
汽车设备
恶劣环境下的无风扇系统
专业视频设备
测试和测量设备

HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C

Product Parameters

Subfamily	High Temp XO
Product Series	HX
Compliance(Only Automotive supports PPAP)	Standard
Freq Range (MHz)	25 to 162 (1.8V/2.5V/3.3V)
Jitter RMS (ps)	<1
Stability (PPM)	25 to 100
Package Size (mm)	3.2 x 2.5 x 1.0
PkgType	Ceramic Seam
Output Logic	LVDS
Supply Voltage (V)	3.3, 2.5
Pads	6

高性能LVDS晶振系列HX323,HX3127001Q,晶体振荡器,耐高温晶振,ECERA晶振

产品参数：

类型高温XO
产品系列华鑫
合规性（仅汽车支持 PPAP）标准
频率范围 (MHz) 25至162 (1.8V/2.5V/3.3V)
抖动均方根 (ps) <1
稳定性 (PPM) 25PPM到100PPM
包装尺寸 3.2x2.5x1.0mmSMD晶振
包装类型陶瓷缝
输出逻辑 LVDS
电源电压 3.3V, 2.5V
垫 6脚

NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C

高性能LVDS晶振系列HX323,HX3127001Q,晶体振荡器,耐高温晶振,ECERA晶振

我们的频率控制产品(FCP)由石英晶体(XTAL)谐振器和晶体振荡器(XO)组成，以下是此工具中使用的术语的定义：
XO/CXO–晶体振荡器
SSXO–扩频晶体振荡器
TCXO–温度补偿晶体振荡器
VCTCXO–压控温度补偿晶体振荡器
VCXO–压控晶体振荡器
Xtal–石英晶体谐振器
kHz Xtal–kHz晶振
MHz Xtal（玻璃） –Xtal采用SMD封装，带玻璃密封
MHz Xtal（金属罐）—采用DIP（通孔）封装的 Xtal
MHz Xtal (Seam)–Xtal采用SMD封装，带接缝密封

NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX31F6203Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6203Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6203Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6201Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6201Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6201Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX52I0501Z	Diodes Incorporated	SaRonix-eCera™ UX	180.55MHz	±50ppm	-40°C ~ 85°C
UX52I0501Z	Diodes Incorporated	SaRonix-eCera™ UX	180.55MHz	±50ppm	-40°C ~ 85°C
UX52I0501Z	Diodes Incorporated	SaRonix-eCera™ UX	180.55MHz	±50ppm	-40°C ~ 85°C
NX7021D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7021D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7021D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
KD3270037	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C

高性能LVDS晶振系列HX323,HX3127001Q,晶体振荡器,耐高温晶振,ECERA晶振

我们的晶体振荡器(CXO)提供高价值、卓越的性能和功能以及卓越的品质和服务。我们为批量生产提供快速周转样品、响应式技术支持和快速交货时间。
提供多种类型和特性：
1) 尺寸从7x5mm到2.0x1.6mm，
2) 传统CXO的温度稳定性为±5PPM，
3) CMOS/TTL、LVPECL、LVDS、HCSL差分晶振的输出逻辑格式，和慢性粒细胞白血病。
我们的CXO被领先制造商用于各种要求苛刻的应用，从消费类到工业、汽车(AEC-Q200/AEC-Q104)、网络、存储、计算、电信等。
