TSX-3225爱普生无源晶振X1E000021011916,433M无线模块晶振与2.4g无线模块晶振

433M无线模块晶振与2.4g无线模块晶振TSX-3225爱普生无源晶振X1E000021011916

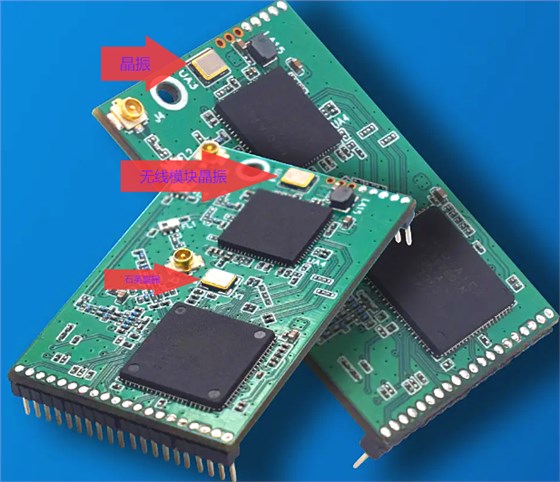

目前是433M无线模块晶振和2.4g无线模块晶振因为频率范围都属于国内免许可的ISM开放频段,使用这两种频段无需申请授权,因此在各行各业得到广泛应用,许多客户对这两个频段的模块晶振产品有疑问,不知道用什么晶振比较好,下面针对客户关心的问题进行说明,并将这两种产品的特性进行对比.

QQ截图20220924175354

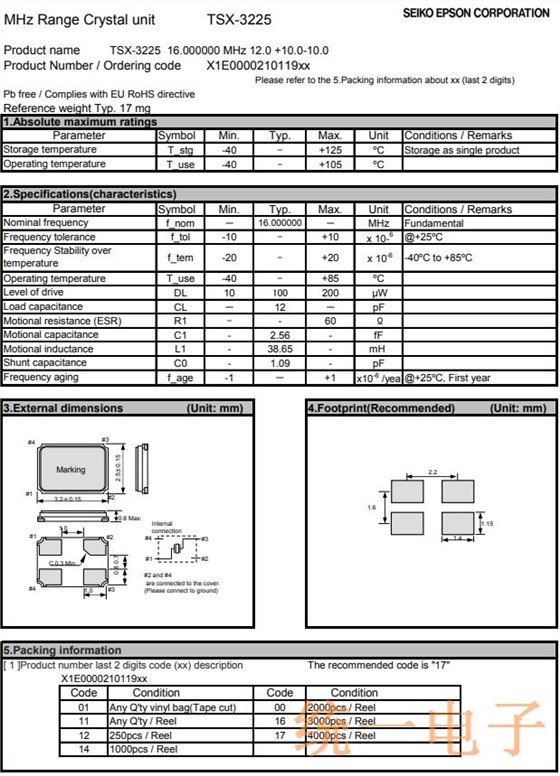

TSX-3225爱普生无源晶振X1E000021011916,433M无线模块晶振与2.4g无线模块晶振

爱普生晶振编码	长x宽x高	型号	石英晶振频率	负载	频率25°C	频率公差	工作温度范围	ESR最大
X1E000021001916	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	9pF	+/-10ppm	+/-9ppm	-20to+75°C	≤60Ω
X1E000021004716	3.2x2.5x0.6mm	TSX-3225	20.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+105°C	≤60Ω
X1E000021004816	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+105°C	≤40Ω
X1E000021011116	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C	≤60Ω
X1E000021011216	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C	≤60Ω
X1E000021011316	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C	≤60Ω
X1E000021011416	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C	≤60Ω
X1E000021011516	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C	≤60Ω
X1E000021011616	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C	≤60Ω
X1E000021011716	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C	≤60Ω
X1E000021011816	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C	≤60Ω
X1E000021011916	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C	≤60Ω
X1E000021012016	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	16pF	+/-10ppm	+/-20ppm	-40to+85°C	≤60Ω
X1E000021012116	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021012216	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021012316	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021012416	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021012516	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021012616	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021012716	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021012816	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021012916	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021013016	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	16pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021013116	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021013216	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021013316	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021013416	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021013516	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021013616	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021013716	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021013816	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021014016	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	16pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021014116	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021014216	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021014316	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021014416	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021014516	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021014616	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021014716	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021014816	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021014916	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021015016	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	16pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021015116	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021015216	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021015316	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021015416	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021015516	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C	≤40Ω
X1E000021015616	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω
X1E000021015716	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C	≤40Ω

可以看出433M无线模块晶振的接收灵敏度高,绕射能力比较强,适用于智能家居、智能抄表等领域中,它具有网络结构简单布局容易,上电时间段的优势.而2.4GHz的应用点是基于其高速的传输速率而发展起来的组网协议.2.4g无线模块晶振具有较好的自适应功能和功耗低的优点,常应用于无线遥控器,玩具控制,轮胎气压监测,健康监测、标签读写器等.433M无线模块晶振和2.4g无线模块晶振如何选择晶振?如果是网络拓扑及功能简单,一主多从但布网环境复杂,成本限制建议优先考滤433MHz产品;如果是网络拓扑比较复杂、功能繁多、网络健壮性强、低功耗要求、开发简单、2.4GHz带组网功能的产品也是不错的.
