HCMOS振荡器ECS-2520S18-260-FN-TR非常适合无线和物联网应用

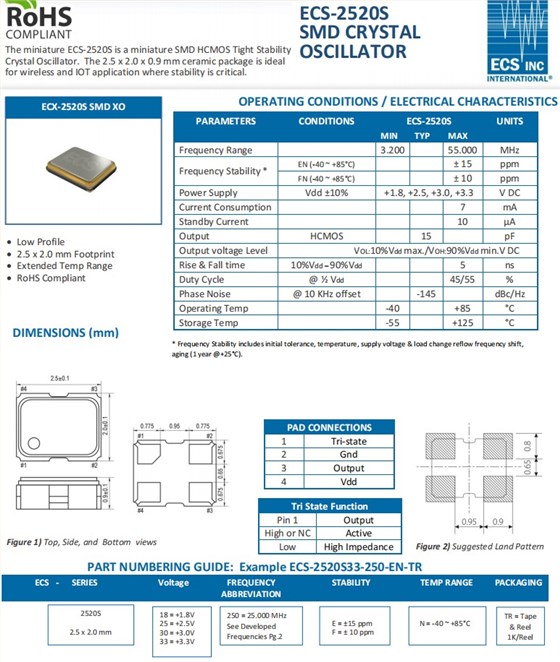

ECS Inc. International的表面贴装(SMD)振荡器提供业界领先的各种性能选项和配置，包括HCMOS、LVDS和LVPECL输出。这种定时解决方案采用硅混合时钟振荡器和石英晶体振荡器，可以产生超精确的电子信号频率。此外，ECS Inc .的混合时钟振荡器采用最先进的技术与精密石英晶体谐振器相结合，以创建一个具有高可靠性的经济高效的解决方案。ECS-2520S是一款超小型高稳定性HCMOS表面贴装振荡器，小体积尺寸采用2.5mmx2.0mmx0.9mm陶瓷封装。该电子元件符合RoHS标准，工作温度范围为-40°C~85°C的标准工业温度范围，ECS-2520S提供10ppm和15ppm的严格稳定性以及3.2MHz~55MHz的频率范围。这款HCMOS振荡器ECS-2520S18-260-FN-TR非常适合无线和物联网应用

原厂代码	晶振生产厂家	型号	频率	工作温度
ECS-2520S25-240-FN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-500-FN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-100-FN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S33-400-FN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-500-FN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-320-FN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S25-250-FN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S33-240-FN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S33-160-FN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S33-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S33-250-FN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S33-050-EN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S33-100-EN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S33-120-EN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S33-160-EN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S33-200-EN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-240-EN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S33-250-EN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S33-260-EN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-320-EN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S33-400-EN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S33-440-EN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S33-500-EN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S30-050-EN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S30-100-EN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S30-120-EN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S30-160-EN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S30-200-EN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S30-240-EN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S30-250-EN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S30-260-EN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S30-320-EN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S30-400-EN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S30-440-EN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S30-500-EN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-050-EN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S25-100-EN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S25-120-EN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S25-160-EN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S25-200-EN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S25-240-EN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-250-EN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S25-260-EN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S25-320-EN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S25-400-EN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S25-440-EN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S25-500-EN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-050-EN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S18-100-EN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-120-EN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-160-EN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-200-EN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S18-240-EN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-250-EN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-260-EN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-320-EN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-400-EN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-440-EN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S18-500-EN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S33-440-FN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S30-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S30-100-FN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S30-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S30-160-FN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S30-200-FN-TR	2520晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S30-240-FN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S30-250-FN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S30-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S30-320-FN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S30-400-FN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S30-440-FN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S30-500-FN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S25-100-FN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S25-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S25-160-FN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S25-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S25-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S25-320-FN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S25-400-FN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S25-440-FN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S18-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S18-440-FN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
