24.576MHz,SXTHM217AA484-24.576M,SXTHM2,Suntsu无线应用晶振

频率：24.576MHz

尺寸：13.3x4.5mm

24.576MHz,SXTHM217AA484-24.576M,SXTHM2,Suntsu无线应用晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SXTHM2系列，产品编码为：SXTHM217AA484-24.576M无源晶振，频率为：24.576MHz，频率稳定性：±50ppm，频率容差：±50ppm，负载电容：17pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：13.3x4.5mm，两脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，SMD石英晶体，SMD晶振。具有小体积晶振，轻薄型晶振，高性能晶振，高品质，耐热及耐环境等特点。应用于：微处理器晶振，计算机晶振，调制解调器晶振，无线应用程序。

订购热线：0755-2783-7683

20180421171456_6296统一

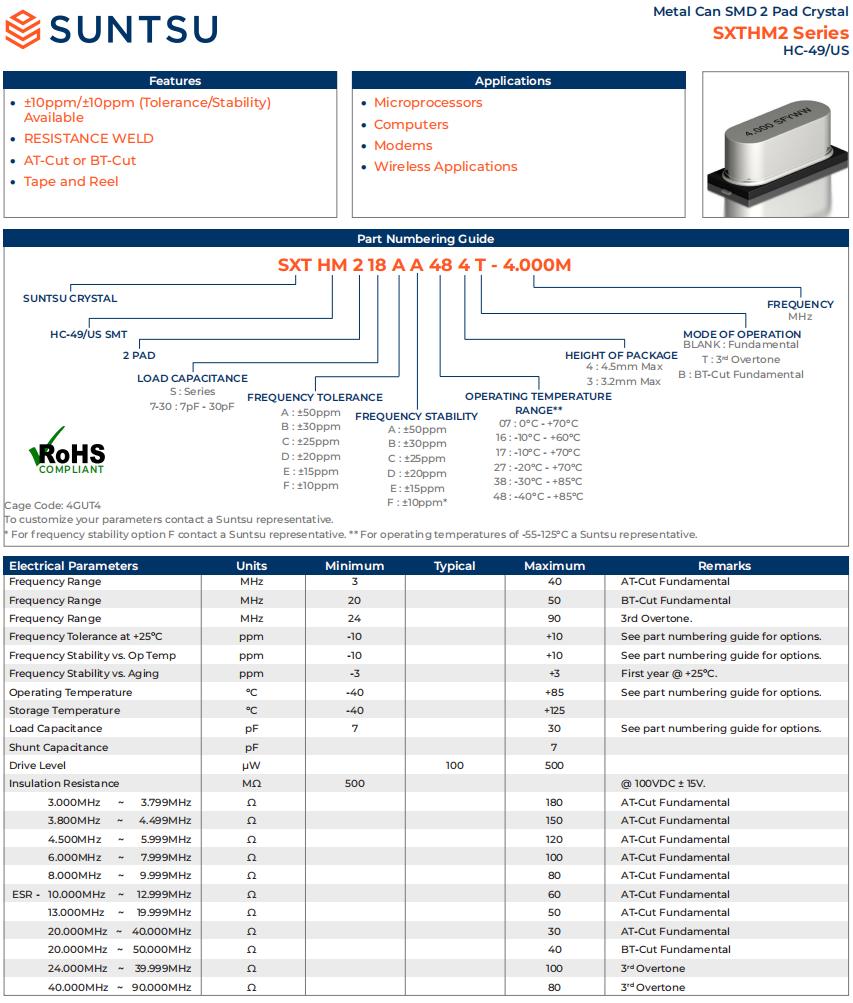

24.576MHz,SXTHM217AA484-24.576M,SXTHM2,Suntsu无线应用晶振,参数表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	MHz	24.576			AT-Cut Fundamental
Frequency Range	MHz	20		50	BT-Cut Fundamental
Frequency Range	MHz	24		90	3rd Overtone.
Frequency Tolerance at +25ºC	ppm	-10		+10	See part numbering guide for options.
Frequency Stability vs. Op Temp	ppm	-10		+10	See part numbering guide for options.
Frequency Stability vs. Aging	ppm	-3		+3	First year @ +25ºC.
Operating Temperature	°C	-40		+85	See part numbering guide for options.
Storage Temperature	°C	-40		+125
Load Capacitance	pF	7		30	See part numbering guide for options.
Shunt Capacitance	pF			7
Drive Level	µW		100	500
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
3.000MHz~3.799MHz	Ω			180	AT-Cut Fundamental
3.800MHz~4.499MHz	Ω			150	AT-Cut Fundamental
4.500MHz~5.999MHz	Ω			120	AT-Cut Fundamental
6.000MHz~7.999MHz	Ω			100	AT-Cut Fundamental
8.000MHz~9.999MHz	Ω			80	AT-Cut Fundamental
ESR-10.000MHz~12.999MHz	Ω			60	AT-Cut Fundamental
13.000MHz~19.999MHz	Ω			50	AT-Cut Fundamental
20.000MHz ~40.000MHz	Ω			30	AT-Cut Fundamental
20.000MHz~50.000MHz	Ω			40	BT-Cut Fundamental
24.000MHz~39.999MHz	Ω			100	3rd Overtone
40.000MHz~90.000MHz	Ω			80	3rd Overtone

20181130160053_3983统一

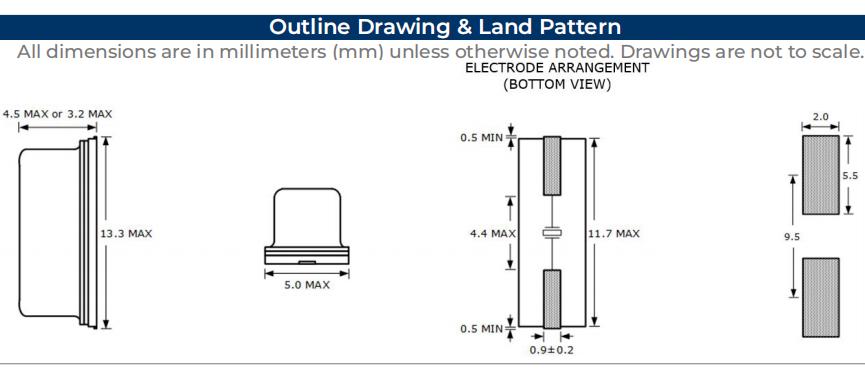

24.576MHz,SXTHM217AA484-24.576M,SXTHM2,Suntsu无线应用晶振, 尺寸图

晶振资料	型号	频率	负载	工作温度	频率稳定度	精度
SXTHM216AA274-24.576M	SXTHM2	24.576M	16pF	-20°C - +70°C	±50ppm	±50ppm
SXTHM216AA384-24.576M	SXTHM2	24.576M	16pF	-30°C - +85°C	±50ppm	±50ppm
SXTHM216AA484-24.576M	SXTHM2	24.576M	16pF	-40°C - +85°C	±50ppm	±50ppm
SXTHM217AA274-24.576M	SXTHM2	24.576M	17pF	-20°C - +70°C	±50ppm	±50ppm
SXTHM217AA384-24.576M	SXTHM2	24.576M	17pF	-30°C - +85°C	±50ppm	±50ppm
SXTHM217AA484-24.576M	SXTHM2	24.576M	17pF	-40°C - +85°C	±50ppm	±50ppm
SXTHM217BA274-24.576M	SXTHM2	24.576M	17pF	-20°C - +70°C	±30ppm	±50ppm
SXTHM217BA384-24.576M	SXTHM2	24.576M	17pF	-30°C - +85°C	±30ppm	±50ppm
SXTHM217BA484-24.576M	SXTHM2	24.576M	17pF	-40°C - +85°C	±30ppm	±50ppm
SXTHM217BB274-24.576M	SXTHM2	24.576M	17pF	-20°C - +70°C	±30ppm	±30ppm
SXTHM217BB384-24.576M	SXTHM2	24.576M	17pF	-30°C - +85°C	±30ppm	±30ppm
SXTHM217BB484-24.576M	SXTHM2	24.576M	17pF	-40°C - +85°C	±30ppm	±30ppm
SXTHM218AA274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±50ppm	±50ppm
SXTHM218AA384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±50ppm	±50ppm
SXTHM218AA484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±50ppm	±50ppm
SXTHM218BA274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±30ppm	±50ppm
SXTHM218BA384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±30ppm	±50ppm
SXTHM218BA484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±30ppm	±50ppm
SXTHM218BB274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±30ppm	±30ppm
SXTHM218BB384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±30ppm	±30ppm
SXTHM218BB484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±30ppm	±30ppm
SXTHM218CA274-24.576M	石英晶体	24.576M	18pF	-20°C - +70°C	±25ppm	±50ppm
SXTHM218CA384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±25ppm	±50ppm
SXTHM218CA484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±25ppm	±50ppm
SXTHM218CB274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±25ppm	±30ppm
SXTHM218CB384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±25ppm	±30ppm
SXTHM218CB484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±25ppm	±30ppm
SXTHM218CC274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±25ppm	±25ppm
SXTHM218CC384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±25ppm	±25ppm
SXTHM218CC484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±25ppm	±25ppm
SXTHM218DA274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±20ppm	±50ppm
SXTHM218DA384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±20ppm	±50ppm
SXTHM218DA484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±20ppm	±50ppm
SXTHM218DB274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±20ppm	±30ppm
SXTHM218DB384-24.576M	SXTHM2	24.576M	18pF	-30°C - +85°C	±20ppm	±30ppm
SXTHM218DB484-24.576M	SXTHM2	24.576M	18pF	-40°C - +85°C	±20ppm	±30ppm
SXTHM218DC274-24.576M	SXTHM2	24.576M	18pF	-20°C - +70°C	±20ppm	±25ppm
