SXT14418FB48-7.3728M,7.3728M,SXT144,Suntsu测量仪器晶振

频率：7.3728MHz

尺寸：12.5x4.6mm

SXT14418FB48-7.3728M,7.3728M,SXT144,Suntsu测量仪器晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SXT144系列，编码为：SXT14418FB48-7.3728M石英晶振，频率为：7.3728MHz，负载电容：18pF，频率稳定性：±30ppm，频率容差：±10ppm，工作温度范围：-40℃至+48℃，小体积晶振尺寸：12.5x4.6mm陶瓷SMD封装，四脚贴片晶振，无源晶振，陶瓷晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅晶振。具有小体积晶振，轻薄型晶振，高性能晶振，高品质，耐热及耐环境等特点。应用于：测量仪器晶振，汽车电子晶振，无线应用程序。

订购热线：0755-2783-7683

20180421171456_6296统一

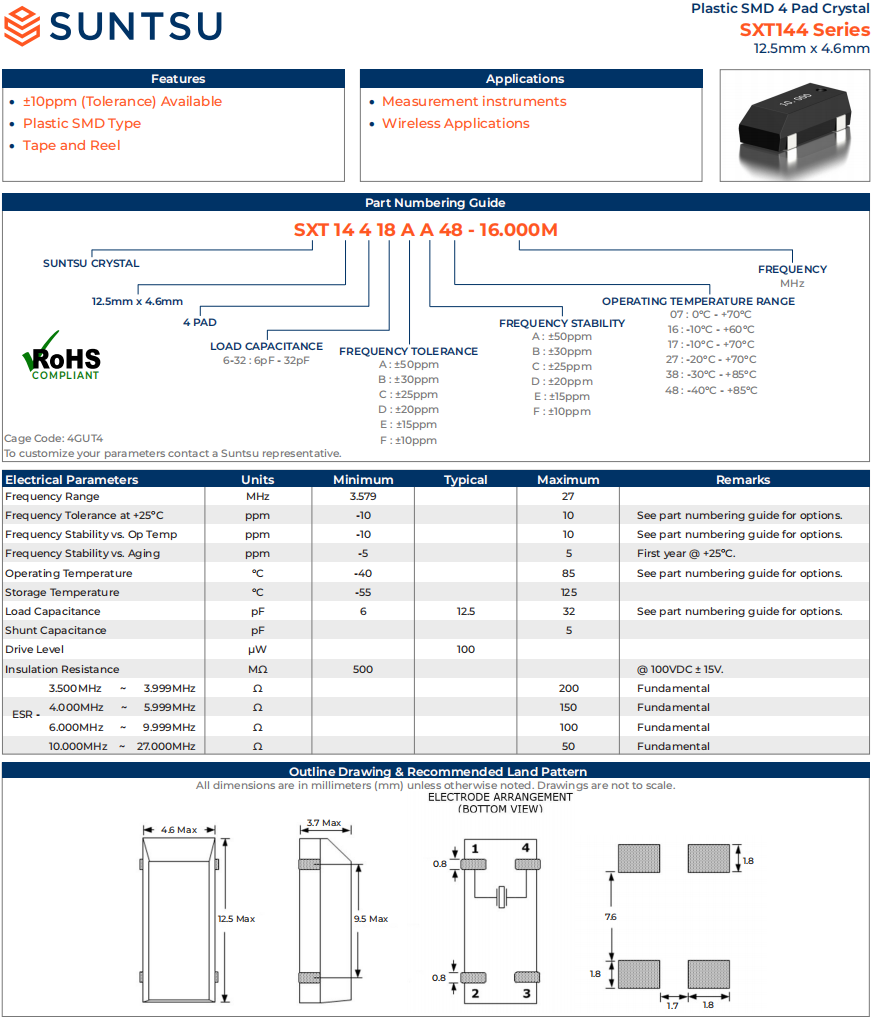

SXT14418FB48-7.3728M,7.3728M,SXT144,Suntsu测量仪器晶振,参数表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	MHz	7.3728
Frequency Tolerance at +25ºC	ppm	-10		10	See part numbering guide for options.
Frequency Stability vs. Op Temp	ppm	-10		10	See part numbering guide for options.
Frequency Stability vs. Aging	ppm	-5		5	First year @ +25ºC.
Operating Temperature	°C	-40		85	See part numbering guide for options.
Storage Temperature	°C	-55		125
Load Capacitance	pF	6	12.5	32	See part numbering guide for options.
Shunt Capacitance	pF			5
Drive Level	µW		100
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
3.500MHz~3.999MHz	Ω			200	Fundamental
ESR -4.000MHz~5.999MHz	Ω			150	Fundamental
6.000MHz~9.999MHz	Ω			100	Fundamental
10.000MHz~27.000MHz	Ω			50	Fundamental

20181130160053_3983统一

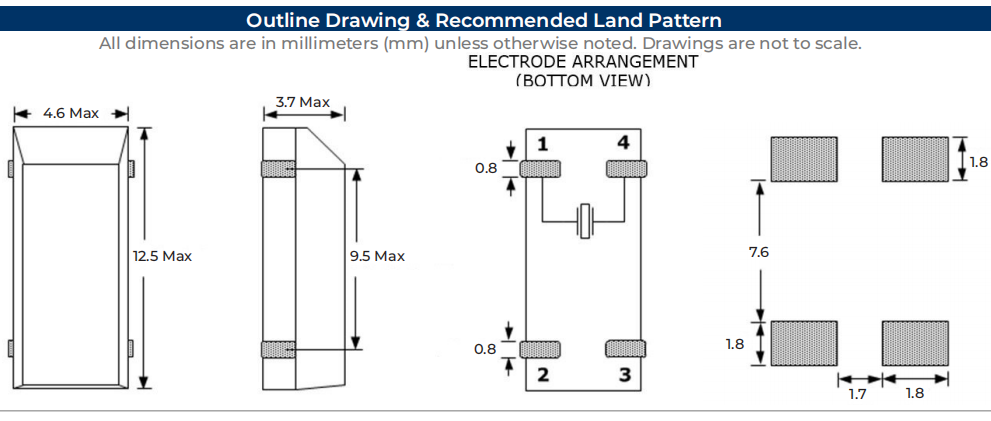

SXT14418FB48-7.3728M,7.3728M,SXT144,Suntsu测量仪器晶振, 尺寸图

晶振编码	型号	频率	负载	工作温度	频率稳定度	精度
SXT14418FB48-10.000M	SXT144	10.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-11.0592M	SXT144	11.0592M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-12.000M	SXT144	12.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-14.31818M	SXT144	14.31818M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-14.7456M	SXT144	14.7456M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-16.000M	SXT144	16.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-20.000M	SXT144	20.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-24.000M	SXT144	24.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-25.000M	SXT144	25.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-3.579545M	SXT144	3.579545M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-3.6864M	SXT144	3.6864M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-4.000M	SXT144	4.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-4.9152M	SXT144	4.9152M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-6.000M	SXT144	6.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-7.3728M	SXT144	7.3728M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14418FB48-8.000M	SXT144	8.000M	18pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-10.000M	SXT144	10.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-11.0592M	进口晶振	11.0592M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-12.000M	SXT144	12.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-14.31818M	SXT144	14.31818M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-14.7456M	SXT144	14.7456M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-16.000M	SXT144	16.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-20.000M	SXT144	20.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-24.000M	SXT144	24.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-25.000M	SXT144	25.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-3.6864M	SXT144	3.6864M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-4.000M	SXT144	4.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-4.9152M	SXT144	4.9152M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-7.3728M	SXT144	7.3728M	20pF	-40°C - +85°C	±10ppm	±30ppm
SXT14420FB48-8.000M	SXT144	8.000M	20pF	-40°C - +85°C	±10ppm	±30ppm
