LVDS晶体振荡器,XLL536016.000000X,IDT无线路由器6G晶振
频率：16.000MHz
尺寸：5.0x3.2mm
LVDS晶体振荡器,XLL536016.000000X,IDT无线路由器6G晶振，美国进口晶振，IDT艾迪悌晶振XLL系列，编码为：XLL536016.000000X，频率为：16.000MHz，小体积尺寸5.0x3.2mm，六脚贴片晶振，有源晶振，石英晶体振荡器。XLL是一个LVDS晶体振荡器，具有0.89ps的典型相位抖动，超过12 kHz到20 MHz的带宽。IDT XLL系列晶体振荡器的频率范围从0.750MHz到1350MHz，采用了一系列专有的asic，重点关注降噪技术。三阶德尔塔-西格玛调制器将噪声降低到与传统大块石英和SAW振荡器相当的水平。XLL石英晶振交付周期短、成本低、噪音低、频率范围宽、环境性能优异，是传统技术的绝佳选择。XLL的稳定性高达±20ppm，速度极快，提供标准频率和自定义频率。广泛应用于：通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA，SAS，光纤通信，10G以太网及各种频率控制设备上。
LVDS晶体振荡器,XLL536016.000000X,IDT无线路由器6G晶振 参数表
Parameter
Symbol
Condition
Min
Typ
Max
Units
Output Frequency Range
FOUTR
16.000
MHz
Frequency Stability
Temperature = -20°C to +70°C
±20
±100
ppm
Temperature = -40°C to +85°C
±25
±100
ppm
Aging (1st year)
Ta = 25°C
3
Aging (10 years)
Ta = 25°C
10
Output Load
Differential
100
Ohms
Start-up Time
TST
Output valid time after VDD meets
minimum specified level
10
ms
Output Rise Time
20% to 80% VPP
400
ps
Output Fall Time
80% to 20% VPP
400
ps
Output Clock Duty Cycle
TDTCY
50%VP-P
45
55
%
Output Enable/ Disable Time
TOE
100
ns
Period Jitter, RMS
J PER
Frequency = 156.25MHz
3.0
ps
Random Jitter
RJ
Frequency = 156.25MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications)
1.3
ps
Deterministic Jitter
DJ
5.8
ps
Total Jitter
TJ
23.6
ps
Phase Jitter (12kHz – 20MHz)
φJITTER
Common Frequencies
0.89
ps

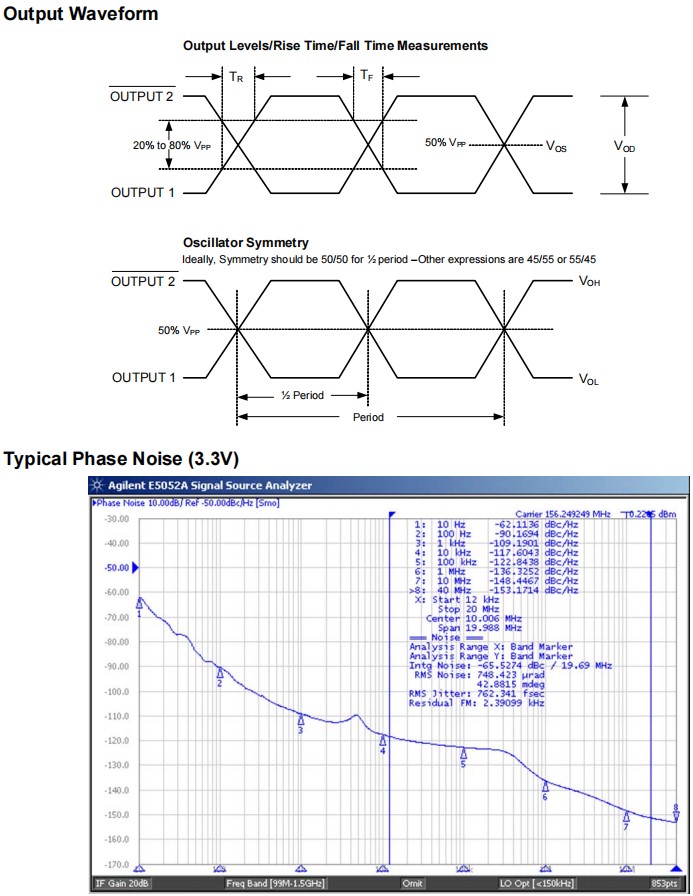

Phase Noise Performance
Frequency = 156.25MHz
φNOISE
100Hz of Carrier
-80
dBc/Hz
1kHz of Carrier
-115
dBc/Hz
10kHz of Carrier
-118
dBc/Hz
100kHz of Carrier
-124
dBc/Hz
1MHz of Carrier
-142
dBc/Hz
10MHz of Carrier
-151
dBc/Hz
Output Frequency (Common)
F OUT
100MHz, 106.25MHz, 1258MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz,212.5MHz, 250MHz, 300MHz, 312.5MHZ, 400MHz
(Contact IDT for additional frequencies)

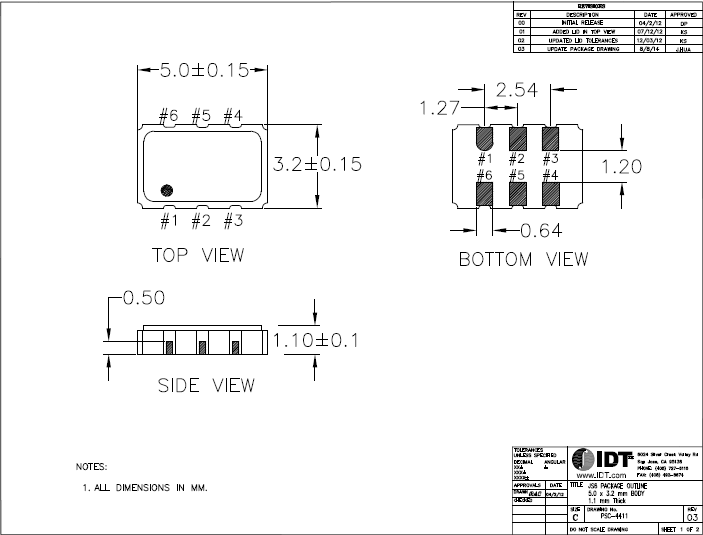

LVDS晶体振荡器,XLL536016.000000X,IDT无线路由器6G晶振 尺寸图
LVDS晶体振荡器,XLL536016.000000X,IDT无线路由器6G晶振

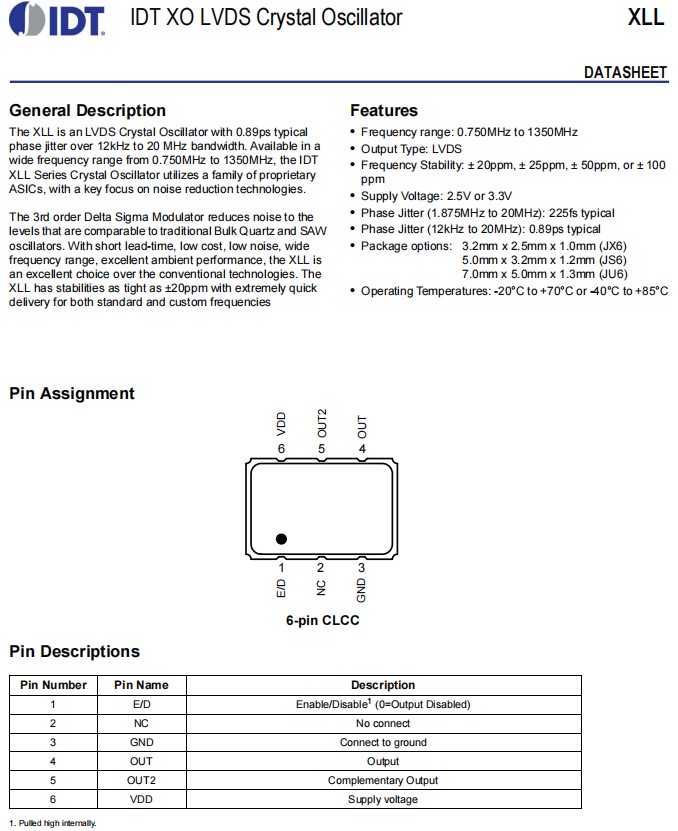

产品特点：
频率范围：0.750MHz至1350MHz
输出类型：LVDS输出有源晶振
频率稳定性：±20ppm、±25ppm、±50ppm或±100ppm
电源电压：2.5V或3.3V
相位抖动（1.875MHz至20MHz）：典型225fs
相位抖动（12kHz至20MHz）：典型值为0.89ps
包装选项：3.2mm x 2.5mm x 1.0mm（JX6）
5.0毫米x 3.2毫米x 1.2毫米（JS6）
7.0毫米x 5.0毫米x 1.3毫米（JU6）
工作温度：-20°C至+70°C或-40°C至+85°C
| 原厂代码 | 品牌 | 输出 | 电压 | 参数 | 包装/封装 |
| XLL526125.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL536125.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL52V125.000000X | IDT晶振 | LVDS | 2.5V | OSC VCXO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL536150.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 150.000MHZ SMD | 6-SMD, No Lead |
| XLL536016.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 16.000MHZ SMD | 6-SMD, No Lead |
| XLL528200.000000X | IDT晶振 | LVDS晶振 | 2.5V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL52V148.500000X | IDT晶振 | LVDS | 2.5V | OSC VCXO 148.5MHZ SMD | 6-SMD, No Lead |
| XLL52V148.351648X | IDT晶振 | LVDS | 2.5V | OSC VCXO 148.351648MHZ SMD | 6-SMD, No Lead |
| XLL52V074.250000X | IDT晶振 | LVDS | 2.5V | OSC VCXO 74.25MHZ SMD | 6-SMD, No Lead |
| XLL53V045.000000X | IDT晶振 | LVDS | 3.3V | OSC VCXO 45.000MHZ SMD | 6-SMD, No Lead |
| XLL520085.000000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 85.000MHZ SMD | 6-SMD, No Lead |
| XLL525156.250000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL525148.500000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 148.5MHZ SMD | 6-SMD, No Lead |
| XLL530074.250000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 74.25MHZ SMD | 6-SMD, No Lead |
| XLL535180.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 180.000MHZ SMD | 6-SMD, No Lead |
| XLL52V074.175824X | IDT晶振 | LVDS | 2.5V | OSC VCXO 74.175824MHZ SMD | 6-SMD, No Lead |
| XLL52V644.531250X | IDT晶振 | LVDS | 2.5V | OSC VCXO 644.53125MHZ SMD | 6-SMD, No Lead |
| XLL52V160.000000I | IDT晶振 | LVDS | 2.5V | OSC VCXO 160.000MHZ SMD | 6-SMD, No Lead |
| XLL52V025.000000I | IDT晶振 | LVDS | 2.5V | OSC VCXO 25.000MHZ SMD | 6-SMD, No Lead |
| XLL525200.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL525100.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL528125.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL530300.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 300.000MHZ SMD | 6-SMD, No Lead |
| XLL530156.250000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL535A90.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.09GHZ SMD | 6-SMD, No Lead |
| XLL535210.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 210.000MHZ SMD | 6-SMD, No Lead |
| XLL535160.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 160.000MHZ SMD | 6-SMD, No Lead |
| XLL535156.250000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL535020.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 20.000MHZ SMD | 6-SMD, No Lead |
| XLL536156.250000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL536100.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL536050.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 50.000MHZ SMD | 6-SMD, No Lead |
| XLL538156.250000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL538100.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL538050.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 50.000MHZ SMD | 6-SMD, No Lead |
| XLL538001.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.000MHZ SMD | 6-SMD, No Lead |
| XLL526148.500000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 148.5MHZ SMD | 6-SMD, No Lead |
| XLL526100.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL526050.000000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 50.000MHZ SMD | 6-SMD, No Lead |
| XLL53VC00.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR VCXO 1.2GHZ SMD | 6-SMD, No Lead |
| XLL526156.250000I | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL526025.000000I | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 25.000MHZ SMD | 6-SMD, No Lead |
| XLL530C80.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.28GHZ SMD | 6-SMD, No Lead |
| XLL535400.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 400.000MHZ SMD | 6-SMD, No Lead |
| XLL535333.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 333.000MHZ SMD | 6-SMD, No Lead |
| XLL535250.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 250.000MHZ SMD | 6-SMD, 贴片晶振 |
| XLL536400.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 400.000MHZ SMD | 6-SMD, No Lead |
| XLL536200.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL536090.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 90.000MHZ SMD | 6-SMD, No Lead |
| XLL536050.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 50.000MHZ SMD | 6-SMD, No Lead |
| XLL536025.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 25.000MHZ SMD | 6-SMD, No Lead |
| XLL536010.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 10.000MHZ SMD | 6-SMD, No Lead |
| XLL538C00.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.2GHZ SMD | 6-SMD, No Lead |
| XLL538A00.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.000GHZ SMD | 6-SMD, No Lead |
| XLL538312.500000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 312.5MHZ SMD | 6-SMD, No Lead |
| XLL526155.520000I | IDT晶振 | LVDS | 2.5V | OSC XO 155.520MHZ SMD | 6-SMD, No Lead |
| XLL526400.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 400.000MHZ SMD | 6-SMD, No Lead |
| XLL536A00.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.000GHZ SMD | 6-SMD, No Lead |
| XLL536500.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 500.000MHZ SMD | 6-SMD, No Lead |
| XLL536400.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 400.000MHZ SMD | 6-SMD, No Lead |
| XLL536250.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 250.000MHZ SMD | 6-SMD, No Lead |
| XLL536200.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL53VA00.000000X | IDT晶振 | LVDS | 3.3V | OSC VCXO 1.000GHZ SMD | 6-SMD, No Lead |
| XLL53V877.714285X | IDT晶振 | LVDS | 3.3V | OSC VCXO 877.714285MHZ SMD | 6-SMD, No Lead |
| XLL53V500.000000X | IDT晶振 | LVDS | 3.3V | OSC VCXO 500.000MHZ SMD | 6-SMD, No Lead |
| XLL53VA00.000000I | IDT晶振 | LVDS | 3.3V | OSC VCXO 1.000GHZ SMD | 6-SMD, No Lead |
| XLL53V622.080000I | IDT晶振 | LVDS | 3.3V | OSC VCXO 622.08MHZ SMD | 6-SMD, No Lead |
| XLL53V250.000000I | IDT晶振 | LVDS | 3.3V | OSC VCXO 250.000MHZ SMD | 6-SMD, No Lead |
| XLL525200.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL525164.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 164.000MHZ SMD | 6-SMD, No Lead |
| XLL525125.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL525125.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL526200.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL526125.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL526060.000000I | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 60.000MHZ SMD | 6-SMD, No Lead |
| XLL528212.500000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 212.5MHZ SMD | 6-SMD, No Lead |
| XLL528025.000000X | IDT晶振 | LVDS | 2.5V | OSCILLATOR XO 25.000MHZ SMD | 6-SMD, No Lead |
| XLL530148.500000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 148.5MHZ SMD | 6-SMD, No Lead |
| XLL530025.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 25.000MHZ SMD | 6-SMD, No Lead |
| XLL535250.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 250.000MHZ SMD | 6-SMD, No Lead |
| XLL535125.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL535100.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL535A00.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 1.000GHZ SMD | 6-SMD, No Lead |
| XLL535622.080000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 622.08MHZ SMD | 6-SMD, No Lead |
| XLL535312.500000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 312.5MHZ SMD | 6-SMD, No Lead |
| XLL535200.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL535150.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 150.000MHZ SMD | 6-SMD, No Lead |
| XLL535125.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 125.000MHZ SMD | 6-SMD, No Lead |
| XLL535106.250000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 106.25MHZ SMD | 6-SMD, No Lead |
| XLL535100.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL535025.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 25.000MHZ SMD | 6-SMD, No Lead |
| XLL536250.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 250.000MHZ SMD | 6-SMD, No Lead |
| XLL536075.000000X | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 75.000MHZ SMD | 6-SMD, No Lead |
| XLL536080.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 80.000MHZ SMD | 6-SMD, No Lead |
| XLL536064.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 64.000MHZ SMD | 6-SMD, No Lead |
| XLL536037.500000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 37.5MHZ SMD | 6-SMD, No Lead |
| XLL538300.000000X | IDT晶振 | LVDS | 3.3V | OSC XO 300.000MHZ SMD | 6-SMD, No Lead |
| XLL526150.000000X | IDT晶振 | LVDS | 2.5V | OSC XO 150.000MHZ SMD | 6-SMD, No Lead |
| XLL536062.500000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 62.5MHZ SMD | 6-SMD, No Lead |
| XLL536156.250000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 156.25MHZ SMD | 6-SMD, No Lead |
| XLL536160.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 160.000MHZ SMD | 6-SMD, No Lead |
| XLL526100.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL536100.000000I | IDT晶振 | LVDS | 3.3V | OSC XO 100.000MHZ SMD | 6-SMD, No Lead |
| XLL536148.500000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 148.5MHZ SMD | 6-SMD, No Lead |
| XLL526200.000000I | IDT晶振 | LVDS | 2.5V | OSC XO 200.000MHZ SMD | 6-SMD, No Lead |
| XLL530012.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 12.000MHZ SMD | 6-SMD, No Lead |
| XLL535040.000000I | IDT晶振 | LVDS | 3.3V | OSCILLATOR XO 40.000MHZ SMD | 6-SMD, No Lead |
