EPSON差分晶振,X1G005331000100,SG7050VEN六脚贴片晶振,6G无线应用
频率：100.000MHz
尺寸：7.0x5.0mm
EPSON差分晶振,X1G005331000100,SG7050VEN六脚贴片晶振,6G无线应用，日本进口晶振，爱普生晶振SG7050VEN，编码为：X1G005331000100，频率为：100.000MHz，是一款LVDS差分晶体振荡器，小体积晶振尺寸7.0x5.0mm，六脚贴片晶振，有源晶振，石英晶体振荡器，电源电压2.5V，能够轻易识别网络信号以及精确的处理双极信号，该产品具有超小型，轻薄型，低抖动，低电源电压，低功耗，低损耗，低耗能，低相位噪声等特点。贴片晶振，应用于：网络设备（路由器、交换机、光模块等），数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC，光纤通信，10G以太网及各种频率控制设备上。

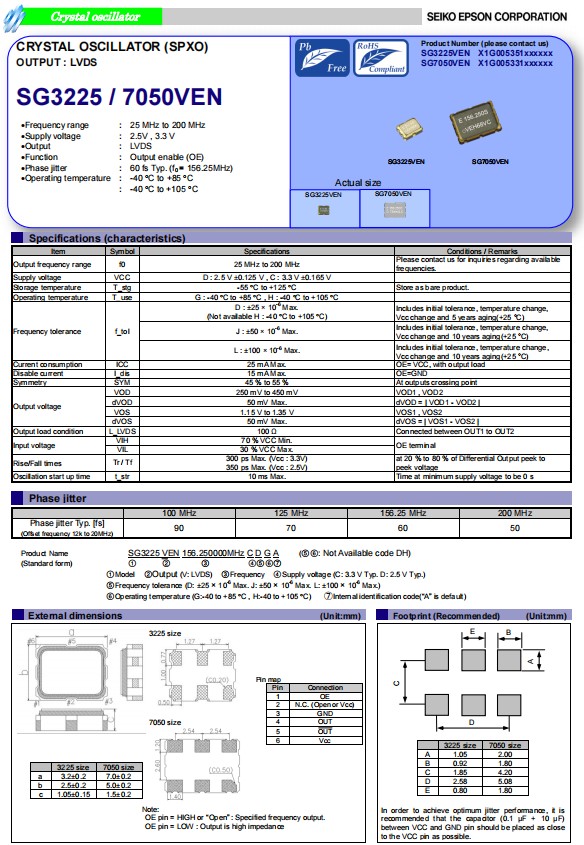

EPSON差分晶振,X1G005331000100,SG7050VEN六脚贴片晶振,6G无线应用 参数表
Item
Symbol
SG7050VEN
Conditions / Remarks
Output frequency range
f0
100.000 MHz
Please contact us for inquiries regarding available frequencies.
Supply voltage
VCC
D : 2.5 V ±0.125 V , C : 3.3 V ±0.165 V
Storage temperature
T_stg
-55 °C to +125 °C
Store as bare product.
Operating temperature
T_use
G : -40 °C to +85 °C , H : -40 °C to +105 °C
Frequency tolerance
f_tol
D : ±25 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 5 years aging(+25 °C)
(Not available H : -40 °C to +105 °C)
J : ±50 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
L : ±100 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
Current consumption
ICC
25 mA Max.
OE= VCC, with output load
Disable current
I_dis
15 mA Max.
OE=GND
Symmetry
SYM
45 % to 55 %
At outputs crossing point
Output voltage
VOD
250 mV to 450 mV
VOD1 , VOD2
dVOD
50 mV Max.
dVOD = | VOD1 - VOD2 |
VOS
1.15 V to 1.35 V
VOS1 , VOS2
dVOS
50 mV Max.
dVOS = | VOS1 - VOS2 |
Output load condition
L_LVDS
100 Ω
Connected between OUT1 to OUT2
Input voltage
VIH
70 % VCC Min.
OE terminal
VIL
30 % VCC Max.
Rise/Fall times
Tr / Tf
300 ps Max. (Vcc : 3.3V) 350 ps Max. (Vcc : 2.5V)
at 20 % to 80 % of Differential Output peek to peek voltage
Oscillation start up time
t_str
10 ms Max.
Time at minimum supply voltage to be 0 s

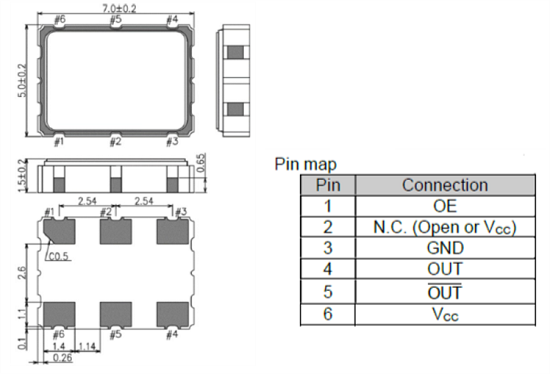

EPSON差分晶振,X1G005331000100,SG7050VEN六脚贴片晶振,6G无线应用 尺寸图
EPSON差分晶振,X1G005331000100,SG7050VEN六脚贴片晶振,6G无线应用
差分晶振优势：
差分晶振具有低电平,低抖动，低功耗等特性。差分晶振作为目前行业中高要求、高技术石英晶体振荡器，具有相位低、损耗低的特点。因此也被称之为"低抖动振荡器，低抖动石英晶振,低相位晶振,低损耗晶振”。
① 能够很容易地识别小信号。
② 对外部电磁干扰(EMI)是高度免疫的。
③ 能够从容精确地处理'双极'信号。
| 晶振编码 |
   型号
|
   频率
|
   尺寸
|
   输出波
|
   电源电压
|
   工作温度
|
| X1G005331000100 | SG7050VEN | 100.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000200 | SG7050VEN | 125.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000300 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000500 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000600 | SG7050VEN | 27.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000700 | SG7050VEN | 50.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000800 | SG7050VEN | 50.001000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000900 | SG7050VEN | 156.254000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001000 | SG7050VEN | 156.253906MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001100 | SG7050VEN | 125.003125MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001200 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 105 °C |
| X1G005331001300 | SG7050VEN | 130.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001400 | SG7050VEN | 80.000000MHz | 5070石英晶振 | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001500 | SG7050VEN | 125.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001600 | SG7050VEN | 60.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331100100 | SG7050VEN | 100.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100200 | SG7050VEN | 125.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100300 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100400 | SG7050VEN | 50.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100500 | SG7050VEN | 114.426000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 105 °C |
| X1G005331100600 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100700 | SG7050VEN | 50.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
                        X1G005561000200
|
SG7050VEN | 312.500000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005561000300 | SG7050VEN | 250.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
