爱普生LV-PECL高精度晶振,X1G005221004200,SG3225EEN,以太网6G晶振
频率：163.387607MHz
尺寸：3.2x2.5mm
爱普生LV-PECL高精度晶振,X1G005221004200,SG3225EEN,以太网6G晶振，日本进口晶振，爱普生晶振SG3225EEN，编码为：X1G005221004200，频率为：163.387607MHz，是一款LV-PECL差分晶体振荡器，小体积晶振尺寸为3.2x2.5mm，六脚贴片晶振，有源晶振，SPXO晶体振荡器，电源电压2.5V，3.3V，差分晶体振荡器能够轻易识别网络信号以及精确的处理双极信号，该产品具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低相位噪声，低电源电压，满足产品低消耗电流的特点。应用于：网络设备（路由器、交换机、光模块等），数据中心，测试和测量设备，工厂自动化，无线网络，蓝牙模块，高速转换器，如ADC和DAC，光纤通信，10G以太网及各种频率控制设备上。

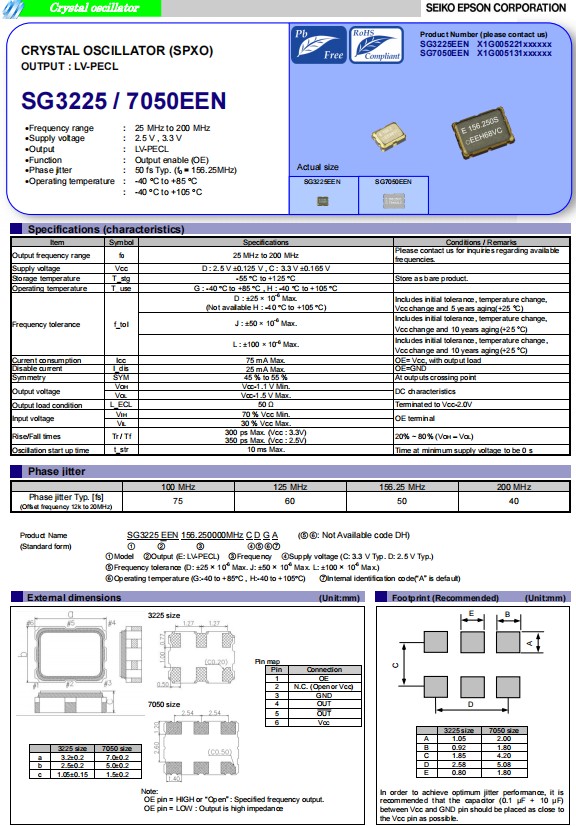

爱普生LV-PECL高精度晶振,X1G005221004200,SG3225EEN,以太网6G晶振 参数表
Item
Symbol
Specifications
Conditions / Remarks
Output frequency range
f0
163.387607MHz
Please contact us for inquiries regarding available frequencies.
Supply voltage
Vcc
D : 2.5 V ±0.125 V , C : 3.3 V ±0.165 V
Storage temperature
T_stg
-55℃ to +125℃
Store as bare product.
Operating temperature
T_use
G : -40℃ to +85℃ , H : -40℃ to +105℃
Frequency tolerance
f_tol
D : ±25 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 5 years aging(+25℃)
(Not available H : -40℃ to +105℃)
J : ±50 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25℃)
L : ±100 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25℃)
Current consumption
Icc
75 mA Max.
OE= Vcc, with output load
Disable current
I_dis
25 mA Max.
OE=GND
Symmetry
SYM
45 % to 55 %
At outputs crossing point
Output voltage
VOH
Vcc-1.1 V Min.
DC characteristics
VOL
Vcc-1.5 V Max.
Output load condition
L_ECL
50 Ω
Terminated to Vcc-2.0V
Input voltage
VIH
70 % Vcc Min.
OE terminal
VIL
30 % Vcc Max.
Rise/Fall times
Tr / Tf
300 ps Max. (Vcc : 3.3V) 350 ps Max. (Vcc : 2.5V)
20% ~ 80% (VOH – VOL)
Oscillation start up time
t_str
10 ms Max.
Time at minimum supply voltage to be 0 s
爱普生LV-PECL高精度晶振,X1G005221004200,SG3225EEN,以太网6G晶振 尺寸图
爱普生LV-PECL高精度晶振,X1G005221004200,SG3225EEN,以太网6G晶振
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,爱普生差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性。
| 晶振编码 |
 型号
|
 频率
|
 尺寸
|
 输出波
|
 电源电压
|
 工作温度
|
| X1G005221000100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000300 | SG3225EEN | 125.003125MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000400 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000700 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001300 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001400 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001800 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001900 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002100 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221002300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002400 | SG3225EEN | 166.015625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003000 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003100 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003200 | SG3225EEN | 160.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003300 | SG3225EEN | 200.000000MHz | 3225mm贴片晶振 | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003400 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003600 | SG3225EEN | 54.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003700 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003800 | SG3225EEN | 25.000625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003900 | SG3225EEN | 170.016000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004200 | SG3225EEN | 163.387607MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221004400 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005400 | SG3225EEN | 146.370000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005500 | SG3225EEN | 150.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005600 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221100100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100300 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 105°C |
| X1G005221100700 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100800 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221101000 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
