X1G0042710008,SG5032EAN差分晶振,EPSON以太网6G晶振
频率:212.500000 MHz
尺寸:5.0x3.2x1.2mm
X1G0042710008,SG5032EAN差分晶振,EPSON以太网6G晶振,日本EPSON爱普生株式会社,进口晶振型号:SG5032EAN,编码为:X1G0042710008,频率为:212.500000 MHz,小体积晶振尺寸:5.0x3.2x1.2mm,六脚贴片晶振,LV-PECL输出差分晶体振荡器,SPXO晶体振荡器,有源晶振,具有超小型,轻薄型,低抖动,低功耗,低耗能,低相位噪声,低电平,低电源电压等特点,能够轻易识别网络信号以及精确的处理双极信号。应用于:通讯设备晶振、无线网络,蓝牙模块,物联网,机顶盒、光端机、安防设备、6G路由器,交换机、仪器仪表、光纤通信,GPS全球定位系统,寻呼机,移动电话等应用。
X1G0042710008,SG5032EAN差分晶振,EPSON以太网6G晶振 参数表
Item
Symbol
Specifications
Condition/Remarks
LV-PECL
LVDS
SG3225EAN
SG3225VAN
SG5032EAN
SG5032VAN
SG7050EAN
SG7050VAN
Output frequency range
f0
73.5 MHz to 700 MHz
Please contact us about available frequencies.
Supply voltage
VCC
K : 2.5 V to 3.3 V
VCC = ±10 %
Storage temperature
T_stg
-40 °C to +125 °C
Store as bare product.
Operating temperature
T_use
B : -20 °C to +70 °C
G : -40 °C to +85 °C
Frequency tolerance
f_tol
C : ±20 × 10-6
E : ±30 × 10-6
J : ±50 × 10-6
Current consumption
ICC
65 mA Max.
30 mA Max.
OE = VCC
L_ECL = 50 Ω or L_LVDS = 100 Ω
f0 = 700 MHz
Disable current
I_dis
20 mA Max.
OE = GND
Symmetry
SYM
45 % to 55 %
At outputs crossing point
Output voltage
VOH
VCC - 1.0 V to VCC - 0.8 V
-
DC characteristics
(LV-PECL)
VOL
VCC - 1.78 V to VCC -1.62 V
-
Output voltage
VOD
-
250 mV to 450 mV
VOD1 , VOD2
DC characteristics
(LVDS)
dVOD
-
50 mV Max.
dVOD = | VOD1 - VOD2 |
VOS
-
1.15 V to 1.35 V
VOS1 , VOS2
dVOS
-
150 mV Max.
dVOS = | VOS1 - VOS2 |
Output load condition
L_ECL
50 Ω
-
Terminated to VCC - 2.0 V
(ECL)/(LVDS)
L_LVDS
-
100 Ω
Connected between OUT to OUT
Input voltage
VIH
70 % VCC Min.
OE terminal
VIL
30 % VCC Max.
Rise time / Fall time
tr/tf
350 ps Max.
-
Between 20 % and 80 % of ( VOH - VOL )
-
300 ps Max.
Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time
t_str
3ms Max.
Time at minimum supply voltage to be 0 s
Phase Jitter
tPJ
0.6 ps Max. *1
Offset frequency : 12 kHz to 20 MHz
Frequency aging
f_aging
±5 × 10-6 / year Max.
+25 °C , VCC = 2.5 V or 3.3 V
First year.

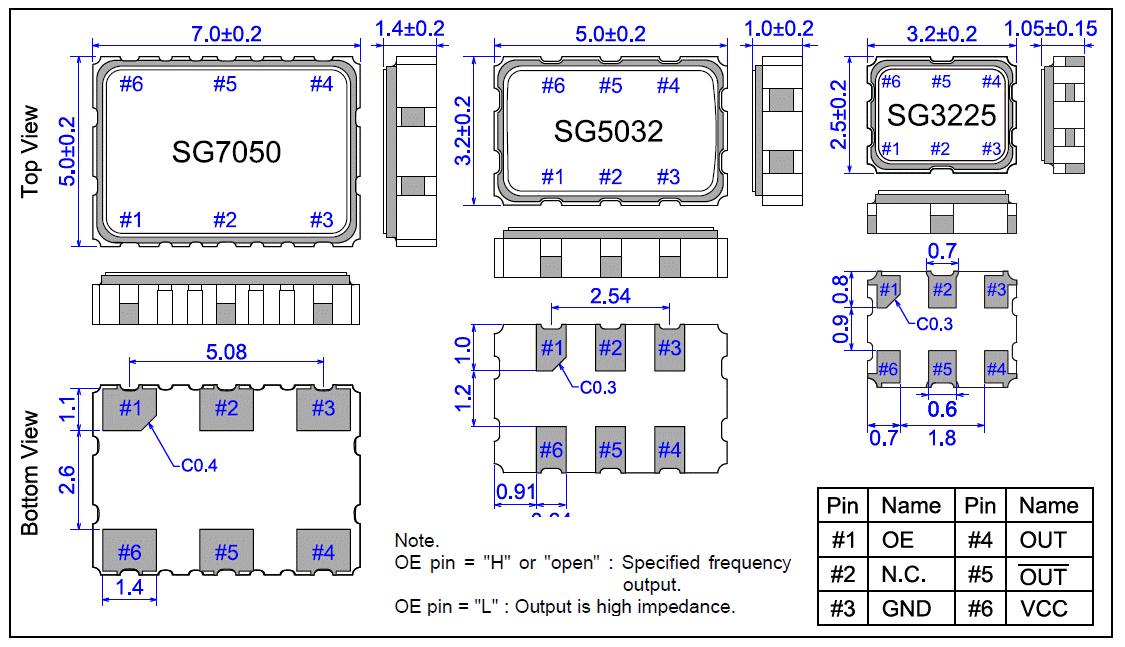

X1G0042710008,SG5032EAN差分晶振,EPSON以太网6G晶振 尺寸图
X1G0042710008,SG5032EAN差分晶振,EPSON以太网6G晶振
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,爱普生差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性。
石英晶振 | 型号 | 频率 | 尺寸 | 输出方式 | 电源电压 | 工作温度 |
X1G0042710001 | SG5032EAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710002 | SG5032EAN | 125.006250 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710004 | SG5032EAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710005 | SG5032EAN | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710006 | SG5032EAN | 400.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710007 | SG5032EAN | 106.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710008 | SG5032EAN | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710009 | SG5032EAN | 74.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710010 | SG5032EAN | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710011 | SG5032EAN | 75.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710012 | SG5032EAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710013 | SG5032EAN | 155.520000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710014 | SG5032EAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710015 | SG5032EAN | 312.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710016 | SG5032EAN | 312.515625 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710017 | SG5032EAN | 161.132800 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710019 | SG5032EAN | 700.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710020 | SG5032EAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710021 | SG5032EAN | 125.006250 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710023 | SG5032EAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710024 | SG5032EAN | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710025 | SG5032EAN | 400.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710026 | SG5032EAN | 106.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710027 | SG5032EAN | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710028 | SG5032EAN | 74.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710029 | SG5032EAN | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710030 | SG5032EAN | 75.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710031 | SG5032EAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710032 | SG5032EAN | 155.520000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710033 | SG5032EAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710034 | SG5032EAN | 312.500000 MHz | 5032贴片晶振 | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710035 | SG5032EAN | 312.515625 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710036 | SG5032EAN | 161.132800 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710038 | SG5032EAN | 700.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710039 | SG5032EAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710040 | SG5032EAN | 125.006250 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710042 | SG5032EAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710043 | SG5032EAN | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710044 | SG5032EAN | 400.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710045 | SG5032EAN | 106.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710046 | SG5032EAN | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710047 | SG5032EAN | 74.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710048 | SG5032EAN | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710049 | SG5032EAN | 75.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710050 | SG5032EAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710052 | SG5032EAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710053 | SG5032EAN | 312.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710054 | SG5032EAN | 312.515625 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710055 | SG5032EAN | 161.132800 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710058 | SG5032EAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710059 | SG5032EAN | 125.006250 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710061 | SG5032EAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710062 | SG5032EAN | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710063 | SG5032EAN | 400.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710064 | SG5032EAN | 106.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710065 | SG5032EAN | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710066 | SG5032EAN | 74.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710067 | SG5032EAN | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710068 | SG5032EAN | 75.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710069 | SG5032EAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710071 | SG5032EAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710072 | SG5032EAN | 312.500000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710073 | SG5032EAN | 312.515625 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710074 | SG5032EAN | 161.132800 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710079 | SG5032EAN | 50.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710080 | SG5032EAN | 68.750000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710083 | SG5032EAN | 50.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710084 | SG5032EAN | 68.750000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710087 | SG5032EAN | 50.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710088 | SG5032EAN | 68.750000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710091 | SG5032EAN | 50.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710092 | SG5032EAN | 68.750000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710102 | SG5032EAN | 669.325580 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710107 | SG5032EAN | 114.285000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710108 | SG5032EAN | 114.285000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710109 | SG5032EAN | 250.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710110 | SG5032EAN | 350.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710111 | SG5032EAN | 80.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710112 | SG5032EAN | 98.304000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
X1G0042710113 | SG5032EAN | 161.132812 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
X1G0042710115 | SG5032EAN | 133.330000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
