SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振
频率：16MHz
尺寸：5.0x3.2mm
SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振，日本电波株式会社NDK晶振，型号NX5032GA，产品编码为：NX5032GA-16MHZ-STD-CSK-8，是一款小体积晶振尺寸5.0x3.2x1.3mm 两脚贴片晶振，石英晶体谐振器，无源晶振，石英晶振，无铅环保晶振，频率：16.000MHz，工作温度范围：−40℃至+85℃，具超小型，轻薄型，优异的环境阻力性能，耐热性和耐冲击性，回流温度分布（可用于无铅焊接），即使在极端恶劣的环境条件下也能保持稳定的启动特性，符合AEC-Q200。石英晶体适用于汽车配件，车载导航晶振，消费电子产品晶振设备，参考时钟来源的视频和音频设备应用。

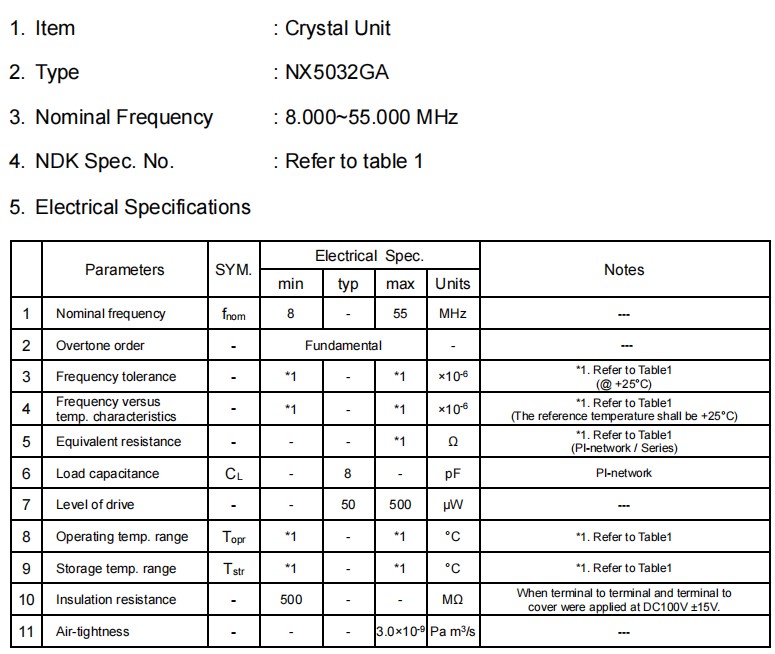

SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振，参数表
Item
Model
NX5032GA
Nominal Frequency
8 to 10.5 MHz
10.5 to 50 MHz
8 to 10.5 MHz
10.5 to 50 MHz
50 to 55 MHz
Overtone Order
Fundamental
Frequency Tolerance (25 ±3 °C)
±30 × 10−6
±20 × 10−6
Frequency versus Temperature Characteristics (with reference to +25 °C)
±50 × 10−6
±30 × 10−6
Operating Temperature Range
−40 to +85 °C
−10 to +70 °C
Storage Temperature Range
−40 to +125 °C
−40 to +85 °C
Equivalent Series Resistance
Refer to *1
Refer to *2
Level of Drive
50 μW (Max. 500 μW)
Load Capacitance
8 pF
Specifications Number
STD-CSK-7
STD-CSK-8
STD-CSK-3
STD-CSK-4
STD-CKW3

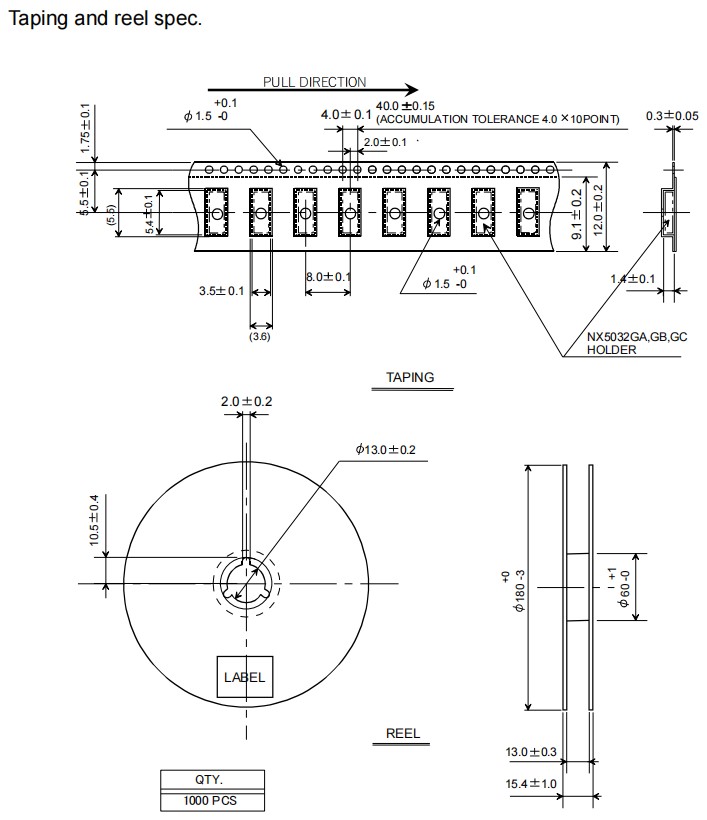

SMD,NX5032GA-16MHZ-STD-CSK-8,16MHz,±50ppm,8pF,车载导航晶振，尺寸图
| 进口石英晶振 | 品牌 | 型号 | 频率 | 频率稳定度 | 包装/封装 |
| NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 24MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-25.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 25MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 27MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-16.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 16MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-10.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 10MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-12.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 12MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-48.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 48MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-16.384000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 16.384MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 20MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 32MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | 27MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-12.288M-STD-CSK-4 | NDK晶振 | NX5032GA | 12.288MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-14.31818M-STD-CSK-4 | NDK晶振 | NX5032GA | 14.31818MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-25.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 25MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-12MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | 12MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-10.000M-STD-CSU-1 | NDK晶振 | NX5032GA | 10MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 20MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA-12.000M-STD-CSU-2 | NDK晶振 | 5032晶振 | 12MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 20MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-13.56M-STD-CSK-4 | NDK晶振 | NX5032GA | 13.56MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-12.288000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 12.288MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-16MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | 16MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-16MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | 16MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA- 9.84375M-STD-CSU-1 | NDK晶振 | NX5032GA | 9.84375MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA-10.000M-STD-CSK-3 | NDK晶振 | NX5032GA | 10MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-30.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 30MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-40.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 40MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-12MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | 12MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-16.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 16MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA-8.000M-STD-CSU-1 | NDK晶振 | NX5032GA | 8MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA-13.560000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 13.56MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-11.0592M-STD-CSK-4 | NDK晶振 | NX5032GA | 11.0592MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-30.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 30MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-24.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 24MHz | ±30ppm | 2-SMD, No Lead |
| NX5032GA-40.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 40MHz | ±150ppm | 2-SMD, No Lead |
| NX5032GA -13.56M-STD-CSU-2 | NDK晶振 | NX5032GA | 13.56MHz | ±150ppm | 2-SMD, No Lead |
