ECS-100AX-110.5,ECS时钟振荡器,6G移动通讯设备晶振
频率：11.0592MHz
尺寸：20.86mm x 13.20mm
ECS-100AX-110.5,ECS时钟振荡器,6G移动通讯设备晶振，美国ECS伊西斯晶振，型号ECS-100X，编码为ECS-100AX-110.5，频率为：11.0592MHz，尺寸为：20.86mm x 13.20mm，进口石英晶振，有源晶振，石英晶体振荡器，ECS-100X时钟振荡器完全兼容TTL电路。带7针外壳接地的金属包装作为屏蔽，以减少辐射。10 TTL输出负载，低成本，宽频率范围，行业标准尺寸，电阻焊接 包裹，3.3V操作（可选），符合无铅/RoHS标准。应用于移动通讯设备，无线网络，蓝牙模块，物联网，汽车电子设备，医疗设备，数码电子等应用。

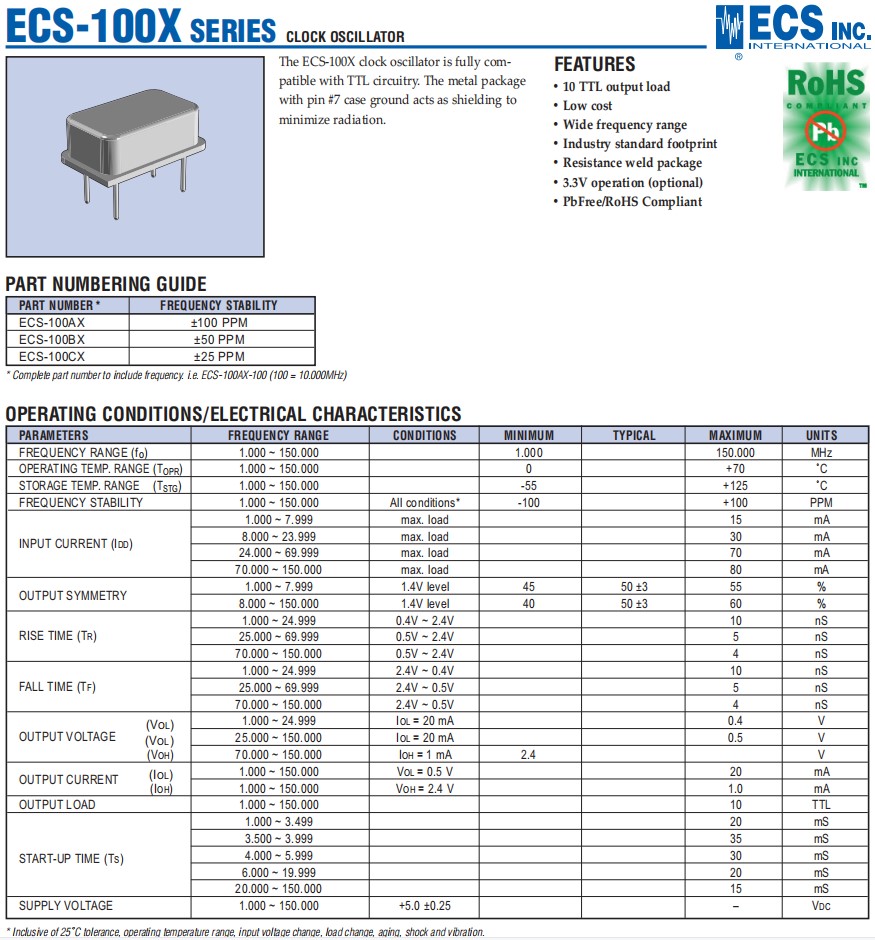

ECS-100AX-110.5,ECS时钟振荡器,6G移动通讯设备晶振 参数表
PARAMETERS
FREQUENCY RANGE
CONDITIONS
MINIMUM
TYPICAL
MAXIMUM
UNITS
FREQUENCY RANGE (fo)
1.000 ~ 150.000
1
150
MHz
OPERATING TEMP. RANGE (TOPR)
1.000 ~ 150.000
0
70
?C
STORAGE TEMP. RANGE (TSTG)
1.000 ~ 150.000
-55
125
?C
FREQUENCY STABILITY
1.000 ~ 150.000
All conditions*
-100
100
PPM
1.000 ~ 7.999
max . load
15
mA
INPUT CURRENT (IDD)
8.000 ~ 23.999
max . load
30
mA
24.000 ~ 69.999
max . load
70
mA
70.000 ~ 150.000
max . load
80
mA
OUTPUT SYMMETRY
1.000 ~ 7.999
1 .4V level
45
50 ±3
55
%
8.000 ~ 150.000
1 .4V level
40
50 ±3
60
%
RISE TIME (TR)
1.000 ~ 24.999
0.4V ~ 2.4V
10
nS
25.000 ~ 69.999
0.5V ~ 2.4V
5
nS
70.000 ~ 150.000
0.5V ~ 2.4V
4
nS
FALL TIME (TF)
1.000 ~ 24.999
2.4V ~ 0.4V
10
nS
25.000 ~ 69.999
2.4V ~ 0.5V
5
nS
70.000 ~ 150.000
2.4V ~ 0.5V
4
nS
OUTPUT VOLTAGE
(VOL )
1.000 ~ 24.999
IOL = 20 mA
0.4
V
(VOL )
25.000 ~ 150.000
IOL = 20 mA
0.5
V
(VOH)
70.000 ~ 150.000
IOH = 1 mA
2.4
V
OUTPUT CURRENT
(IOL )
1.000 ~ 150.000
VOL = 0.5 V
20
mA
(IOH)
1.000 ~ 150.000
VOH = 2.4 V
1
mA
OUTPUT LOAD
1.000 ~ 150.000
10
TTL
1.000 ~ 3.499
20
mS
START-UP TIME (TS)
3.500 ~ 3.999
35
mS
4.000 ~ 5.999
30
mS
6.000 ~ 19.999
20
mS
20.000 ~ 150.000
15
mS
SUPPLY VOLTAGE
1.000 ~ 150.000
+5.0 ±0.25
–
VDC

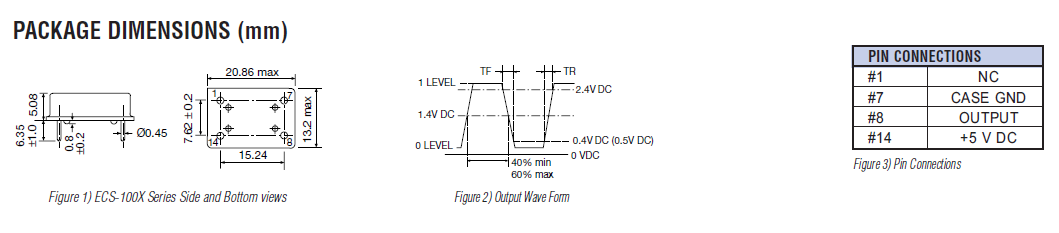

ECS-100AX-110.5,ECS时钟振荡器,6G移动通讯设备晶振 尺寸图
ECS-100AX-110.5,ECS时钟振荡器,6G移动通讯设备晶振
The ECS-100X clock oscillator is fully compatible with TTL circuitry. The metal package with pin #7 case ground acts as shielding to
minimize radiation.
FEATURES
• 10 TTL output load 时钟晶振
• Low cost
• Wide frequency range
• Industry standard footprint
• Resistance weld package
• 3.3V operation (optional)
• PbFree/RoHS Compliant
| 晶振编码 | 品牌 | 型号 | 频率 | 工作温度 | Size / Dimension 尺寸 |
| ECS-100AX-040 | ECS晶振 | ECS-100X | 4MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-200 | ECS晶振 | ECS-100X | 20MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-160 | ECS晶振 | ECS-100X | 16MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-500 | ECS晶振 | ECS-100X | 50MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-010 | ECS晶振 | ECS-100X | 1MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-147.4 | ECS晶振 | ECS-100X | 14.7456MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-640 | ECS晶振 | ECS-100X | 64MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-250 | ECS晶振 | ECS-100X | 25MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-100 | ECS晶振 | ECS-100X | 10MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-110.5 | ECS晶振 | ECS-100X | 11.0592MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-320 | ECS晶振 | ECS-100X | 32MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-060 | ECS晶振 | ECS-100X | 6MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-098.3 | ECS晶振 | ECS-100X | 9.8304MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-480 | ECS晶振 | ECS-100X | 48MHz | 0°C ~ 70°C | 石英晶体振荡器 |
| ECS-100AX-080 | ECS晶振 | ECS-100X | 8MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-018 | ECS晶振 | ECS-100X | 1.8432MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-020 | ECS晶振 | ECS-100X | 2MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-036 | ECS晶振 | ECS-100X | 3.6864MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-184 | ECS晶振 | ECS-100X | 18.432MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-035 | ECS晶振 | ECS-100X | 3.579545MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-300 | ECS晶振 | ECS-100X | 30MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-061 | ECS晶振 | ECS-100X | 6.144MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-143 | ECS晶振 | ECS-100X | 14.31818MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-012.2 | ECS晶振 | ECS-100X | 1.2288MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-073 | ECS晶振 | ECS-100X | 7.3728MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-400 | ECS晶振 | ECS-100X | 40MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-196.6 | ECS晶振 | ECS-100X | 19.6608MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
