Ecliptek日蚀无源晶体,EA5070NA18-8.000M-TR,6G蓝牙WIFI晶振

频率：8MHZ

尺寸：7.0x5.0mm

Ecliptek日蚀无源晶体,EA5070NA18-8.000M-TR,6G蓝牙WIFI晶振，尺寸7.0x5.0mm，频率8MHZ，欧美进口晶振，美国日蚀晶振，四脚贴片晶振，7050mm无源晶振，无源SMD晶振，SMD晶体谐振器，石英晶振，SMD晶振，石英晶体谐振器，石英贴片晶振，6G蓝牙WIFI应用晶振，娱乐设备晶振，便携式设备晶振，影音系统专用晶振，智能家居晶振，以太网晶振，低损耗石英晶振，低功耗石英晶体，轻薄型晶振，无铅晶振，高品质晶振，8MHZ石英晶振。

石英晶体产品可满足不同应用程序的需求，比较适合用于蓝牙WIFI应用，智能家居，小型设备，便携式设备，娱乐设备等领域.Ecliptek日蚀无源晶体,EA5070NA18-8.000M-TR,6G蓝牙WIFI晶振.

订购热线：0755-2783-7683

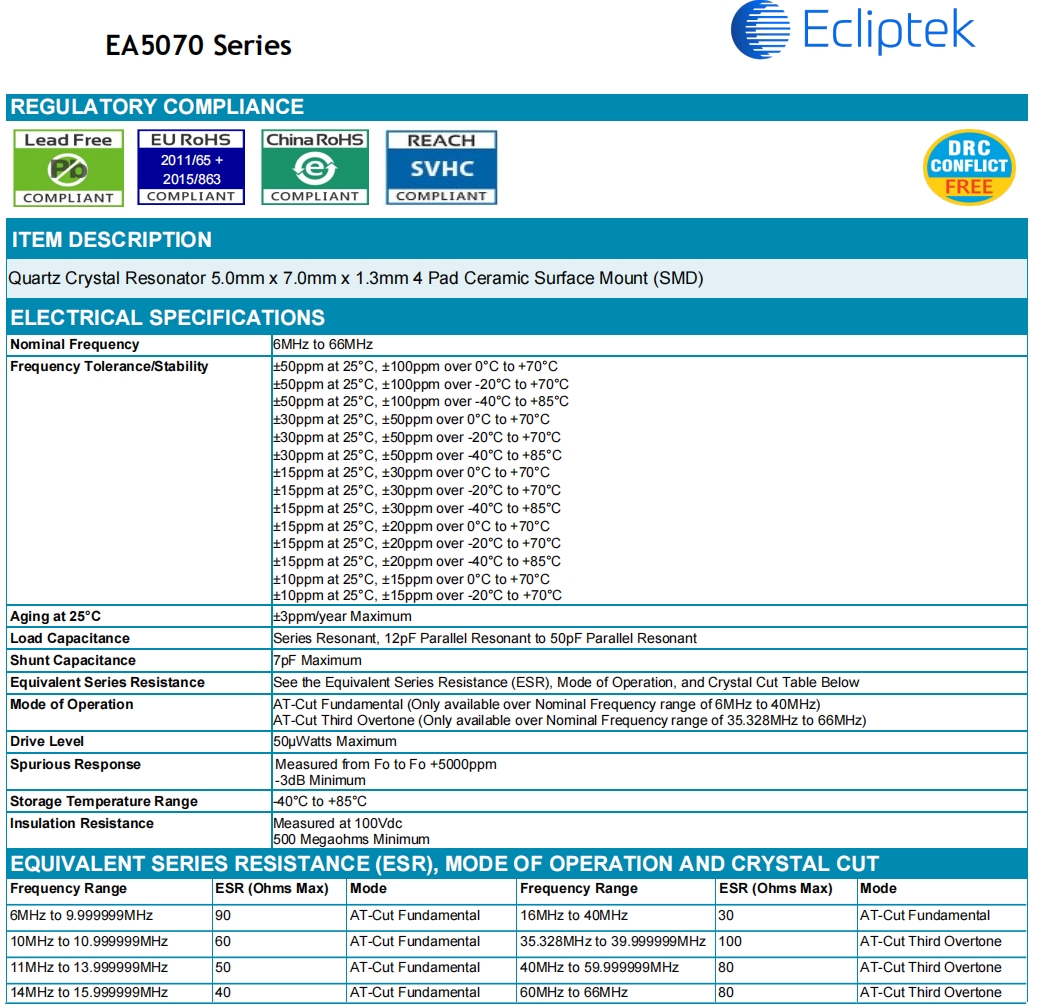

Ecliptek日蚀无源晶体,EA5070NA18-8.000M-TR,6G蓝牙WIFI晶振 参数表

ELECTRICAL SPECIFICATIONS

Nominal Frequency

8MHz

Frequency Tolerance/Stability

±50ppm at 25°C, ±100ppm over 0°C to +70°C
±50ppm at 25°C, ±100ppm over -20°C to +70°C
±50ppm at 25°C, ±100ppm over -40°C to +85°C
±30ppm at 25°C, ±50ppm over 0°C to +70°C
±30ppm at 25°C, ±50ppm over -20°C to +70°C
±30ppm at 25°C, ±50ppm over -40°C to +85°C
±15ppm at 25°C, ±30ppm over 0°C to +70°C
±15ppm at 25°C, ±30ppm over -20°C to +70°C
±15ppm at 25°C, ±30ppm over -40°C to +85°C
±15ppm at 25°C, ±20ppm over 0°C to +70°C
±15ppm at 25°C, ±20ppm over -20°C to +70°C
±15ppm at 25°C, ±20ppm over -40°C to +85°C
±10ppm at 25°C, ±15ppm over 0°C to +70°C
±10ppm at 25°C, ±15ppm over -20°C to +70°C

Aging at 25°C

±3ppm/year Maximum

Load Capacitance

Series Resonant, 12pF Parallel Resonant to 50pF Parallel Resonant

Shunt Capacitance

7pF Maximum

Equivalent Series Resistance

See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below

Mode of Operation

AT-Cut Fundamental (Only available over Nominal Frequency range of 6MHz to 40MHz)
AT-Cut Third Overtone (Only available over Nominal Frequency range of 35.328MHz to 66MHz)

Drive Level

50µWatts Maximum

Spurious Response

Measured from Fo to Fo +5000ppm
-3dB Minimum

Storage Temperature Range

-40°C to +85°C

Insulation Resistance

Measured at 100Vdc
500 Megaohms Minimum

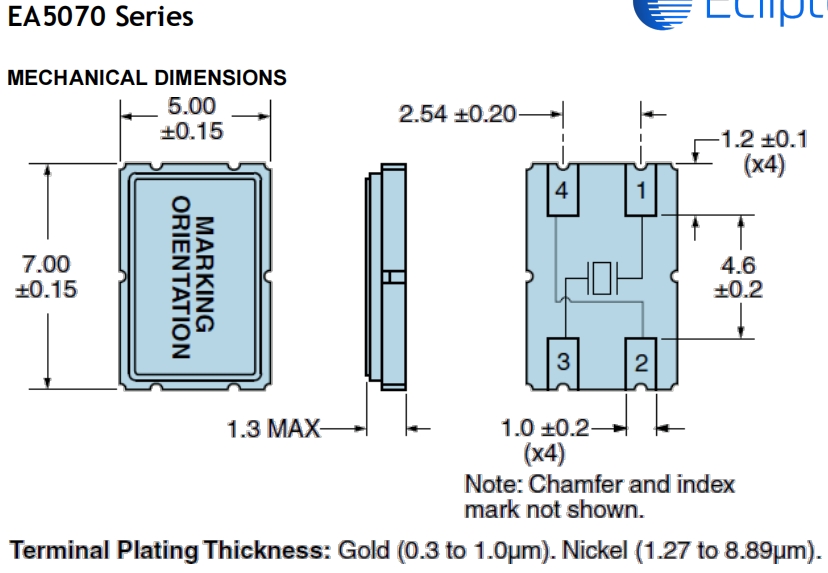

Ecliptek日蚀无源晶体,EA5070NA18-8.000M-TR,6G蓝牙WIFI晶振 尺寸图

Ecliptek日蚀无源晶体,EA5070NA18-8.000M-TR,6G蓝牙WIFI晶振

产品特性：

石英晶体谐振器5.0mm x 7.0mm x 1.3mm 4垫陶瓷表面安装（SMD）

频率范围：6~66MHZ

符合RoHS无铅

非常低的老化

制造商零件编号	供应商	描述	工作温度
E1WSDA12-32.768K TR	Ecliptek晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	-10°C ~ 60°C
EA2025JA18-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 18PF SMD	-40°C ~ 85°C
EA2025JA10-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 10PF SMD	-40°C ~ 85°C
EB3250JA12-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 12PF SMD	-40°C ~ 85°C
EB3250AYA08-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 8PF SMD	-40°C ~ 125°C
EB3250YA12-12.000M TR	Ecliptek晶振	CRYSTAL 12.0000MHZ 12PF SMD	-40°C ~ 125°C
EB3250AYA08-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 8PF SMD	-40°C ~ 125°C
E1SJA18-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 18PF SMD	-40°C ~ 85°C
EA2532LA18-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 18PF SMD	-40°C ~ 85°C
EA2532UA12-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 12PF SMD	-40°C ~ 85°C
EB2532JA12-30.000M TR	Ecliptek晶振	CRYSTAL 30.0000MHZ 12PF SMD	-40°C ~ 85°C
EB2532JA12-18.432M TR	Ecliptek晶振	CRYSTAL 18.4320MHZ 12PF SMD	-40°C ~ 85°C
EB2532YA12-18.432M TR	Ecliptek晶振	CRYSTAL 18.4320MHZ 12PF SMD	-40°C ~ 125°C
EB1216JA10-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 10PF SMD	-40°C ~ 85°C
EB1216JA10-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 10PF SMD	-40°C ~ 85°C
EB3250JA12-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 12PF SMD	-40°C ~ 85°C
EB3250YA12-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 12PF SMD	-40°C ~ 125°C
EB3250YA12-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 12PF SMD	-40°C ~ 125°C
EB3250YA12-24.000M TR	ECLIPTEK晶振	CRYSTAL 24.0000MHZ 12PF SMD	-40°C ~ 125°C
E3WSDC12-32.768K TR	Ecliptek晶振	CRYSTAL 32.7680KHZ 12PF SMD	-40°C ~ 85°C
E1SBA18-3.6864M TR	Ecliptek晶振	CRYSTALS 3.6864MHZ 50PPM 18PF PA	-
E1SBA18-7.3728M TR	Ecliptek晶振	CRYSTALS 7.3728MHZ 50PPM 18PF PA	-
E1SBA18-8.000M TR	Ecliptek晶振	CRYSTALS 8.000MHZ 50PPM 18PF PAR	-
E1SHA18-11.0592M TR	Ecliptek晶振	CRYSTALS 11.0592MHZ 15PPM 18PF P	-
E1SCA18-3.6864M TR	Ecliptek晶振	CRYSTALS 3.6864MHZ 50PPM 18PF PA	-
E1SFA18-8.000M TR	Ecliptek晶振	CRYSTALS 8.000MHZ 30PPM 18PF PAR	-
E1SHA18-7.3728M TR	Ecliptek晶振	CRYSTALS 7.3728MHZ 15PPM 18PF PA	-
E1SFA18-14.31818M TR	Ecliptek晶振	CRYSTALS 14.31818MHZ 30PPM 18PF	-
E1SCA18-16.000M TR	Ecliptek晶振	CRYSTALS 16.000MHZ 50PPM 18PF PA	-
E1SCA18-14.7456M TR	Ecliptek晶振	CRYSTALS 14.7456MHZ 50PPM 18PF P	-
E1SHA18-12.000M TR	Ecliptek晶振	CRYSTALS 12.000MHZ 15PPM 18PF PA	-
E1SFA18-20.000M TR	Ecliptek晶振	CRYSTALS 20.000MHZ 30PPM 18PF PA	-
E1SHA18-16.000M TR	Ecliptek晶振	CRYSTALS 16.000MHZ 15PPM 18PF PA	-
E1SCA18-20.000M TR	Ecliptek晶振	CRYSTALS 20.000MHZ 50PPM 18PF PA	-
E1SFA18-7.3728M TR	Ecliptek晶振	CRYSTALS 7.3728MHZ 30PPM 18PF PA	-
E1SEA18-24.576M TR	Ecliptek晶振	CRYSTALS 24.576MHZ 30PPM 18PF PA	-
E1SHA18-8.000M TR	Ecliptek晶振	CRYSTALS 8.000MHZ 15PPM 18PF PAR	-
E1SJA18-3.6864M TR	Ecliptek晶振	CRYSTAL 3.6864MHZ 18PF SMD	-40°C ~ 85°C
EA3560JA18-25.000M TR	Ecliptek晶振	CRYSTALS 25.000MHZ 15PPM 18PF PA	-
EA2025RA08-25.000M TR	Ecliptek晶振	CRYSTALS 25.000MHZ 10PPM 8PF PAR	-
EA3250MA18-24.000M TR	Ecliptek晶振	CRYSTALS 24.000MHZ 15PPM 18PF PA	-
EA3250JA18-12.000M TR	Ecliptek晶振	CRYSTALS 12.000MHZ 15PPM 18PF PA	-
EA3250HA18-16.000M TR	Ecliptek晶振	CRYSTALS 16.000MHZ 15PPM 18PF PA	-
EA3250JA12-16.000M TR	Ecliptek晶振	CRYSTALS 16.000MHZ 15PPM 12PF PA	-
EA3250JA18-25.000M TR	Ecliptek晶振	CRYSTALS 25.000MHZ 15PPM 18PF PA	-
EA3250QA10-8.000M TR	Ecliptek晶振	CRYSTALS 8.000MHZ 10PPM 10PF PAR	-
EA3250MA18-25.000M TR	Ecliptek晶振	CRYSTALS 25.000MHZ 15PPM 18PF PA	-
EA5070JA20-6.000M TR	Ecliptek晶振	CRYSTALS 6.000MHZ 15PPM 20PF PAR	-
EA5070PA20-6.000MTR	Ecliptek晶振	QUARTZ CRYSTAL RESONATOR	-
EA5070PA18-25.000M TR	Ecliptek晶振	CRYSTALS 25.000MHZ 10PPM 18PF PA	-
E8WSDC09-32.768K TR	Ecliptek晶振	CRYSTAL, SMD WATCH CRYSTAL, 3.2X	-
E1SJA18-24.576M TR	Ecliptek晶振	CRYSTAL 24.5760MHZ 18PF SMD	-40°C ~ 85°C
E1SJA18-27.000M TR	Ecliptek晶振	CRYSTAL 27.0000MHZ 18PF SMD	-40°C ~ 85°C
E1SEA18-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 18PF SMD	-20°C ~ 70°C
E1SJA18-30.000M TR	Ecliptek晶振	CRYSTAL 30.0000MHZ 18PF SMD	-40°C ~ 85°C
E1SJA18-10.240M TR	Ecliptek晶振	CRYSTAL 10.2400MHZ 18PF SMD	-40°C ~ 85°C
