EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器
频率：44MHZ
尺寸：1.6x1.2mm
EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器，尺寸1.2mmx1.6mmx0.40mm，频率44MHZ，美国日蚀晶体，欧美进口晶振，石英晶体谐振器，石英贴片晶振，四脚贴片晶振，水晶振动子，无源贴片晶振，SMD晶振，无源晶振，轻薄型晶振，无铅环保晶振，1612mm贴片晶振，6G室内基站晶振，小型设备晶振，多媒体设备晶振，数字视频专用晶振，仪器设备晶振，蓝牙晶振，低耗能晶振，低成本晶振，低老化晶振，高质量晶振，具有高质量低成本的特点。
石英晶振通过合理的真空退火技术可提高晶振主要参数的稳定性,以及提高石英晶振的年老化特性，该器件很适合用于数字视频，多媒体设备，仪器设备，小型设备，6G室内基站等领域。EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器.
EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器，尺寸1.2mmx1.6mmx0.40mm，频率44MHZ，美国日蚀晶体，欧美进口晶振，石英晶体谐振器，石英贴片晶振，四脚贴片晶振，水晶振动子，无源贴片晶振，SMD晶振，无源晶振，轻薄型晶振，无铅环保晶振，1612mm贴片晶振，6G室内基站晶振，小型设备晶振，多媒体设备晶振，数字视频专用晶振，仪器设备晶振，蓝牙晶振，低耗能晶振，低成本晶振，低老化晶振，高质量晶振，具有高质量低成本的特点。
石英晶振通过合理的真空退火技术可提高晶振主要参数的稳定性,以及提高石英晶振的年老化特性，该器件很适合用于数字视频，多媒体设备，仪器设备，小型设备，6G室内基站等领域。EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器.

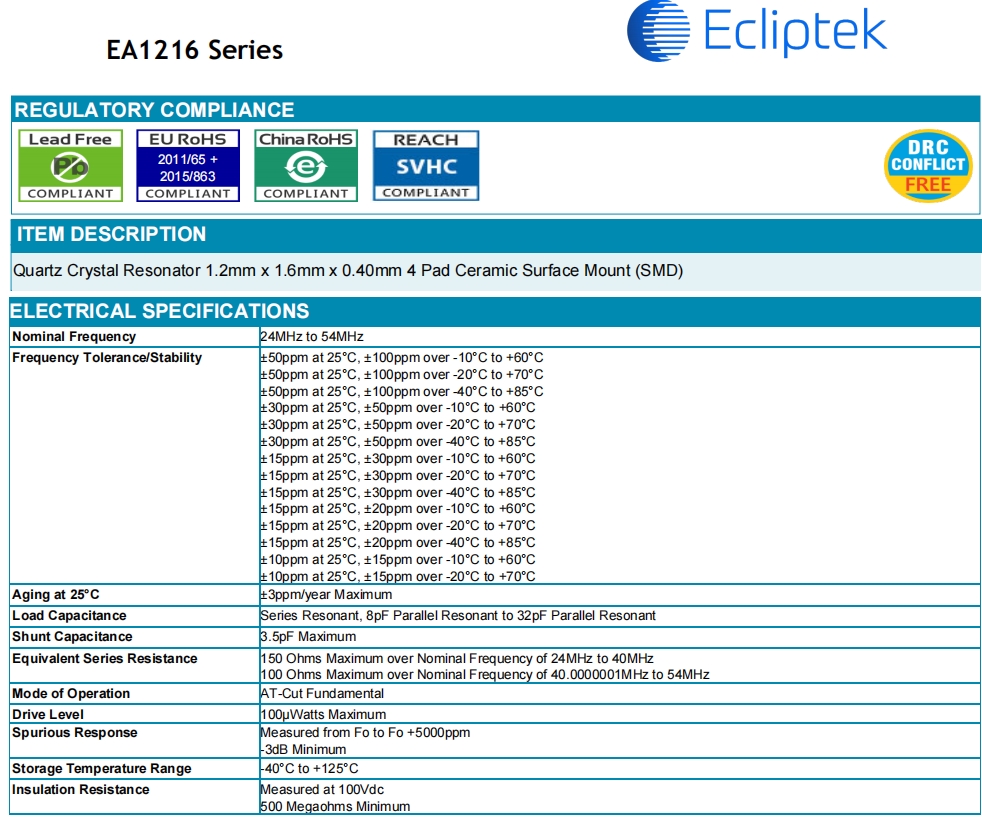

EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器 参数表
ELECTRICAL SPECIFICATIONS
Nominal Frequency
44MHz
Frequency Tolerance/Stability
±50ppm at 25°C, ±100ppm over -10°C to +60°C
±50ppm at 25°C, ±100ppm over -20°C to +70°C
±50ppm at 25°C, ±100ppm over -40°C to +85°C
±30ppm at 25°C, ±50ppm over -10°C to +60°C
±30ppm at 25°C, ±50ppm over -20°C to +70°C
±30ppm at 25°C, ±50ppm over -40°C to +85°C
±15ppm at 25°C, ±30ppm over -10°C to +60°C
±15ppm at 25°C, ±30ppm over -20°C to +70°C
±15ppm at 25°C, ±30ppm over -40°C to +85°C
±15ppm at 25°C, ±20ppm over -10°C to +60°C
±15ppm at 25°C, ±20ppm over -20°C to +70°C
±15ppm at 25°C, ±20ppm over -40°C to +85°C
±10ppm at 25°C, ±15ppm over -10°C to +60°C
±10ppm at 25°C, ±15ppm over -20°C to +70°C
Aging at 25°C
±3ppm/year Maximum
Load Capacitance
Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant
Shunt Capacitance
3.5pF Maximum
Equivalent Series Resistance
150 Ohms Maximum over Nominal Frequency of 24MHz to 40MHz
100 Ohms Maximum over Nominal Frequency of 40.0000001MHz to 54MHz
Mode of Operation
AT-Cut Fundamental
Drive Level
100µWatts Maximum
Spurious Response
Measured from Fo to Fo +5000ppm
-3dB Minimum
Storage Temperature Range
-40°C to +125°C
Insulation Resistance
Measured at 100Vdc
500 Megaohms Minimum

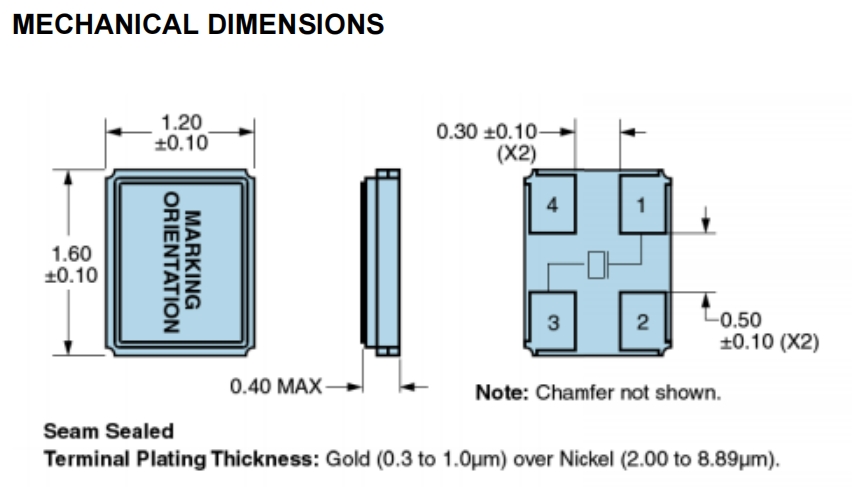

EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器 尺寸图
EA1216NA16-44.000M-TR\6G室内基站晶振\Ecliptek石英谐振器
产品特性：
石英晶体谐振器1.2mm x 1.6mm x 0.40mm 4垫陶瓷表面安装（SMD晶振）
高可靠性能
低老化特性
| 制造商零件编号 | 欧美晶振供应商 | 描述 | 工作温度 |
| E1SEA18-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 18PF SMD | -20°C ~ 70°C |
| E1SJA18-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-11.0592M TR | Ecliptek晶振 | CRYSTAL 11.0592MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-8.000M TR | Ecliptek晶振 | CRYSTAL 8.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-3.579545M TR | Ecliptek晶振 | CRYSTAL 3.579545MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-4.194304M TR | Ecliptek晶振 | CRYSTAL 4.194304MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-16.9344M TR | Ecliptek晶振 | CRYSTAL 16.9344MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-5.000M TR | Ecliptek晶振 | CRYSTAL 5.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-13.500M TR | Ecliptek晶振 | CRYSTAL 13.5000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-9.216M TR | Ecliptek晶振 | CRYSTAL 9.2160MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-12.288M TR | Ecliptek晶振 | CRYSTAL 12.2880MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-4.500M TR | Ecliptek晶振 | CRYSTAL 4.5000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-15.000M TR | Ecliptek晶振 | CRYSTAL 15.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-4.433619M TR | Ecliptek晶振 | CRYSTAL 4.433619MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-16.384M TR | Ecliptek晶振 | CRYSTAL 16.3840MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-6.7458M TR | Ecliptek晶振 | CRYSTAL 6.7458MHZ 18PF SMD | -40°C ~ 85°C |
| E1SJA18-15.360M TR | Ecliptek晶振 | CRYSTAL 15.3600MHZ 18PF SMD | -40°C ~ 85°C |
| E1SDA18-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 0°C ~ 70°C |
| E1SJA18-4.9152M TR | Ecliptek晶振 | CRYSTAL 4.9152MHZ 18PF SMD | -40°C ~ 85°C |
| E1SGA18-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 0°C ~ 70°C |
| EA2532QA18-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532QA18-20.000M TR | Ecliptek晶振 | CRYSTAL 20.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532LA18-30.000M TR | Ecliptek晶振 | CRYSTAL 30.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532QA18-13.560M TR | Ecliptek晶振 | CRYSTAL 13.5600MHZ 18PF SMD | -40°C ~ 85°C |
| EB2532YA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB1216JA10-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB1620JA10-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EA2025JA18-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 18PF SMD | -40°C ~ 85°C |
| E1WSDA12-32.768K TR | Ecliptek晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | -10°C ~ 60°C |
| EA2025JA18-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2025JA10-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB3250JA12-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB3250AYA08-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 8PF SMD | -40°C ~ 125°C |
| EB3250YA12-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB3250AYA08-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 8PF SMD | -40°C ~ 125°C |
| E1SJA18-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532LA18-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 18PF SMD | -40°C ~ 85°C |
| EA2532UA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB2532JA12-30.000M TR | Ecliptek晶振 | CRYSTAL 30.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB2532JA12-18.432M TR | Ecliptek晶振 | CRYSTAL 18.4320MHZ 12PF SMD | -40°C ~ 85°C |
| EB2532YA12-18.432M TR | Ecliptek晶振 | CRYSTAL 18.4320MHZ 12PF SMD | -40°C ~ 125°C |
| EB1216JA10-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB1216JA10-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 10PF SMD | -40°C ~ 85°C |
| EB3250JA12-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 12PF SMD | -40°C ~ 85°C |
| EB3250YA12-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB3250YA12-10.000M TR | Ecliptek晶振 | CRYSTAL 10.0000MHZ 12PF SMD | -40°C ~ 125°C |
| EB3250YA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | -40°C ~ 125°C |
| E3WSDC12-32.768K TR | Ecliptek晶振 | CRYSTAL 32.7680KHZ 12PF SMD | -40°C ~ 85°C |
| E1SBA18-3.6864M TR | Ecliptek晶振 | CRYSTALS 3.6864MHZ 50PPM 18PF PA | - |
| E1SBA18-7.3728M TR | Ecliptek晶振 | CRYSTALS 7.3728MHZ 50PPM 18PF PA | - |
| E1SBA18-8.000M TR | Ecliptek晶振 | CRYSTALS 8.000MHZ 50PPM 18PF PAR | - |
| E1SHA18-11.0592M TR | Ecliptek晶振 | CRYSTALS 11.0592MHZ 15PPM 18PF P | - |
| E1SCA18-3.6864M TR | Ecliptek晶振 | CRYSTALS 3.6864MHZ 50PPM 18PF PA | - |
| E1SFA18-8.000M TR | Ecliptek晶振 | CRYSTALS 8.000MHZ 30PPM 18PF PAR | - |
| E1SHA18-7.3728M TR | Ecliptek晶振 | CRYSTALS 7.3728MHZ 15PPM 18PF PA | - |
| E1SFA18-14.31818M TR | Ecliptek晶振 | CRYSTALS 14.31818MHZ 30PPM 18PF | - |
| E1SCA18-16.000M TR | Ecliptek晶振 | CRYSTALS 16.000MHZ 50PPM 18PF PA | - |
| E1SCA18-14.7456M TR | Ecliptek晶振 | CRYSTALS 14.7456MHZ 50PPM 18PF P | - |
| E1SHA18-12.000M TR | Ecliptek晶振 | CRYSTALS 12.000MHZ 15PPM 18PF PA | - |
| E1SFA18-20.000M TR | Ecliptek晶振 | CRYSTALS 20.000MHZ 30PPM 18PF PA | - |
| E1SHA18-16.000M TR | Ecliptek晶振 | CRYSTALS 16.000MHZ 15PPM 18PF PA | - |
| E1SCA18-20.000M TR | Ecliptek晶振 | CRYSTALS 20.000MHZ 50PPM 18PF PA | - |
| E1SFA18-7.3728M TR | Ecliptek晶振 | CRYSTALS 7.3728MHZ 30PPM 18PF PA | - |
| E1SEA18-24.576M TR | Ecliptek晶振 | CRYSTALS 24.576MHZ 30PPM 18PF PA | - |
| E1SHA18-8.000M TR | 日蚀晶振 | CRYSTALS 8.000MHZ 15PPM 18PF PAR | - |
| E1SJA18-3.6864M TR | Ecliptek晶振 | CRYSTAL 3.6864MHZ 18PF SMD | -40°C ~ 85°C |
| EA3560JA18-25.000M TR | Ecliptek晶振 | CRYSTALS 25.000MHZ 15PPM 18PF PA | - |
| EA2025RA08-25.000M TR | Ecliptek晶振 | CRYSTALS 25.000MHZ 10PPM 8PF PAR | - |
| EA3250MA18-24.000M TR | Ecliptek晶振 | CRYSTALS 24.000MHZ 15PPM 18PF PA | - |
| EA3250JA18-12.000M TR | Ecliptek晶振 | CRYSTALS 12.000MHZ 15PPM 18PF PA | - |
| EA3250HA18-16.000M TR | Ecliptek晶振 | CRYSTALS 16.000MHZ 15PPM 18PF PA | - |
| EA3250JA12-16.000M TR | Ecliptek晶振 | CRYSTALS 16.000MHZ 15PPM 12PF PA | - |
| EA3250JA18-25.000M TR | Ecliptek晶振 | CRYSTALS 25.000MHZ 15PPM 18PF PA | - |
| EA3250QA10-8.000M TR | Ecliptek晶振 | CRYSTALS 8.000MHZ 10PPM 10PF PAR | - |
| EA3250MA18-25.000M TR | Ecliptek晶振 | CRYSTALS 25.000MHZ 15PPM 18PF PA | - |
| EA5070JA20-6.000M TR | Ecliptek晶振 | CRYSTALS 6.000MHZ 15PPM 20PF PAR | - |
| EA5070PA20-6.000MTR | Ecliptek晶振 | QUARTZ CRYSTAL RESONATOR | - |
